How to Specify Commercial Aluminum Windows for Office Buildings

Modern commercial office construction demands strict adherence to complex building codes, aggressive energy requirements, and heavy structural loads. Specifying glazing for these environments means balancing architectural intent with non-negotiable thermal performance mandates, wind load requirements, and strict project budgets. A failure in fenestration selection often leads to catastrophic water infiltration, thermal bridging, or structural deflection under load. Navigating these overlapping constraints requires a rigorous, field-tested approach to facade engineering.

This technical framework provides a step-by-step methodology for evaluating, comparing, and specifying the right commercial aluminum windows for mid-to-high-rise office buildings. By following these engineering guidelines, project teams can ensure long-term performance, structural integrity, and full compliance with modern building standards while mitigating installation risks.

• Thermal bridging is the primary vulnerability in metal frames; specifying advanced polyamide thermal struts is critical to meeting stringent U-factor and energy code requirements.
• System selection dictates structural capacity: specifiers must clearly delineate where storefront systems end and heavy-duty commercial window systems or curtain walls begin based on span and wind load.
• AW (Architectural Window) performance class is generally non-negotiable for mid-to-high-rise office buildings to withstand extreme wind loads, limit deflection, and prevent water penetration.
• Long-term asset value relies heavily on finish specification (e.g., AAMA 2605 / 70% PVDF coatings) and rigorous perimeter flashing integration to prevent premature failure.

Establishing Success Criteria for Commercial Window Systems

New Construction vs. Retrofit Specification Pathways

Ground-up developments allow architects to optimize structural openings and integrate flashing details directly into the initial envelope design. Retrofit projects establish a vastly different baseline. Specifiers must evaluate legacy anchorage capacity and historical profile matching for landmark compliance. Existing masonry or steel conditions dictate the attachment method, often requiring specialized extrusion profiles to bridge the gap between old substrates and new frames.

Panning systems, subframes, and receptor systems play a massive role in retrofit applications. They cover existing wood or steel frames, managing water infiltration without requiring full tear-outs of the surrounding facade. When executing a retrofit, field teams typically follow a specific sequence to ensure structural integrity:

1. Conduct pull-testing on existing masonry to verify anchor pull-out strength.
2. Install continuous aluminum receptor frames to handle building movement and thermal expansion.
3. Apply perimeter sealant joints between the receptor and the rough opening.
4. Snap the new window units into the receptor system, allowing for internal drainage.
5. Install exterior panning to replicate historical sightlines and shed bulk water away from the opening.

Energy Code Compliance and Thermal Performance Targets

Navigating ASHRAE 90.1, IECC, and local municipal energy codes dictates framing choices from the schematic phase. Project teams must balance the Window-to-Wall Ratio (WWR) with daylighting goals and overall building envelope thermal requirements. High WWRs demand exceptional glazing performance to offset heat loss. Specifiers must define target U-factors, Solar Heat Gain Coefficients (SHGC), and Condensation Resistance Factors (CRF) early in the design phase.

Climate Zone	Target U-Factor (Fixed)	Target SHGC	Recommended Thermal Break
Zone 1-2 (Hot)	0.50 or lower	0.25 or lower	Standard Polyamide Strut
Zone 3-4 (Mixed)	0.38 or lower	0.35 or lower	Wide Polyamide Strut
Zone 5-6 (Cold)	0.34 or lower	0.40 or lower	Multi-Cavity Strut with Foam
Zone 7-8 (Extreme Cold)	0.28 or lower	0.45 or lower	Triple Glazed + Max Strut Depth

Structural and Environmental Load Requirements

Calculating design wind pressures involves assessing both positive and negative loads based on building height, geographic location, and surrounding topography. High-rise applications face severe negative wind loads at corners, requiring reinforced mullions and deeper glazing pockets. Acoustic attenuation is equally critical. Urban or high-traffic office environments require specific STC/OITC ratings to maintain interior comfort, often necessitating laminated glass or asymmetrical insulating glass units.

Specifiers must define acceptable deflection limits for glass and framing members to prevent seal failure under load. Standard practice dictates a deflection limit of L/175 for spans up to 13 feet, and L/240 + 1/4 inch for longer spans. Exceeding these limits risks glass breakage, structural silicone failure, and catastrophic water entry during severe weather events.

Categorizing Commercial Aluminum Windows by Application

Storefront vs. Window Wall vs. Curtain Wall Systems

Each system type offers distinct structural limits, spanning capabilities, and water management approaches. Storefronts typically span single floors and handle moderate water loads through sub-sill flashing. Specifiers must identify the exact structural thresholds where a project must transition from standard storefront to robust commercial window systems. Window walls sit between floor slabs, offering easier installation from the interior and integrated slab edge covers. Curtain walls bypass the slabs entirely, providing superior water management and continuous aesthetics.

System Type	Spanning Capability	Water Management	Installation Method
Storefront	Single floor (up to 10-12 feet)	Moderate (sub-sill flashing)	Between slabs (exterior/interior)
Window Wall	Slab-to-slab (up to 15 feet)	High (integrated weeping)	Between slabs (interior access)
Curtain Wall	Multi-floor continuous	Exceptional (zone-drained)	Bypass slabs (exterior access)

Specifying Operable vs. Aluminum Fixed Windows

Natural ventilation requirements often compete with the increased air infiltration risks of operable units. North American operable configurations like awning, casement, and hopper styles offer basic functionality but rely heavily on compression seals that degrade over time. European high-performance tilt-and-turn systems provide superior air tightness and thermal metrics through multi-point locking hardware.

Specifying operable units requires evaluating hardware durability, lifecycle testing, and ADA compliance for operating force. In many high-rise applications, defaulting to aluminum fixed windows maximizes thermal performance, enhances security, and minimizes maintenance obligations. Fixed units eliminate the risk of occupant misuse, hardware failure, and perimeter gasket degradation, ensuring the building envelope performs exactly as modeled in energy simulations.

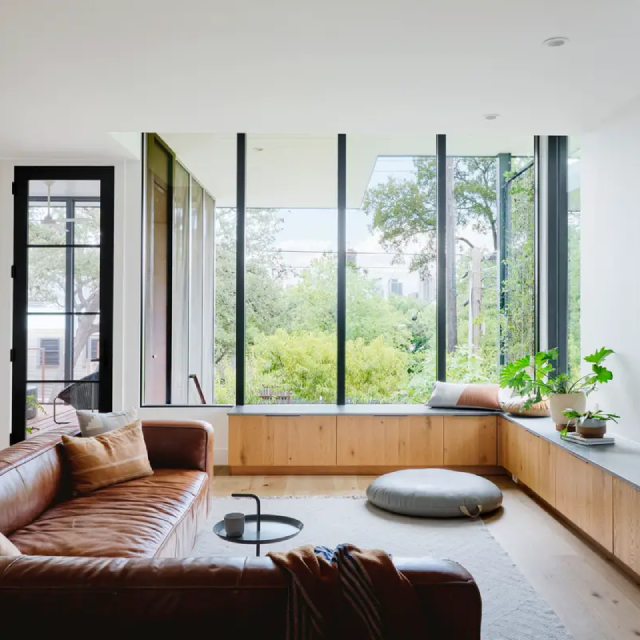

Architectural Features: Aluminum Corner Windows and Custom Configurations

Vulnerable building corners demand precise structural support, wind load transfer, and thermal continuity. Detailing mullion sightlines ensures aesthetic integration without compromising structural integrity. Specifying aluminum corner windows requires balancing narrow profiles and slim face widths with structural wind load and deflection criteria to maximize daylighting.

Custom extrusions accommodate complex geometries but carry significant lead-time implications. When designing corner conditions, engineers must account for differential movement between adjacent elevations. Structural silicone glazing (SSG) at corners provides a clean, mullion-free aesthetic but requires rigorous factory quality control and temporary structural supports during field curing.

Core Technical Evaluation Dimensions

Thermal Break Technologies

Traditional pour-and-debridge polyurethane systems offer basic thermal resistance by cutting the aluminum profile and filling the void with polymer. Modern polyamide strut thermal breaks provide superior structural integrity and thermal isolation. The depth of the thermal break directly impacts the overall system U-factor and interior surface temperatures. Strut systems also enable dual-finish capabilities, allowing different interior and exterior colors without complex masking during the finishing process.

Glazing Specifications and Compatibility

Frame pocket depth must accommodate the required glazing packages. Standard 1-inch insulating glass units fit most systems, while heavy triple glazing requires expanded pockets up to 1.5 inches or more. Integrating Low-E coatings, argon gas fills, and warm-edge spacers with the aluminum framing system maximizes thermal efficiency.

Specifiers must also address structural silicone glazing (SSG) versus dry-glazed systems. Dry-glazed systems use EPDM gaskets for faster field installation and easier glass replacement. SSG systems bond the glass directly to the frame with structural silicone, eliminating exterior pressure plates, improving water shedding, and providing a flush glass aesthetic, though they require strict adhesion testing.

Performance Class Ratings (NAFS Standard)

Decoding the North American Fenestration Standard (NAFS) classifications is mandatory for specification. Commercial office buildings typically require CW (Commercial Window) or AW (Architectural Window) ratings over lower tiers. AW certification demands rigorous lifecycle testing, torsion resistance, and stringent water penetration standards to ensure survival in demanding environments.

1. R (Residential): Light duty, low wind loads, primarily wood-frame construction.
2. LC (Light Commercial): Low-rise multi-family or light retail.
3. CW (Commercial Window): Mid-rise buildings, heavier usage, higher wind loads.
4. AW (Architectural Window): High-rise, extreme wind loads, rigorous lifecycle testing (4,000 operating cycles minimum).

Finish Options and Long-Term Durability

Anodized vs. Painted Finishes

Class I anodizing offers superior wear resistance and color consistency compared to Class II, utilizing an electrochemical process that thickens the natural oxide layer of the aluminum. High-performance architectural coatings, specifically AAMA 2605 / 70% PVDF, provide maximum UV resistance and color retention through resin-based paint systems. Specifiers must compare warranty lengths and maintenance requirements for different finish types to align with the building's expected lifespan.

Coastal and Corrosive Environment Considerations

Galvanic corrosion between aluminum frames and dissimilar metals in the building envelope causes rapid failure. Isolating these materials using bituminous coatings or dielectric separators is mandatory. Salt-spray environments demand upgraded finish specifications and hardware materials, such as 300-series stainless steel, to prevent degradation. Standard zinc-plated fasteners will rust and fail within months in coastal applications, compromising the structural attachment of the window system.

Implementation Risks and Mitigation Strategies

Frame Attachment Methods: Non-Flanged, Receptors, and Panning Systems

Commercial-specific anchorages differ vastly from residential applications. Non-flanged block frame installations dominate commercial projects, whereas flanged frames suit light commercial builds. Specifying structural receptor systems and subframes isolates the window frame from structural building movement, thermal expansion, and contraction.

Perimeter joint tolerances must accommodate seismic shifts, concrete creep, and structural deflection. A standard 1/2-inch perimeter joint may suffice for a low-rise masonry building, but a high-rise concrete structure may require 3/4-inch or larger joints to handle inter-story drift and live load deflection without transferring stress to the glass.

Water Management and Flashing Integration

Robust sub-sill flashing, end dams, and weeping systems manage inevitable water infiltration. Proper joint design and substrate compatibility testing prevent perimeter sealant failures. Transition details between the window system and the adjacent air and water barrier require meticulous drafting to maintain envelope continuity. Field teams must execute three-sided adhesion prevention using backer rods to ensure the perimeter sealant can stretch and compress with thermal movement.

Installation Sequencing and Lead Times

Coordinating tolerances and sequencing between the glazier, waterproofing consultant, and general contractor prevents site delays. Supply chain risks escalate for custom extrusions, specialized finishes, or imported glass packages. Visual mock-ups (VMU) and performance mock-ups (PMU) are essential prior to full production to validate design assumptions. A PMU subjects a full-scale facade section to dynamic wind and water testing, identifying extrusion flaws or gasket failures before thousands of units are manufactured.

Lifecycle Cost and Value Engineering Trade-Offs

Upfront Costs vs. Operational Savings

Calculating the return on investment for high-performance thermal breaks and premium glazing involves analyzing HVAC load reduction. Specifiers must factor in maintenance, cleaning, and eventual hardware replacement costs over a 30-to-50-year lifespan. Investing in AW-rated systems with AAMA 2605 finishes drastically reduces the frequency of sealant replacement and frame restoration.

Value Engineering Pitfalls

Downgrading performance class from AW to CW to save upfront costs often leads to premature structural or water failures under peak wind loads. Compromising on finish quality, such as dropping from AAMA 2605 to 2604, results in accelerated aesthetic degradation, chalking, and fading. These short-term savings evaporate when building owners face massive facade remediation costs a decade after construction.

Conclusion

Successful specification must be driven by structural demands, water management, and energy codes before aesthetic preferences. To ensure project success, take the following actions:

• Prioritize manufacturers that provide transparent, verified NAFS testing data and robust thermal break options.
• Demand comprehensive architectural detailing support from your selected vendors.
• Engage a facade consultant or manufacturer representative early in the schematic design phase.
• Execute project-specific detailing, structural calculations, and thermal modeling prior to procurement.

FAQ

Q: What is the difference between commercial and residential aluminum windows?

A: Commercial units utilize thicker extrusions, robust thermal breaks, and commercial-grade hardware to handle higher wind loads, larger spans, and heavier usage. Residential windows typically feature flanged frames and lighter profiles suited for wood-frame construction.

Q: How long do commercial aluminum windows typically last in an office building?

A: With proper specification, high-quality finishes like AAMA 2605 coatings, and routine maintenance, these systems routinely last 30 to 50 years before requiring full replacement.

Q: What is the standard lead time for custom commercial window systems?

A: Standard systems generally require 8 to 12 weeks. Custom extrusions, specialized finishes, or complex structural silicone glazing configurations can extend lead times to 16 to 24 weeks.

Q: Can aluminum fixed windows be retrofitted into existing commercial frames?

A: Yes. Utilizing panning systems, subframes, and receptors allows new fixed units to be installed over existing steel or wood frames, managing water infiltration without complete structural tear-outs.

Q: How do you mitigate thermal bridging in commercial aluminum windows?

A: Specifying advanced polyamide strut thermal breaks physically separates the interior and exterior aluminum profiles, drastically reducing heat transfer and improving the overall U-factor.

Q: What AAMA/NAFS rating is required for a mid-rise office building?

A: Mid-rise office buildings typically require an AW (Architectural Window) rating. This classification ensures the units pass rigorous lifecycle testing, torsion resistance, and severe water penetration standards.
