Coordinating fenestration across a building envelope requires more than matching paint colors; it demands strict alignment of structural tolerances, thermal performance, and architectural sightlines. Specifying mismatched profiles or failing to account for thermal bridging leads to compromised weatherproofing, failed building inspections, and costly on-site installation delays. Modern energy codes leave no room for error, making the integration of these systems a critical phase of structural planning. You must evaluate wind loads, deflection limits, and material expansion rates before finalizing any order. This guide provides a technical framework for evaluating, specifying, and coordinating aluminum systems to ensure seamless integration, regulatory compliance, and long-term structural integrity. We focus on practical field applications, structural anchoring, and the exact sequencing required to prevent water intrusion. Proper coordination eliminates guesswork, aligns contractors, and secures the long-term performance of the building envelope.
Establishing the structural, aesthetic, and environmental requirements before selecting specific product lines prevents disjointed aesthetics and mismatched performance metrics later in the project. You must define the baseline expectations for the entire building envelope. This involves a deep dive into the specific geographic and environmental stressors the building will face, from coastal salt spray to high-altitude wind loads. Skipping this baseline evaluation often results in specifying systems that look good on paper but fail under real-world conditions.
Evaluating uniform sightlines ensures fixed windows, casements, sliding doors, and bi-fold typologies share consistent frame profiles and glass planes. A cohesive modern facade design relies heavily on this visual continuity. When you mix different product lines without checking extrusion dimensions, you end up with jagged transitions and uneven glass setbacks. You must verify that the manufacturer can provide matching frame widths across all operable and fixed units. This often requires requesting detailed cross-sectional shop drawings to compare the exact geometry of the extrusions.
Finish matching requires understanding the visual and durability differences between various coatings across different extruders. Class I anodized finishes offer excellent wear resistance and a metallic appearance, but color consistency can vary slightly between batches. PVDF (Kynar) coatings provide superior color retention and chalk resistance under heavy UV exposure, making them ideal for high-rise applications. Standard powder coating works well for less demanding environments but may degrade faster in harsh climates. You must verify that all components, including structural mullions and brake metal flashing, receive the exact same finish specification to avoid a patchwork appearance.
| Finish Type | Durability | UV Resistance | Best Application |
|---|---|---|---|
| Class I Anodized | High (Scratch resistant) | Excellent | High-traffic commercial, coastal (with proper prep) |
| 70% PVDF (Kynar) | Very High | Superior | High-rise, extreme sun exposure, custom colors |
| Standard Powder Coat | Moderate | Good | Low-rise, protected environments, interior partitions |
Demystifying performance ratings helps you analyze cohesive assemblies accurately. U-Factor measures the rate of heat transfer through the entire unit, including the frame, glass, and spacers. A lower U-Factor indicates better insulation. Solar Heat Gain Coefficient (SHGC) indicates how much solar radiation passes through the glass and becomes heat inside the building. Visible Light Transmittance (VLT) determines the percentage of natural daylighting that enters the space. You must balance these three metrics to optimize energy efficiency without sacrificing natural light.
Condensation Resistance Factor (CRF) and Acoustic Rating (STC/OITC) alignment matter greatly for mixed-use or high-exposure building envelopes. You need consistent acoustic mitigation across all fenestration to prevent noise flanking paths. Mismatched CRF ratings can lead to localized moisture issues on specific frames, causing interior finish damage and mold growth. When specifying systems for a single elevation, ensure the CRF and STC ratings are uniform, even if the unit types (e.g., fixed vs. operable) differ.
Calculating wind load requirements dictates the necessary Design Pressure (DP) ratings. You base these calculations on building height, terrain category, and geographic location. A structural engineer must provide the required positive and negative wind loads for each elevation. Evaluating extrusion wall thickness and internal webbing ensures structural rigidity under these live loads. Weak profiles will deflect under heavy wind pressure, potentially causing the glass to crack or the operable sashes to blow out.
Accounting for thermal expansion and contraction coefficients prevents joint failure and perimeter sealant tear. Aluminum expands and contracts significantly with temperature changes. Failing to plan for this movement causes the frames to buckle or the perimeter caulking to split, leading to immediate water intrusion. You must design expansion gaps between mulled units and at the perimeter rough opening to accommodate these natural material shifts. The sealant joint must be sized according to the calculated movement of the specific aluminum alloy used.
Traditional un-broken aluminum systems are obsolete for conditioned spaces due to energy code evolution. Aluminum is a highly conductive metal. Without intervention, these frames transfer extreme exterior temperatures directly into the building interior, bypassing the wall insulation entirely. This thermal bridging not only drives up HVAC loads but also creates cold interior surfaces that promote heavy condensation during winter months.
Specifying thermal break windows is the only way to achieve modern compliance. You must compare polyamide struts against poured-and-debridged polyurethane systems. Polyamide struts offer superior structural integrity because they mechanically lock the interior and exterior aluminum extrusions together. This method also allows for dual-finish options, meaning you can have a different color on the exterior than the interior. Polyurethane systems involve pouring a liquid resin into a channel and then milling away the aluminum bridge. While this provides excellent U-factor improvements, it generally limits you to a single finish for the entire frame.
Multi-chambered thermal breaks impact overall system depth. You must coordinate these deeper profiles with the surrounding wall assemblies. Thicker frames require careful detailing at the rough opening to ensure proper flashing integration and interior trim alignment. If the frame depth exceeds the wall cavity, you will need custom extension jambs or modified structural blocking to support the unit properly.
| Thermal Break Type | Structural Integrity | Thermal Performance | Finish Flexibility |
|---|---|---|---|
| Polyamide Strut | High (Allows for heavy glazing) | Excellent (Multi-chamber options) | Dual-finish capable |
| Poured & Debridged | Moderate | Very Good | Single finish only |
Meeting stringent regulations like Title 24 or the IECC requires comprehensive system design. You cannot rely on the frame alone to pass the energy model. Coordinating frame performance with advanced glass packages is mandatory. The frame and the insulated glass unit (IGU) must work together as a single thermal barrier.
You must specify low-E glazing packages and warm-edge spacers. Argon or Krypton gas fills between the glass panes further reduce heat transfer. Combining these glazing technologies with thermally broken frames achieves the target U-values required by local jurisdictions. Always request certified NFRC (National Fenestration Rating Council) test reports for the exact frame and glass combination you intend to use, rather than relying on generic marketing data.
Ensuring that aluminum doors and windows can physically connect and operate together is vital. System integration prevents weak points in the building envelope. You must verify compatibility early in the design phase, especially when mixing operable vents with large fixed picture windows or heavy sliding doors.
Assessing the engineering of structural mullions is critical when mulling windows to doors or creating expansive glass walls. Creating these large assemblies requires robust connections. Weak mullions compromise the wind load resistance of the entire assembly, leading to excessive deflection. You must verify the I-value (moment of inertia) of the mullion against the specific wind load requirements of the opening.
Evaluating expansion joints ensures long-term stability. Structural silicone glazing (SSG) compatibility must be verified if you plan to use it for a seamless exterior look. The sealants must adhere properly to the specific aluminum finish specified for the project. Adhesion testing should be performed by the sealant manufacturer prior to installation to guarantee the silicone will not peel away from the anodized or painted surface under wind suction.
Specifying correct shim spacing and anchoring intervals handles the dead load of heavy glazing units. Fastener types must match the substrate material, whether it is concrete, steel, or wood framing. Inadequate anchoring leads to frame sagging, which immediately causes operable sashes to bind and weatherstripping to fail.
Mitigating galvanic corrosion is a primary concern when installing aluminum frames. You must isolate steel structural fasteners from the aluminum extrusions. Using non-conductive shims, nylon washers, or dielectric sleeves prevents the chemical reaction that degrades the metal over time. If dissimilar metals touch in the presence of moisture, the aluminum will act as an anode and corrode rapidly.
Matching multipoint locking systems across different unit types ensures consistent security and provides a uniform user experience. Occupants should not struggle with different locking mechanisms in the same room. The hardware must engage smoothly and pull the sash tightly against the weatherstripping to achieve the rated air and water infiltration performance.
Evaluating heavy-duty hinge and roller capacities is necessary for oversized units. Triple-glazed doors carry immense weight, often exceeding 400 pounds per panel. Standard hardware will fail quickly under these loads, causing the doors to drag on the sill or bind in the frame. You must specify architectural-grade stainless steel rollers and reinforced hinges that are explicitly rated for the exact weight of the glazed panel.

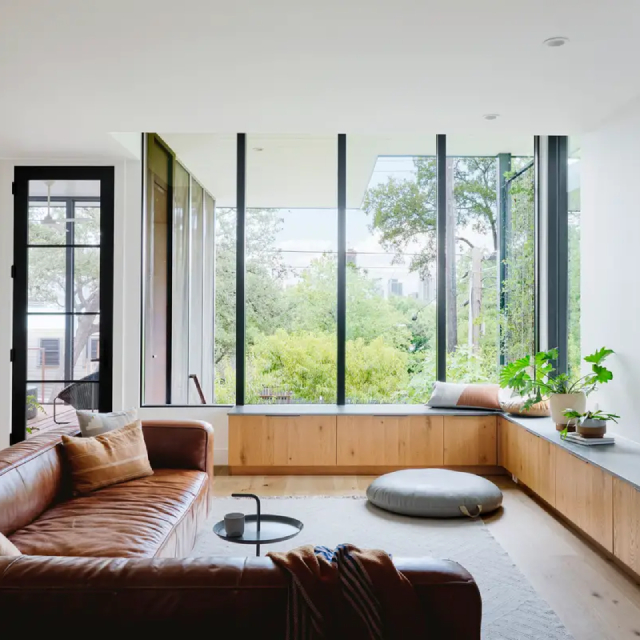

The best-specified aluminum window and door systems will fail if installed incorrectly. Accepting units with latent manufacturing defects creates immediate liabilities on the job site. Execution risk must be managed through strict protocols, clear communication with the glazing contractor, and rigorous field testing.
Coordinating the installation sequence with the weather-resistant barrier (WRB) prevents water intrusion. The window must integrate seamlessly with the wall drainage plane. Reverse-lapped flashing is a common error that channels water directly into the wall cavity instead of shedding it to the exterior. The WRB must be tied into the window frame using compatible transition membranes.
Evaluating sill pan requirements is non-negotiable. Sub-sill drainage must direct water outward, away from the interior finishes. You must also verify the compatibility of flashing tapes with aluminum finishes and perimeter sealants to prevent chemical degradation. Some asphaltic flashing tapes will react poorly with certain silicone sealants, causing the sealant to liquefy and fail. Always use a continuous, sloped sill pan with an integrated back dam and end dams.
Establishing a strict receiving checklist protects your project timeline. Inspect units for extrusion twist and structural corner joint cracks upon delivery. Verify thermal break integrity and look for surface finish scratches before installation begins. Once a damaged unit is installed, replacing it becomes exponentially more expensive and delays the interior dry-in schedule.
Verifying dimensional tolerances on-site prevents forced installations. Check frame squareness, plumbness, and level against structural rough openings. Forcing a warped frame into an uneven opening guarantees operational failure and water leaks. The rough opening must be sized to allow for proper shim space and a continuous perimeter sealant joint. If the opening is too tight, the frame will distort; if it is too large, the fasteners will not achieve proper embedment.
Pre-installation mock-ups resolve sequencing issues early. They align glazing, flashing, and cladding contractors on the exact methodology before full-scale production begins. This collaborative approach eliminates confusion during the actual installation phase and provides a physical standard for quality control.
Field water penetration testing verifies structural and water-tight installation methodology. Tests like AAMA 502 or ASTM E1105 simulate extreme weather conditions by applying a calibrated water spray and negative air pressure to the installed unit. Passing these tests provides confidence in the long-term performance of the fenestration package. If a unit fails the field test, you must identify the exact failure point—whether it is a manufacturing defect in the frame corner or an installation error in the perimeter flashing—and correct the methodology before proceeding with the rest of the building.
Successful coordination of aluminum fenestration requires treating doors and windows as an integrated structural system rather than isolated aesthetic choices. You must align thermal performance, structural anchoring, and waterproofing details across every opening to ensure the building envelope functions as designed. Prioritize manufacturers that offer comprehensive, tested suites of both doors and windows with matching thermal break technologies and verified structural mullion data.
A: Match the extrusion depth, finish specifications (e.g., AAMA 2605), and sightline dimensions. However, utilizing a single manufacturer is strongly recommended to ensure warranty coverage and structural mullion compatibility.
A: They feature a non-conductive material (usually a polyamide strut) separating the interior and exterior aluminum profiles. They are necessary to prevent heat transfer, condensation, and to meet modern building energy codes.
A: Yes, but only if specified with advanced thermal breaks, high-performance low-E glass, and warm-edge spacers to achieve the required maximum U-factors and SHGC ratings.
A: Acceptance involves verifying dimensions against shop drawings, checking frames for squareness, inspecting finishes for scratches, ensuring weather stripping and thermal breaks are intact, and confirming hardware operation before the units are set into the rough opening.
A: Use manufacturer-approved structural mullions, ensure continuous sill pans beneath the entire assembly, and follow strict sealant application guidelines at all frame joints and expansion gaps.
A: Routine maintenance includes cleaning frames with mild, non-abrasive, neutral pH solutions, clearing weep holes of debris to ensure drainage, inspecting perimeter sealants annually, and lubricating hinges and locking mechanisms while checking EPDM gaskets for elasticity.
