Modern residential architecture relies heavily on expansive sightlines and indoor-outdoor continuity, making the selection of window framing materials a critical architectural and structural decision. While aluminum offers the slim profiles required for contemporary design, buyers often struggle to balance aesthetic demands with strict energy codes, thermal performance realities, and long-term durability requirements. This guide provides a technical evaluation framework for selecting the right aluminum glass window. We move beyond basic aesthetics to assess structural integrity, glazing specifications, thermal break engineering, and installation risks. You will learn how to navigate the complex intersection of structural engineering and thermal dynamics to ensure your building envelope performs flawlessly under real-world conditions.

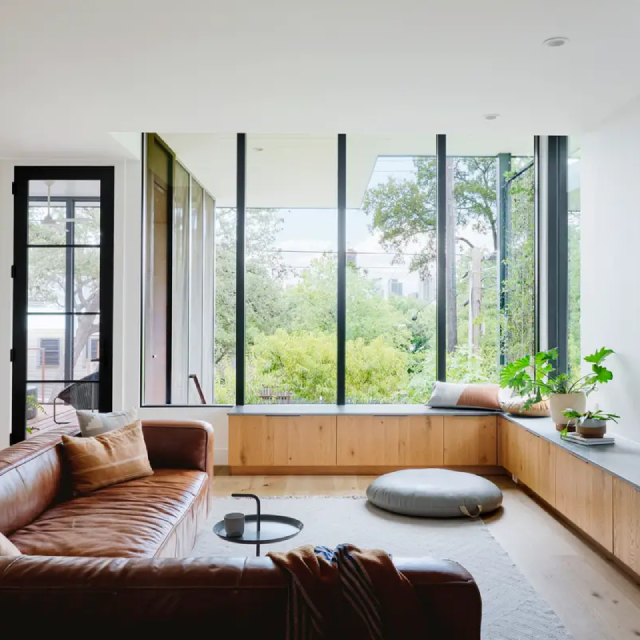

Contemporary architecture demands minimalist sightlines and large spans of glass. These designs impose heavy structural loads on window frames. Identifying the structural and aesthetic requirements early ensures the building envelope performs correctly under stress. When you specify massive glazing units, the framing material must resist deflection under wind loads while supporting the dead weight of the glass. Extruded aluminum supports significantly heavier glass loads than vinyl or wood. This exceptional strength-to-weight ratio allows for narrower mullions. You get larger unobstructed views without compromising the structural integrity of the wall.
Understanding Design Pressure (DP) and Performance Grade (PG) ratings is mandatory for any modern build. These ratings dictate the structural limits required for expansive floor-to-ceiling window walls. High DP ratings indicate the frame can withstand severe wind loads and driving rain. A DP50 rating, for example, means the window can withstand 50 pounds per square foot of pressure. This translates to roughly 137 mph wind speeds. When you evaluate framing options, you must match the DP rating to the specific wind zone of your job site.
Evaluating the inherent durability of aluminum reveals its resistance against warping, rotting, and expansion cycles. Unlike organic materials, aluminum maintains its dimensional stability across varying climates. This corrosion resistance ensures longevity even in demanding environments. Wood frames require constant maintenance to prevent rot, and vinyl frames can warp under intense solar heat gain. Aluminum extrusions remain rigid and dimensionally stable, ensuring that weather seals stay compressed and operable sashes do not bind over time.
| Material | Structural Strength | Sightline Profile | Thermal Expansion | Maintenance Level |
|---|---|---|---|---|
| Aluminum | Excellent | Ultra-Slim | Low | Low |
| Vinyl | Poor | Thick/Bulky | High | Low |
| Wood | Moderate | Moderate | Moderate | High |
| Fiberglass | Good | Slim | Low | Low |
Selecting the correct window style impacts both functionality and structural performance. The fixed picture window offers the best use cases for maximizing natural light and framing architectural views. Because they have no moving parts, fixed units provide superior air and water infiltration resistance. However, you must carefully evaluate structural limits and wind load requirements for oversized fixed panels. When glass sizes exceed standard dimensions, the thickness of the glass must increase to prevent deflection, which in turn increases the dead weight the aluminum frame must support.
Operable configurations like casement, awning, and slider windows require mechanical assessment. You must assess the mechanical reliability of heavy-duty hinges and multi-point locking systems. Consider the air-tightness ratings of compression seals found in casement and awning windows versus the sliding tracks of horizontal gliders. Compression seals physically press the sash against the weatherstripping when locked, creating a near-airtight barrier. Sliding windows rely on friction seals, which inherently allow more air leakage over time as the weatherstripping wears down.
Architectural specialty systems include bi-fold, multi-slide, and tilt-and-turn options. Bi-fold and multi-slide systems present engineering challenges and structural requirements for maximizing indoor-outdoor transitions. These massive moving walls require heavy-duty top-hung tracks or precision bottom rollers to operate smoothly. The header above a multi-slide door must be engineered to prevent any deflection, as even a quarter-inch sag can cause the panels to bind. Tilt-and-turn windows offer European-style dual-action functionality. They provide secure ventilation or swing-in access utilizing high-performance sealing mechanisms.
Knowing when to specify a custom glass window is vital for bespoke geometric shapes, floor-to-ceiling spans, or corner glazing. Be prepared for trade-offs in manufacturing lead times and replacement complexity when deviating from standard sizes. Custom units require specialized engineering approvals and unique extrusion cuts. If a custom insulated glass unit fails or breaks on site, replacing it can take weeks, delaying the entire dry-in phase of your construction schedule.
Single-pane aluminum is obsolete for residential conditioned spaces. The necessity of the double glazed aluminum window cannot be overstated. Dual-pane setups provide specific U-Factor and Solar Heat Gain Coefficient (SHGC) improvements necessary to meet modern energy codes. Without an insulated glass unit, an aluminum frame acts as a thermal bridge, rapidly transferring exterior cold or heat directly into the living space. This leads to massive energy loss and severe discomfort for the occupants.
Thermal break technology transforms aluminum frame performance. Structural polyamide struts separate the interior and exterior aluminum extrusions. This thermal break prevents cold-weather condensation and frost from forming on interior frames. Polyamide is a high-strength plastic that does not conduct heat. By mechanically crimping this strut between the inner and outer aluminum profiles, manufacturers create a continuous barrier. This engineering marvel allows you to enjoy the structural benefits of metal without the thermal penalties.
Advanced glazing upgrades further enhance efficiency. Evaluating the ROI of triple glazing is necessary in extreme northern climates. Triple glazing adds a second insulating airspace, drastically lowering the U-Factor. Selecting the correct Low-E (low-emissivity) coating formulation based on the home's solar orientation maximizes energy savings. South-facing elevations benefit from high solar heat gain coatings in cold climates to harness passive solar energy. West-facing elevations require low solar heat gain coatings to block harsh afternoon sun and reduce cooling loads.
| Glazing Configuration | Typical U-Factor | Typical SHGC | Condensation Resistance |
|---|---|---|---|
| Single Pane (No Thermal Break) | 1.00 - 1.20 | 0.70 - 0.80 | Very Poor |
| Double Glazed (Thermally Broken, Clear) | 0.45 - 0.55 | 0.55 - 0.65 | Moderate |
| Double Glazed (Thermally Broken, Low-E, Argon) | 0.28 - 0.35 | 0.20 - 0.40 | Excellent |
| Triple Glazed (Thermally Broken, Low-E, Argon) | 0.18 - 0.25 | 0.15 - 0.30 | Superior |
Navigating building codes requires tempered safety glass in specific locations. These include areas near doors, low to the floor, or within oversized panels. Tempered glass undergoes a rapid heating and cooling process that increases its strength fourfold compared to standard annealed glass. When broken, it shatters into small, blunt cubes rather than dangerous, jagged shards. You must verify local code requirements to ensure all hazardous locations are properly specified with tempered units during the ordering phase.
Laminated glass offers structural benefits for hurricane zones and forced-entry resistance. This configuration bonds two plies of glass together with a tough polyvinyl butyral (PVB) interlayer. Even if the glass shatters from a high-velocity impact, the fragments remain adhered to the interlayer, maintaining the integrity of the building envelope. This prevents sudden pressurization of the interior during severe storms, which can lead to catastrophic roof failure.
Acoustic dampening relies on Sound Transmission Class (STC) ratings. Asymmetrical double glazing uses two different glass thicknesses to disrupt sound wave transmission. Sound waves travel at different frequencies. By using a 1/4-inch pane on the exterior and a 1/8-inch pane on the interior, you break up a wider range of sound frequencies than you would with symmetrical glass. This configuration is highly effective for homes in high-traffic urban areas or near airports.
Tinting and glare control require careful consideration. You must balance the desire for natural light with the necessity of UV protection. Proper coatings prevent interior fading of hardwood floors, artwork, and furniture while maintaining visual clarity. Modern spectrally selective coatings block UV and infrared light while allowing visible light to pass through, eliminating the need for dark, reflective tints that ruin the aesthetic of a modern home.
The choice between powder coating and anodizing affects long-term appearance. Powder coating offers vast color options and a uniform finish. The process involves applying a dry powder electrostatically and curing it under heat to form a hard skin. However, it carries a potential for chipping if poorly applied or subjected to blunt force impact. Anodizing integrates with the metal, providing extreme durability and a metallic aesthetic. It is an electrochemical process that thickens the natural oxide layer on the surface of the aluminum parts. Its cons include a limited color palette and batch color variation. Coastal environments require AAMA 2605 compliance for marine environments to prevent rapid degradation from salt spray.
Dual-color frame capabilities offer design flexibility. Utilizing the thermal break divide allows you to specify distinct interior and exterior frame colors. For example, you can choose a matte black exterior to match modern architectural cladding, combined with a white interior to blend seamlessly with light-colored drywall. This split-finish capability is only possible because the polyamide thermal strut physically separates the inner and outer aluminum extrusions during the manufacturing process.
Evaluating the durability of handles, operators, and concealed hinges is essential. Stainless steel components outperform standard alloys in longevity and corrosion resistance. When specifying heavy triple-glazed sashes, the hinge capacity must be verified. Undersized hardware will lead to sash sag, making the window difficult to operate and compromising the weather seal. Always demand multi-point locking hardware for any operable unit exceeding 48 inches in height.
Understanding manufacturer warranties protects your investment. You must separate the coverage terms for the aluminum extrusion, the insulated glass unit seal failure, and the moving hardware. A typical high-quality warranty will offer 10 to 20 years on the glass seal, 10 years on the finish, and 5 to 10 years on the mechanical hardware. Read the fine print regarding coastal installations, as many standard warranties are voided if the property is within one mile of saltwater.
Water management and flashing dictate the success of the installation. Sill panning and proper exterior flashing integration are of critical importance. A high-performance aluminum window will still fail if the rough opening is not properly waterproofed. You must utilize a sloped sill pan that directs any incidental water back to the exterior. The window flange must be integrated into the weather-resistant barrier (WRB) using a shingle-lap fashion. Relying solely on exterior caulking is a guaranteed path to water intrusion and structural rot.
Handling and site logistics require careful planning. Mitigating the risks of moving oversized, heavy aluminum and glass units on residential job sites often involves crane requirements and suction lifters. A 6-foot by 10-foot triple-glazed unit can weigh over 500 pounds. Attempting to manually lift these units into place risks severe injury to the crew and catastrophic damage to the product. Site access must be evaluated early to ensure lifting equipment can reach the installation zones.
Thermal expansion allowances prevent structural binding. Installers must leave appropriate shim spaces and use high-grade elastomeric sealants. This accommodates minor material expansion without compromising the weather seal. While aluminum expands less than vinyl, it still moves with temperature fluctuations. If a large window wall is installed tight to the rough framing without a 1/4-inch to 1/2-inch expansion gap, the frame will buckle under thermal stress, leading to cracked glass and failed seals.
Aluminum glass windows are the premier choice for modern homes. They deliver unmatched structural strength and minimal sightlines. To ensure success, follow these actionable steps:
A: Yes, modern aluminum windows are highly energy-efficient when equipped with a thermal break (a non-conductive barrier inside the frame) and paired with Low-E double or triple glazing.
A: Older, non-thermally broken aluminum frames are prone to condensation. Modern, thermally broken frames prevent the transfer of cold exterior temperatures to the interior surface, effectively eliminating this issue.
A: Custom glass windows generally carry a 30% to 50% premium over standard sizes due to bespoke engineering, unique glass cutting, specialized tempering, and longer manufacturing lead times.
A: A double glazed aluminum window with a high-quality thermal break, argon gas fill, and the correct Low-E coating is sufficient for most cold climates. However, extreme northern climates may require triple glazing to meet strict passive house standards.
A: High-quality aluminum windows can last 30 to 40 years or more. Their lifespan is largely determined by the quality of the exterior finish (anodized or AAMA 2605 powder coat) and the longevity of the insulated glass unit seals.
A: For coastal environments with high salt exposure, a high-performance architectural-grade powder coat (meeting AAMA 2605 standards) or a Class I anodized finish is required to prevent pitting and corrosion.
