Modern building envelopes demand narrow sightlines and expansive glass panels, placing immense structural demands on exterior entryways. Architects and builders face a persistent conflict when specifying metal entry systems: achieving high structural integrity and security while mitigating the natural thermal conductivity of metal to meet stringent energy codes. Successfully specifying exterior aluminum doors and frames requires moving beyond basic aesthetics. You must evaluate extrusion engineering, thermal management systems, and glazing compatibility to ensure long-term performance and compliance. This guide breaks down the exact specifications, material tolerances, and installation requirements needed to execute high-performance commercial and residential entryways.
Selecting the right material for exterior entryways requires understanding the physical limitations of each option in the field. Wood offers traditional aesthetics but is highly prone to rot, warping, and requires constant maintenance, especially in exposed elevations. Fiberglass provides decent insulation but struggles with custom sizing limitations and structural spanning capabilities for massive openings. Steel is exceptionally strong but susceptible to rust, significantly heavier, and often harder to operate over time. Aluminum stands out by offering a high strength-to-weight ratio, absolute resistance to rot, and the ability to support massive expanses of glass without sagging.
| Material | Structural Strength | Weather Resistance | Maintenance Requirements | Custom Sizing Capability | Field Modification |
|---|---|---|---|---|---|
| Wood | Moderate | Low (Prone to rot/warp) | High | Moderate | Easy |
| Fiberglass | Moderate | High | Low | Low | Difficult |
| Steel | High | Moderate (Rust risk) | Moderate | Moderate | Very Difficult |
| Aluminum | High | High (Corrosion resistant) | Low | High | Moderate |
A successful exterior door installation must meet strict baseline requirements. You cannot simply guess at the structural capacity of an entryway. The following metrics dictate performance:
Coastal and high-wind zones require specialized structural capabilities. Aluminum's high strength-to-weight ratio allows it to meet strict impact-resistant and wind-borne debris standards, such as the rigorous Miami-Dade High Velocity Hurricane Zone (HVHZ) requirements. Weaker materials require bulky reinforcements to pass large missile impact tests. Engineered aluminum frames maintain relatively narrow sightlines while providing the necessary rigidity to keep laminated impact glass securely in the sash during extreme weather events. The internal webbing of the extrusion absorbs the kinetic energy of the impact, preventing catastrophic envelope failure.
Standard rough opening sizes dictate the majority of residential construction, but modern architecture frequently calls for oversized entryways. Aluminum possesses a unique capacity for massive, oversized custom heights and spans without structural bowing. Wood or fiberglass doors max out at eight feet before risking severe warpage. Aluminum systems routinely span ten to twelve feet in height. This structural stability ensures that large pivot doors or multi-slide systems operate smoothly over decades of use. When specifying oversized units, the dead load of the glass must be calculated against the deflection limits of the aluminum header.
The foundation of any high-performance metal door lies in its metallurgy. Specifying architectural-grade aluminum alloys, specifically 6063-T5 or 6063-T6, is mandatory for optimal yield strength and surface finish quality. The T5 and T6 temper designations indicate that the metal has been heat-treated and artificially aged, maximizing its structural rigidity. Lower-grade alloys compromise the door's ability to withstand daily operational stresses and environmental loads. When reviewing submittals, always verify the alloy and temper designation matches the structural engineering calculations for the specific opening.
The physical thickness of aluminum door profiles directly impacts the system's lifespan. Thin-walled extrusions will eventually rack, sag, and twist under the weight of heavy glass. Premium systems utilize thicker exterior walls (typically 0.125 inches or greater for commercial applications) and complex internal webbing geometries. These internal chambers act as structural ribs, resisting torsional twisting and keeping the door perfectly square over time. Evaluating the cross-sectional shop drawings reveals the true engineering quality of the profile. A hollow tube offers far less resistance to deflection than a multi-chambered extrusion.
Hardware failure is a common issue in poorly specified metal doors. Internal structural reinforcements are absolutely necessary at hinge, closer, and multi-point lockset locations. Without these thickened zones or inserted steel backing plates, heavy commercial usage or high-frequency residential operation will cause screws to strip and tear out of the aluminum. Proper reinforcement ensures that the physical connection between the operating hardware and the frame remains solid, maintaining both security and functionality. Field installers must verify that all tapped holes engage with these reinforced zones, not just the thin outer wall of the extrusion.

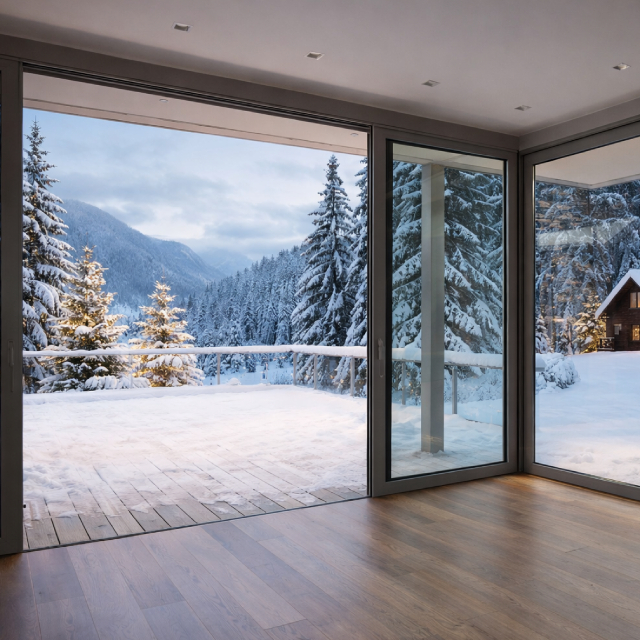

Standard, unbroken aluminum is an excellent conductor of temperature. In cold climates, a solid aluminum frame acts as a thermal bridge, rapidly transferring interior heat to the outside environment. This continuous metal pathway spikes heating costs and creates severe condensation risks on interior surfaces. Condensation leads to water damage, deteriorating adjacent drywall, and promoting mold growth around the entryway. Managing this thermal transfer is the single most important factor in specifying metal fenestration in northern climate zones.
To combat thermal bridging, manufacturers split the aluminum extrusion into exterior and interior halves, joining them with a low-conductivity material. Specifying thermal break door frames is the industry standard solution. The two primary methods are polyamide struts and polyurethane pours (pour-and-debridge).
While effective, polyamide struts generally provide better long-term structural integrity for heavy doors and allow for wider thermal breaks to meet passive house standards.
The required depth of the thermal break depends entirely on local climate zones and building energy code requirements, such as IECC compliance. A standard 15mm thermal strut might suffice for mild southern climates. Harsh northern winters often demand 30mm to 40mm multi-chambered polyamide struts to achieve the necessary U-factor. Matching the thermal management system to the specific environmental demands prevents over-specifying costs while guaranteeing performance. You must also consider the thermal performance of the threshold, which often requires a separate thermal break strategy to prevent frost line migration at the floor level.
The frame is only half of the energy equation; the glass dictates the rest. High-performance glass door frames must be engineered with deep glazing pockets to support the weight and thickness of double or triple-pane Insulated Glass Units (IGUs). These pockets must comfortably house low-E coatings, argon or krypton gas fills, and warm-edge spacers without pinching the glass or compromising the structural integrity of the sash. The glazing bead must be robust enough to withstand negative wind loads, preventing the IGU from being sucked out of the frame during severe weather events.

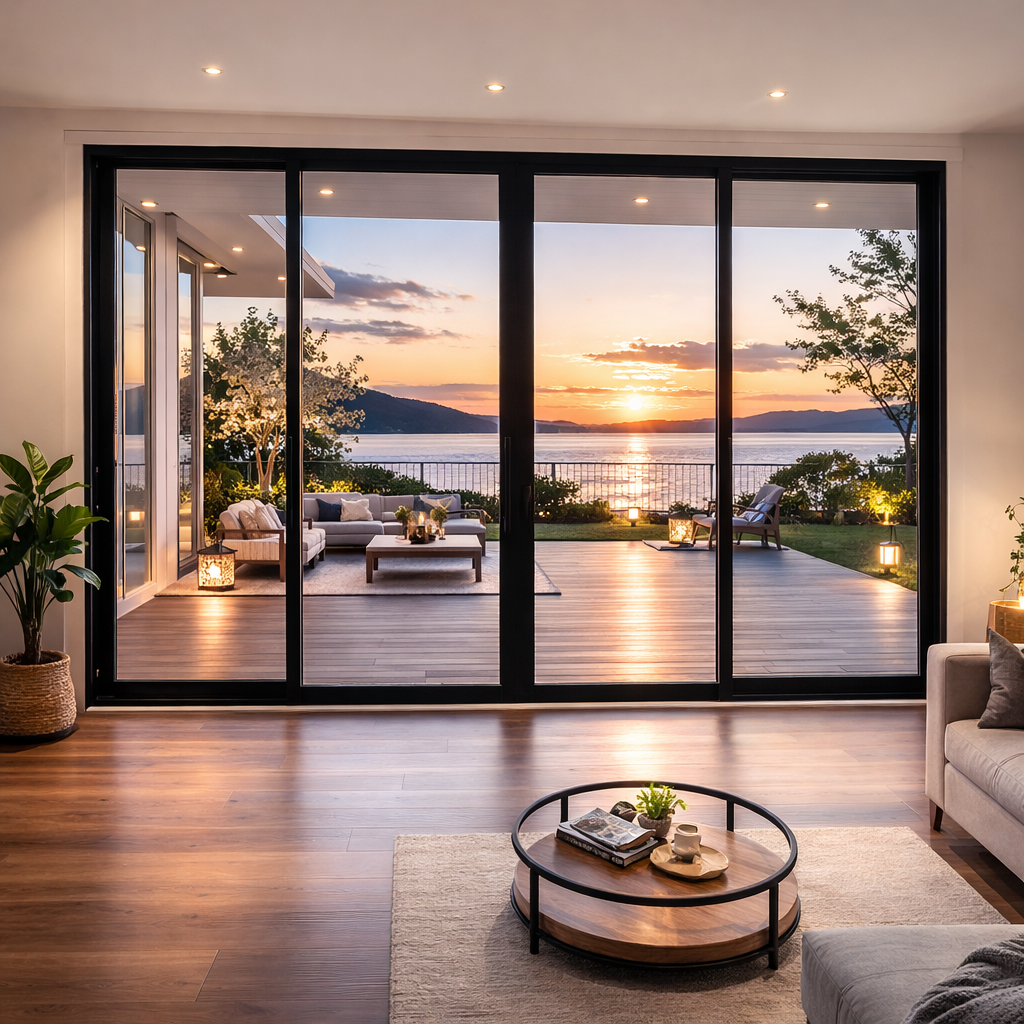

Door configuration heavily influences frame design and hardware specification. Heavy-duty butt hinges or offset pivots are required for large swing doors to manage the cantilevered weight of the glass. Large sliding or folding patio systems rely on precision-engineered tandem roller tracks and top-hung carriers. The extrusion profiles for a multi-slide system are vastly different from a standard entry door, focusing on track drainage and interlocking meeting stiles for weather resistance. The structural header above a folding door must be engineered to carry the entire dead load of the system without deflecting and binding the top track.
Architects frequently push for ultra-narrow aluminum frames to maximize glass area and views. There is a strict physical trade-off between minimal sightlines and the structural limitations of supporting large expanses of heavy glass. Pushing sightlines too narrow on an oversized door reduces the depth of the glazing pocket and the mass of the aluminum. This increases the risk of glass deflection, seal failure, and operational binding. You must consult the manufacturer's maximum size charts and wind load engineering data before committing to a narrow sightline profile on a large opening.
The method used to secure the glass into the frame impacts both weatherproofing and future maintenance. Dry glazing utilizes EPDM rubber gaskets pushed into place, offering excellent weather seals and relatively easy on-site glass replacement if a pane breaks. Wet glazing relies on structural silicone sealants to bond the glass to the frame. Wet glazing provides superior structural rigidity and water penetration resistance, which is often required for hurricane-rated doors. However, it makes field replacement significantly more difficult and labor-intensive, requiring specialized tools to cut the structural silicone bead.
| Glazing Method | Weather Resistance | Structural Rigidity | Field Replacement Difficulty | Typical Application |
|---|---|---|---|---|
| Dry Glazing (EPDM Gaskets) | High | Moderate | Low | Standard Commercial/Residential |
| Wet Glazing (Structural Silicone) | Very High | High | High | Hurricane/Impact Zones |
The surface finish protects the aluminum from oxidation and provides the final aesthetic. Class I anodized finishes involve an electrochemical process that integrates the color into the metal itself, offering superior scratch resistance and a distinct metallic appearance. PVDF/Kynar powder coatings provide a much wider color range and exceptionally high UV resistance, preventing fading and chalking over time. When specifying painted finishes, ensure the applicator is certified by the paint manufacturer to guarantee the adhesion and longevity of the coating.
Salt-spray and high-pollution areas require aggressive protection. Standard finishes will quickly pit and degrade in these environments. You must outline specific finish specifications, such as AAMA 2605 certified fluoropolymer coatings. These high-performance finishes contain 70% PVDF resin and undergo rigorous testing for salt spray resistance, ensuring the aluminum remains protected against severe coastal corrosion. Anodized finishes in coastal zones must be Class I (minimum 0.7 mils thickness) and require frequent fresh-water washing to prevent salt accumulation.
Finish selection directly impacts the manufacturer's warranty validity. Most manufacturers stipulate strict maintenance schedules, requiring documented routine cleaning to remove corrosive airborne debris. Failing to specify the correct finish grade for the environment, such as using an AAMA 2603 finish on a beachfront property, will typically void the warranty immediately upon installation. Review the warranty documentation during the specification phase to ensure the building owner understands their long-term maintenance obligations.
Even the highest-quality door systems will fail if water management is ignored. Proper integration with the building's weather-resistant barrier (WRB) is critical. Installation must include rigid sill panning, sub-sill drainage systems, and clear weep holes to channel water away from the interior. Flashing tapes and sealants must be applied sequentially to create an impenetrable barrier against wind-driven rain. The sill pan must have a positive slope to the exterior and an upturned back leg to prevent water from migrating under the threshold and into the subfloor.
Aluminum is highly reactive when placed in direct contact with dissimilar metals, especially in the presence of moisture. Using standard steel screws or carbon steel fasteners in aluminum frames will trigger galvanic corrosion, rapidly degrading the frame and causing hardware failure. Always specify the use of 300-series stainless steel fasteners. Utilize isolating washers or bituminous coatings when aluminum frames contact structural steel or concrete. Failure to isolate the aluminum will result in severe pitting and structural degradation within a few years.
Aluminum frames are rigid and completely unforgiving of rough openings that are out of square. Strict tolerances are required during installation. The frame must be installed perfectly plumb, level, and square. Forcing an aluminum frame into a warped opening will twist the extrusions, causing the door panel to bind, compromising the weather seals, and leading to permanent operational failure. Installers must use laser levels and high-quality shims to ensure the frame is perfectly aligned before driving the final structural fasteners.
To ensure project success and long-term performance of your exterior entryways, execute the following next steps:
A: Yes, provided they are engineered correctly. Standard aluminum conducts heat, but modern systems utilize thermal break door frames to separate the interior and exterior metal. When combined with high-performance insulated glass units featuring low-E coatings and argon gas, aluminum doors easily meet strict energy codes.
A: Aluminum provides excellent security through a superior strength-to-weight ratio. While steel offers absolute impact resistance, it is heavy and prone to rust. Aluminum frames utilize thick extrusion walls and internal reinforcements at locking points, easily accommodating heavy-duty multi-point locking mechanisms without the weight and corrosion risks of steel.
A: Yes. Manufacturers offer custom extrusions and simulated divided lites (SDLs) applied directly to the glass. This allows you to replicate legacy sightlines and traditional grid patterns common in historic buildings while upgrading the thermal performance and structural integrity to modern standards.
A: Aluminum's structural rigidity supports a wide variety of configurations. Options include standard single or double swing doors, massive pivot doors, sliding patio systems, and complex multi-slide or bi-fold systems that can span entire walls to seamlessly connect indoor and outdoor spaces.
A: A high-quality aluminum exterior door can easily last 20 to 30 years or more. This lifespan is contingent on specifying the correct architectural-grade alloy, applying durable AAMA-certified finishes, and performing routine hardware and weatherstrip maintenance.
A: Maintenance is minimal but necessary. Routine care involves cleaning sliding tracks of debris, ensuring weep holes are clear for proper water drainage, washing the frame with mild soap to protect the finish, and periodically inspecting EPDM gaskets and weather seals for wear.
