Aluminum frames hold immense architectural appeal. They support massive glass expanses while maintaining ultra-narrow sightlines. Modern home designs rely heavily on these sleek profiles to maximize natural light and outdoor views. However, aluminum presents a serious inherent material challenge. It is highly thermally conductive. Heat and cold transfer rapidly through standard metal frames.
Selecting the wrong specification creates severe problems for homeowners. Poorly engineered frames lead to interior condensation, frost buildup, and significant energy loss. Furthermore, heavy glass loads can cause premature hardware failure if the structural components lack sufficient capacity. You must evaluate these units carefully before installation.
This guide provides an objective, technical framework for evaluating structural integrity, thermal mitigation, hardware reliability, and installation requirements. We focus on practical construction realities. You will learn how to specify the right components to ensure a high-performing window replacement or new build.
Defining success criteria is your first step in any window upgrade. A successful installation delivers long-term durability, aligns with your architectural aesthetic, maximizes energy efficiency, and ensures smooth operation. You must balance these factors against the specific climate demands of your location. When evaluating an aluminum casement window, you are looking at a product designed for structural dominance.
Aluminum offers a massive structural advantage. It boasts an exceptionally high strength-to-weight ratio. This allows manufacturers to build much larger sashes than vinyl or wood alternatives. The frames resist warping, twisting, and expansion under heavy wind loads. You get superior structural stability over decades of use. This structural strength directly provides a significant sightline benefit. Because the metal is so rigid, the frame profiles can be engineered exceptionally thin. Minimal frame thickness means maximum daylight opening. You get more glass area and less visible frame, which defines contemporary architectural design.
The ventilation advantage is equally important. An outward-opening sash acts as a structural sail. It captures passing side breezes and redirects them straight into the home. This "wind scoop" effect provides vastly superior cross-ventilation compared to double-hung or sliding designs. Despite these benefits, aluminum carries a primary liability. It is a highly conductive metal. Heat travels through it quickly. If the frame is not properly engineered with thermal barriers, it will compromise your home's baseline energy efficiency. Unmitigated aluminum frames feel cold in winter and hot in summer.
These steps ensure you are not just buying a product, but engineering a solution for your building envelope. The structural integrity of aluminum allows for expansive views, but you must manage the thermal conductivity through proper specification.
Thermal bridging is the physics of heat transfer through solid materials. In a standard aluminum frame, the continuous metal path allows outside temperatures to migrate indoors. In cold climates, the interior frame surface drops below the dew point. This causes interior frost, condensation, and eventual water damage to surrounding drywall. You must specify a thermal break casement window to stop this transfer.
A thermal break splits the interior and exterior aluminum extrusions. A non-conductive material joins them back together. This interrupts the thermal bridge. There are two primary methods for creating this critical barrier. Polyamide struts and polyurethane poured breaks dominate the market. Polyurethane involves pouring liquid resin into a frame channel and milling away the metal bottom. Polyamide struts are mechanically crimped between the inner and outer aluminum profiles.
Polyamide struts are the industry standard for high-end residential applications. They offer superior structural rigidity, allow for dual-color frame finishes, and provide excellent thermal separation. When you evaluate a thermal break, you are looking at the core engine of the window's energy performance. Without it, the aluminum frame acts as a radiator, pulling heat out of your home in the winter and pushing it inside during the summer.
| Performance Metric | Definition | Target Recommendation |
|---|---|---|
| U-Factor | Measures the rate of heat transfer. Lower is better. | 0.30 or lower for cold climates. |
| Solar Heat Gain Coefficient (SHGC) | Measures solar radiation admitted through the window. | Low SHGC for hot climates; Higher SHGC for cold climates. |
| Condensation Resistance (CR) | Measures the ability to resist interior moisture formation. | Score of 50+ is critical for cold weather zones. |
You must verify these key performance metrics before purchasing. The U-factor dictates overall insulation value. The SHGC must match your home’s solar exposure to prevent overheating. A high Condensation Resistance (CR) rating is absolutely critical for aluminum frames in cold climates to protect your interior finishes. Always request the NFRC label data from your supplier to confirm these numbers.
The hardware dictates the operational lifespan of the unit. Double or triple-pane insulated glass is incredibly heavy. The hinges bear this entire load when the sash is open. You must specify heavy-duty, stainless-steel washability hinges. Evaluate the manufacturer's hinge load ratings carefully to prevent sash sag over time. Sagging sashes will not close properly and will ruin the weather seal.
The rotary gear operator drives the sash outward. The durability of a crank casement window relies on these internal gears. Avoid cheap die-cast zinc gears. Demand stainless steel internal mechanisms for longevity. Additionally, consider folding crank handles. Folding handles nest flat against the frame, providing necessary interior clearance for window blinds and shades.
Multi-point locking systems are mandatory. A single-lever lock engages multiple locking points along the sash perimeter simultaneously. This pulls the sash tight against the frame. It achieves an airtight compression seal against the weatherstripping. Without a multi-point lock, the top and bottom corners of tall sashes will leak air and water. The locking mechanism must pull the sash in evenly to compress the bulb seals fully.
Hardware failure is the most common reason for window replacement. Investing in premium stainless steel components upfront prevents costly service calls and ensures the window operates smoothly for decades. The weight of the glass package demands robust mechanical support.
Aluminum allows for massive sash dimensions, but limits still exist. Manufacturers provide strict guidelines on maximum width, height, and weight. Exceeding these limits causes hardware failure. If your opening is too large for a single sash, you must use structural mullions to divide the space or transition to a combination of awning and fixed configurations.
You can choose between single or French (double) casements. A French casement features two sashes that open outward from the center with no vertical mullion blocking the view. While aesthetically stunning, French casements present potential structural and weather-sealing compromises. The meeting stile where the two sashes lock together is highly vulnerable to air infiltration under heavy wind loads.
Ordering a custom casement window requires absolute precision. You must measure the rough opening accurately. Follow the three-point measurement rule. Take width and height readings at three distinct locations: top, middle, and bottom. Always use the smallest dimensions. This accounts for frame shifting, structural settling, and out-of-square walls.
The glass package must integrate seamlessly with the aluminum frame. Evaluate double-pane versus triple-pane insulated glass units (IGUs). Triple-pane offers better insulation but adds significant weight. You must include Low-E coatings and Argon or Krypton gas fills. These glass enhancements are necessary to offset the baseline thermal conductivity of the metal frame.
Comparing aluminum to vinyl reveals clear trade-offs. Vinyl offers superior baseline thermal performance because plastic does not conduct heat. However, vinyl lacks structural rigidity. Vinyl frames require thick, bulky profiles to support heavy glass. Aluminum provides structural dominance, allowing for massive sizes and ultra-thin sightlines, but requires engineered thermal breaks to compete on energy efficiency.
Fiberglass represents a middle-ground option. It shares a similar strength-to-weight ratio with aluminum. Fiberglass also provides better natural thermal performance. However, aluminum still wins on architectural aesthetics. Aluminum extrusion processes create sharper, cleaner profile lines. Aluminum also supports a wider variety of specific architectural finishes that fiberglass cannot replicate.
| Material | Structural Strength | Thermal Performance (Baseline) | Sightline Thickness |
|---|---|---|---|
| Aluminum (Thermally Broken) | Excellent | Good (Requires Thermal Break) | Ultra-Narrow |
| Vinyl | Poor to Fair | Excellent | Thick/Bulky |
| Fiberglass | Very Good | Very Good | Moderate |
Consider the lifecycle return on investment. High-end aluminum requires a larger initial capital expenditure than cheaper alternatives. However, the long-term ROI is substantial. A well-engineered aluminum unit boasts a 30-to-40-year operational lifespan. It requires minimal maintenance. Modern thermal breaks ensure ongoing energy savings that justify the initial investment.
Evaluating finishes is critical for longevity. Standard paints degrade quickly outdoors. You must choose between AAMA 2604/2605 powder coatings and Class I anodized finishes. Powder coatings offer exceptional durability and chalking resistance. Anodized finishes physically bond with the metal, making them highly resistant to scratches and ideal for harsh coastal environments.

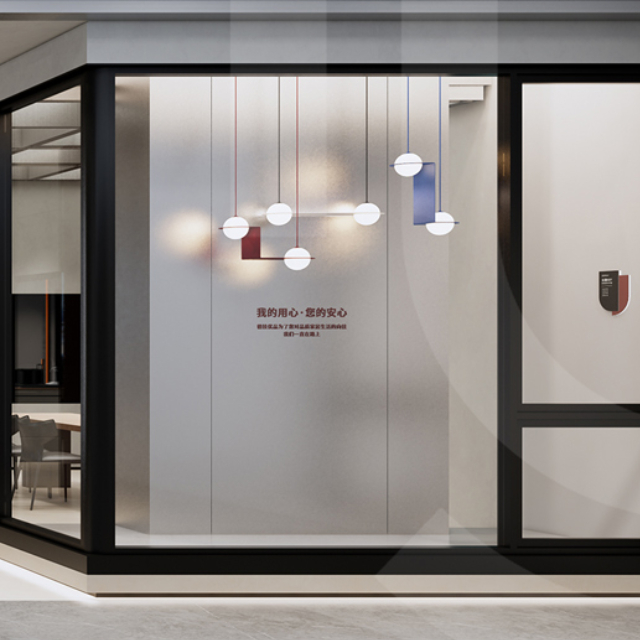

Installation dictates performance. Even premium frames will fail if water management protocols are ignored. Proper sill panning and exterior flashing are critical. Aluminum does not absorb water, but the frame will channel bulk water directly into the wall cavity if the perimeter is improperly sealed. Installers must integrate the window perfectly with the building's weather-resistant barrier.
Dissimilar metal corrosion is a severe risk. Galvanic action occurs when incompatible metals touch in the presence of moisture. Warn your installation crew against using standard steel screws. Fasteners must be stainless steel or specially coated. Non-compatible fasteners will cause rapid, destructive corrosion when in direct contact with aluminum frames.
Understand the difference between new construction and insert replacement. Full-frame replacement uses a nailing fin integrated into the exterior sheathing. This provides superior structural support and weatherproofing. Insert installation leaves the old frame in place and slides the new unit inside. For aluminum upgrades, full-frame replacement is almost always recommended to ensure proper thermal and moisture management.
Scrutinize the manufacturer's warranty carefully. Watch for specific exclusions. Many warranties contain coastal proximity clauses that void coverage if the home is near saltwater. Check for finish degradation limits and hardware labor exclusions. Ensure the warranty covers the thermal break integrity and IGU seal failure for at least twenty years.
An aluminum casement window is a premium architectural choice. It delivers unmatched structural strength and minimal sightlines. However, this material requires strict attention to thermal engineering and hardware quality. You cannot compromise on these technical specifications if you want a durable, energy-efficient home.
Filter your options ruthlessly. Immediately discard any non-thermally broken options for residential use. Prioritize products featuring AAMA-certified finishes and heavy-duty stainless-steel crank mechanisms. These components ensure your investment survives decades of daily operation and harsh weather exposure.
A: Yes, provided they are engineered correctly. Standard aluminum is highly conductive and inefficient. To achieve high energy efficiency, the frame must feature a polyamide or polyurethane thermal break. You must also pair the frame with Low-E coated, argon-filled insulated glass units.
A: Aluminum units typically cost 30% to 50% more than standard vinyl options. This premium accounts for the complex thermal break engineering, the structural rigidity of the metal, custom sizing capabilities, and high-performance architectural finishes like anodizing or AAMA-certified powder coating.
A: Yes. Building codes require specific clear opening dimensions for bedroom egress. Casement windows are excellent for this because the entire sash swings open. You must specify egress-specific hardware, which allows the sash to open fully without the hinge mechanism blocking the required escape path.
A: A thermal break is a non-conductive barrier, usually made of polyamide or polyurethane, placed between the interior and exterior aluminum frame pieces. It stops heat and cold transfer. It is strictly necessary for residential homes in moderate to cold climates to prevent interior condensation and energy loss.
A: Use the three-point measurement strategy. Measure the width at the top, middle, and bottom. Measure the height at the left, center, and right. Always use the smallest dimension recorded. This ensures the new rigid aluminum frame will fit even if the existing rough opening is out of square.
A: A high-quality aluminum unit can last 30 to 40 years or more. The aluminum frame itself will not rot or warp. The lifespan is entirely contingent on maintaining the stainless-steel hardware, replacing weatherstripping when it flattens, and selecting a durable AAMA-certified powder coat or anodized finish.
A: Standard aluminum frames cause condensation when cold exterior metal meets warm, humid interior air. The metal drops below the dew point, causing moisture to form. Thermally broken frames, combined with proper indoor humidity control, effectively mitigate this physics problem and keep the interior frame warm.
