Architectural demand heavily favors seamless indoor-outdoor living, placing immense pressure on large-scale fenestration projects. Creating massive wall openings requires balancing ambitious aesthetic goals—like ultra-slim sightlines and expansive glass—with rigorous structural engineering, thermal performance, and long-term operational reliability. Failing to align these factors often results in sagging frames, water infiltration, and compromised energy efficiency.
Selecting the right hardware and framing material dictates the success of these expansive transitions. You must evaluate specifications, material trade-offs, and installation realities to ensure a failure-free patio door integration. This guide provides a technical framework for navigating these variables. You will learn how to assess structural demands, compare track systems, and specify high-performance glazing to achieve a durable, weather-tight, and visually stunning architectural feature.
Large patio openings demand specific baseline requirements. Structural rigidity, weather resistance, and ease of operation stand as the primary success criteria. When you remove an entire wall to connect a living room to a patio, the replacement system must withstand wind loads, prevent thermal bridging, and operate smoothly despite weighing hundreds of pounds. You cannot compromise on the framing material when dealing with spans exceeding ten feet.
Vinyl struggles significantly in large structural openings. It possesses a high coefficient of thermal expansion and contraction. In harsh climates with extreme temperature swings, vinyl frames warp, twist, and degrade. This movement breaks weather seals and causes the door panels to bind in their tracks. Wood offers excellent insulation but demands relentless maintenance. Timber absorbs moisture, leading to rot and warping over time. It also requires recurring painting or staining to maintain its integrity against UV exposure and rain.

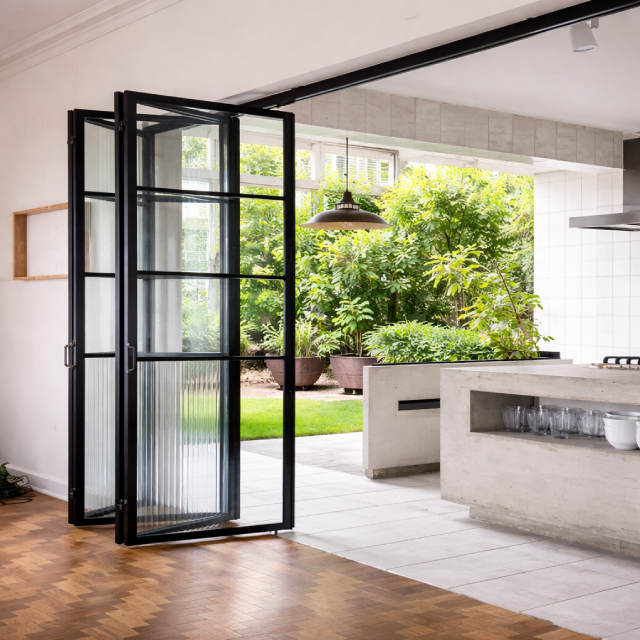

Aluminum solves these structural and maintenance issues. Its superior strength-to-weight ratio allows engineers to design minimal profile widths. Thinner frames maximize the glass surface area and natural light transmission. A well-engineered aluminum bifold door resists thermal distortion, ensuring the weatherstripping remains compressed and the rollers stay perfectly aligned within the track.
| Material | Structural Rigidity | Thermal Expansion | Maintenance Level | Sightline Potential |
|---|---|---|---|---|
| Aluminum | Excellent | Low | Low | Ultra-Slim |
| Vinyl | Poor (for large spans) | High | Low | Thick/Bulky |
| Wood | Good | Low | High | Moderate |
Spatial requirements dictate much of the decision-making process. When evaluating folding glass doors, you must account for dedicated stacking space. The panels must fold and stack either on the interior or exterior of the home, which consumes floor space. Sliding doors operate entirely within their own track footprint, making them suitable for tight spaces.
Understanding structural variations helps you match the door system to your specific application. The weight distribution and opening direction fundamentally change how the door interacts with your home's architecture.
Top-hung systems suspend the entire weight of the door from the lintel or header above. This configuration provides incredibly smooth operation and allows for flush floor tracks, as the bottom track only serves as a guide. However, top-hung systems require heavy-duty structural beams. The header must exhibit near-zero deflection to prevent the doors from binding. If you are building new construction, engineering a steel I-beam or heavy LVL header is straightforward.
Bottom-rolling systems transfer the weight directly to the floor track. The header only keeps the panels upright. This approach serves as the ideal choice for retrofits and remodels. If reinforcing the structural header proves structurally unfeasible, bottom-rolling systems provide a reliable alternative without compromising operability. The floor structure must be perfectly level and capable of supporting the concentrated point loads of the heavy glass panels.
Space planning dictates the opening direction. Outward-opening configurations preserve interior living space, allowing you to place furniture closer to the door. However, this exposes the open panels to wind and rain. Inward-opening systems protect the panels from the elements when stacked but require clear interior clearance, reducing usable floor space inside the room. Most residential applications favor outward-opening systems to maximize interior square footage.
Standard sizes fit conventional rough openings, but architectural projects often require custom patio doors. Maximum panel widths and heights depend on several intersecting factors. Wind load limits in your specific region dictate glass thickness and frame reinforcement. The weight of the glazing—especially when upgrading from double to triple pane—directly impacts the hardware weight capacities.
Configuration also matters. Odd panel configurations (like 3, 5, or 7 panels) allow for a daily traffic door. This single access panel operates independently, letting you quickly enter or exit without folding the entire system. Even panel configurations often require opening the system from the center or folding multiple panels just to pass through.
Assessing product quality requires looking past marketing claims and examining the engineering details. Use these technical dimensions to evaluate prospective door systems for your project.
Panel-to-panel profile dimensions, known as meeting stiles, impact the architectural aesthetic. Standard heavy profiles often measure between 120mm and 150mm in combined width. These thicker frames provide robust strength but interrupt the view. Ultra-slim, high-performance engineered profiles reduce this dimension to under 100mm. These slim sightlines mimic the minimal aesthetics of modern sliding systems while retaining the full-opening capability of a bifold.
Aluminum conducts heat readily. To prevent thermal bridging and interior condensation, frames must feature multi-chambered designs with advanced polyamide struts. These thermal breaks separate the interior and exterior aluminum extrusions, stopping heat transfer.
Evaluate the U-factor to understand thermal transmittance; lower numbers indicate better insulation. Check the Solar Heat Gain Coefficient (SHGC) to determine how much solar radiation passes through the glass. Ensure the system meets or exceeds your local climate zone building code requirements.
Design Pressure (DP) and Performance Grade (PG) ratings indicate a door's ability to withstand wind, water, and structural loads. High ratings prove critical in coastal, high-wind, or high-altitude regions. Frame extrusion quality also matters. Specify architectural-grade alloys, such as 6063-T6 aluminum, which offer superior tensile strength compared to cheaper, recycled-grade alternatives.
Heavy doors require heavy-duty hardware. Look for marine-grade stainless steel multipoint locking systems and heavy-carrier rollers. The threshold design dictates weather resistance and accessibility. Weathered or rebated thresholds provide high water-tightness and driving rain resistance. Flush or low-profile thresholds offer barrier-free accessibility but require secondary drainage channels to manage water effectively.
Surface treatments protect the aluminum from oxidation. Powder coating provides a durable, color-fast finish. Look for Qualicoat Class 1 or Class 2 classifications for guaranteed longevity. Anodized finishes physically alter the aluminum surface, offering extreme scratch resistance. Installations within five miles of saltwater require marine-grade finishes or pre-anodization treatments to prevent filiform corrosion and blistering.
Insulated glass units (IGUs) drive thermal and acoustic performance. Double-pane glass suits most moderate climates, while triple-pane IGUs offer superior insulation for extreme cold, albeit with a significant weight penalty. Enhance performance with Low-E coatings to reflect infrared heat and argon gas fills to slow thermal transfer. Specify tempered safety glass for impact resistance and acoustic laminated glass for urban noise reduction.
Investing in large-scale fenestration requires understanding the factors that drive initial costs and long-term value. A realistic assessment ensures you allocate your budget effectively across the entire project scope.
Premium aluminum systems represent a significant investment. Several key drivers influence the final figure. Structural engineering requirements often necessitate header upgrades. Customized configurations, such as odd panel counts or non-standard heights, increase manufacturing complexity. Premium colors, including dual-color frames (different interior and exterior colors), add to the base cost. Specialized glazing and high-performance hardware also elevate the total investment.
Powder-coated aluminum requires minimal maintenance compared to timber. A periodic wash with mild soap and water, combined with routine hardware and track lubrication, keeps the system operating smoothly. High-end folding glass doors significantly enhance property appraisal. They boost architectural appeal and generate strong buyer interest during resale by creating the highly sought-after indoor-outdoor living experience.
Even the highest quality door will fail if installed incorrectly. Navigating the technical hurdles of installation ensures the system performs as engineered.
Top-hung bifold systems face a critical failure point: header sag. You must consult a structural engineer to verify that the support lintel can withstand both dead and live loads. The header must not deflect more than the manufacturer's strict tolerances, which typically sit at L/175 or less than 1/8 inch of maximum deflection. Any sag will cause the doors to bind and the locking mechanisms to fail.
Water management requires precise mechanical execution. Installers must integrate self-draining sub-sills and proper sill pan flashing. Back-dams prevent water from being blown inside during severe storms. Clear weep holes must remain unobstructed to channel water away from the track and out of the building envelope.
Installation demands specialized expertise. Select manufacturer-certified installation crews who understand the specific tolerances of the system. DIY installation or utilizing non-certified general contractors often voids the manufacturer's warranty. Proper alignment, squaring, and weatherproofing require experience that general carpentry does not provide.
Take these concrete steps to ensure a successful patio door integration:
A: Older, non-thermally broken aluminum frames did cause condensation. Modern systems use advanced polyamide thermal breaks that separate the interior and exterior metal, effectively stopping thermal transfer and preventing interior condensation.
A: Panel widths vary by manufacturer and engineering constraints, but premium systems typically support individual panels up to 39 inches wide. Wind loads and glass weight dictate the absolute maximum width for your specific project.
A: Yes, flush tracks provide barrier-free accessibility. However, they offer less protection against driving rain. You must install secondary drainage channels beneath the track to manage water infiltration effectively.
A: A daily traffic door is a single, independently operable panel integrated into the bifold system. It functions like a standard swing door, allowing quick access without unlocking and folding the entire multi-panel system.
A: You should clear debris from the bottom track monthly to ensure smooth operation. Dirt, pebbles, or pet hair can damage the rollers and impede the folding mechanism if left unchecked.
