The architectural shift toward large-format glazing and minimal sightlines has made metal-framed doors a standard in both high-end residential and commercial construction. Builders, architects, and property owners face a specific challenge: balancing the aesthetic desire for expansive glass with strict structural wind load requirements, stringent energy codes, and long-term durability. Navigating these requirements demands a thorough understanding of material science and structural engineering principles.
Moving beyond basic aesthetics requires evaluating extrusion quality, thermal break technology, and glazing specifications to ensure a high-ROI, low-maintenance installation. Selecting the right system means analyzing the specific environmental loads the building will face and matching those demands with properly engineered profiles and hardware. This guide breaks down the technical criteria necessary to specify and install high-performance entry and patio systems.
Design Pressure (DP) ratings serve as the primary metric for evaluating a door's ability to withstand environmental forces. A DP rating indicates the specific amount of wind, water, and structural load a unit can endure before failing. Testing involves subjecting the door assembly to positive and negative pressures that simulate severe weather conditions. Higher DP ratings translate directly to thicker extrusions, reinforced locking mechanisms, and superior weatherstripping. For example, a DP50 rating means the door can withstand 50 pounds per square foot of pressure, roughly equivalent to 137 mph winds.
Matching the structural rating to local building codes is non-negotiable. Coastal regions and hurricane zones require assemblies engineered to resist extreme wind velocities and flying debris. These environments demand high-DP ratings and specific impact certifications like Miami-Dade NOA. Inland installations may not require extreme impact resistance, but they still necessitate adequate structural integrity to handle seasonal storms and daily operational stress without frame deflection. You must verify the rough opening can support the specified DP rating through proper anchoring.
Modern building codes strictly regulate heat transfer, making the selection of energy efficient glass doors a priority. The U-factor measures the rate of heat transfer through the entire door assembly, including the frame, glass, and spacers. Lower U-factors indicate better insulation. The Solar Heat Gain Coefficient (SHGC) measures the fraction of incident solar radiation admitted through the glass. Managing SHGC is critical for controlling interior cooling loads during summer months.
Local climate zones dictate the necessary thermal performance of the frame and glass assembly. Cold climates demand low U-factors to retain interior heat, heavily relying on wide polyamide thermal breaks within the aluminum extrusions. Hot climates prioritize low SHGC ratings to block solar heat while maintaining visible light transmittance. Properly engineered systems balance these metrics to optimize HVAC efficiency and maintain interior comfort. We often see failures when specifiers ignore the frame's thermal break and only look at the center-of-glass U-factor.
Architects frequently specify minimal frame sightlines to maximize the visible glass area. However, an inverse relationship exists between narrow sightlines and the structural capacity required to hold heavy, large-format glass. As the aluminum profile shrinks, its moment of inertia decreases, reducing its resistance to bending. Engineers must utilize thicker aluminum walls or internal steel reinforcements to maintain structural integrity when utilizing ultra-narrow profiles.
Establishing realistic expectations for panel weight is vital for long-term operability. Oversized insulated glass units are exceptionally heavy, often exceeding 800 pounds per panel. This weight places immense stress on hinges, rollers, and tracks. Exceeding hardware weight limits leads to premature failure, difficult operation, and compromised weather seals. Specifying heavy-duty, precision-engineered hardware is mandatory when designing expansive glass walls.
When evaluating aluminum and glass doors against traditional steel systems, the strength-to-weight ratio becomes a defining factor. Steel offers exceptional tensile strength, allowing for incredibly thin profiles. However, steel is exceedingly heavy, complicating installation and requiring massive structural support. Aluminum provides excellent structural rigidity at a fraction of the weight. Extrusion technology allows aluminum to be formed into complex, multi-chambered profiles that maximize strength while minimizing material mass.
Aluminum's lightweight nature provides significant advantages for operating mechanisms. Heavy steel frames place constant strain on rollers and hinges, often requiring specialized, expensive hardware to ensure smooth operation. Aluminum panels glide effortlessly on standard heavy-duty tracks, reducing wear and tear on the moving components. This weight advantage allows for larger operable panels without compromising the user experience. Installers appreciate the manageable weight during the hoisting and setting phases.
Contrasting aluminum with wood door systems highlights significant differences in maintenance and longevity. Wood is highly susceptible to environmental degradation. Moisture absorption causes structural warping, swelling, and eventually rot. Wood frames require continuous maintenance, including sanding, sealing, and repainting, to maintain their integrity and appearance. Failure to maintain wood leads to compromised weather seals and structural failure.
In contrast, aluminum glass doors offer superior long-term durability. Aluminum does not absorb moisture, eliminating the risk of warping or rot. Modern finishing techniques protect the metal from oxidation and UV degradation. This inherent stability ensures that the doors remain operable and weather-tight over decades of use, requiring little more than routine cleaning of the tracks and glass. We recommend inspecting the weep holes annually to ensure proper drainage.

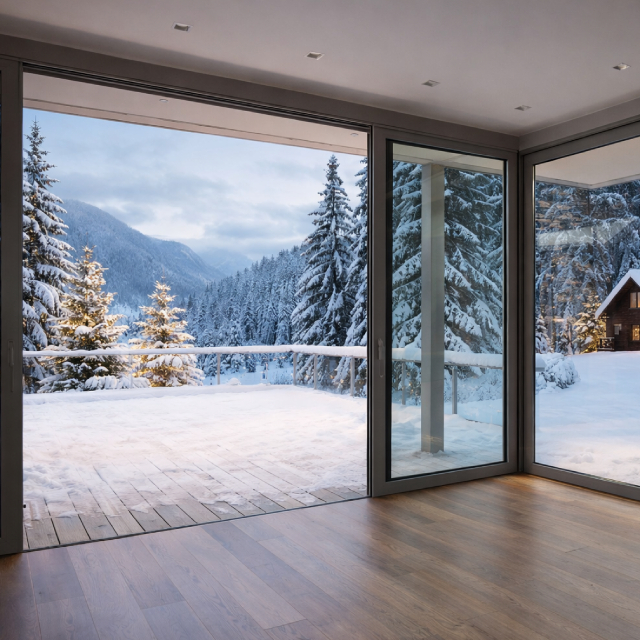

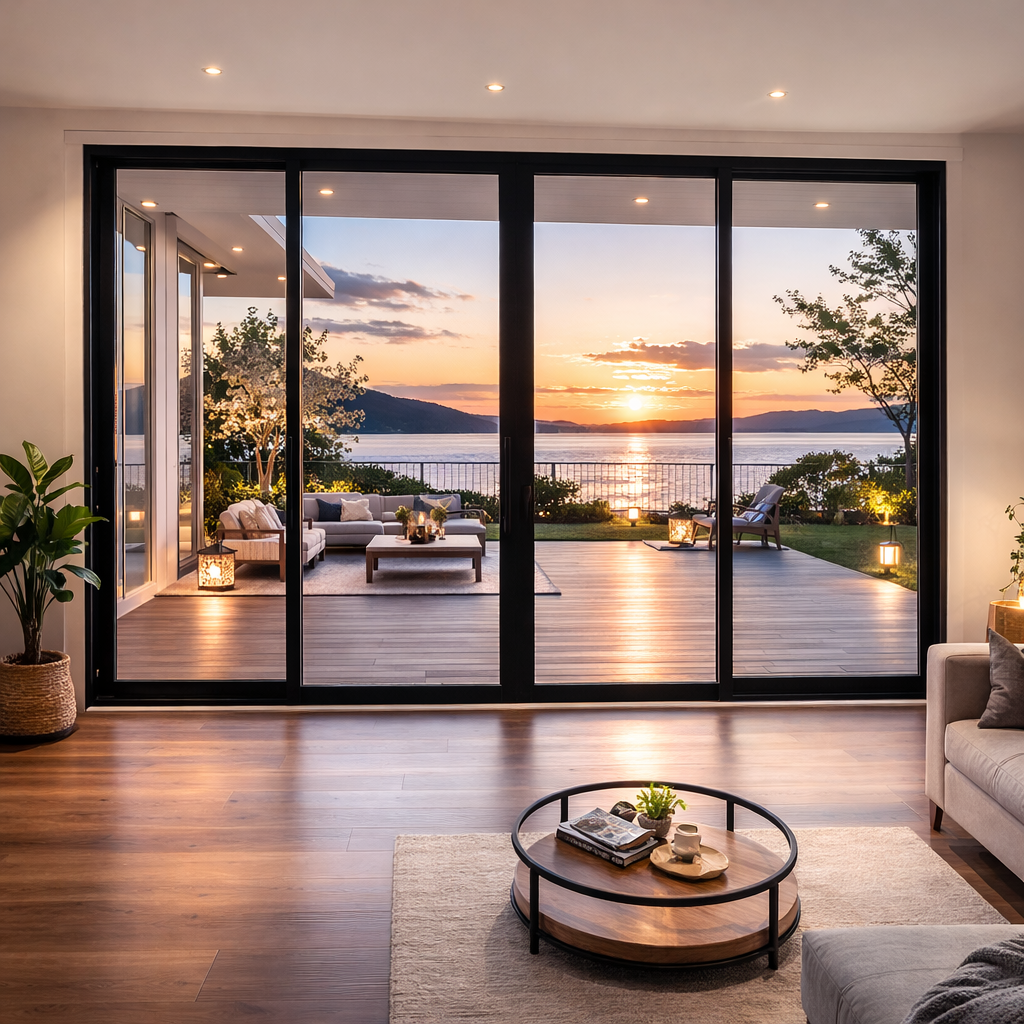

Space optimization drives the popularity of sliding systems. These doors operate on parallel tracks, requiring no swing clearance. Track selection is critical for performance. Flush tracks offer seamless transitions between indoor and outdoor spaces but require sophisticated sub-sill drainage to manage water infiltration. Weather-rated stepped sills provide superior water resistance but create a physical threshold. The choice depends on the exposure of the installation site.
The necessity of heavy-duty, stainless steel precision rollers cannot be overstated for oversized panels. Standard nylon rollers will flatten and fail under the immense weight of large-format insulated glass. Stainless steel tandem rollers distribute the weight evenly, ensuring smooth, low-friction operation and preventing track damage over the lifespan of the modern glass doors. We always specify precision-bearing rollers for panels over 400 pounds.
Bi-fold systems completely remove the barrier between interior and exterior environments. The panels fold and stack against the wall, opening up the entire aperture. This indoor-outdoor flow requires precise engineering to ensure the panels align perfectly when closed, engaging the multi-point locking mechanisms to create a weather-tight seal. The hardware must handle the dynamic loads of multiple panels folding simultaneously.
System support dictates structural requirements. Top-hung systems suspend the doors from the header, ensuring smooth operation and allowing for low-profile floor guides. However, this requires a massive, deflection-free structural beam above the opening. Bottom-rolling systems place the load on the floor track, reducing header requirements but demanding robust sill construction to support the concentrated weight of the stacked panels.
Pivot doors utilize offset pivot hinges rather than traditional side hinges, allowing for massive, oversized statement entryways. The pivot mechanism distributes the door's weight directly into the floor and header, enabling the operation of panels that would tear standard hinges from the frame. This design accommodates extreme widths and heights, creating dramatic architectural focal points.
Specific hardware requirements are vital to prevent warping and ensure a weather-tight seal. Hydraulic closers concealed in the floor or header control the swing speed and prevent slamming. Multi-point locks are essential to pull the massive panel tight against the weatherstripping at the top, bottom, and sides, counteracting the natural tendency of large panels to bow under wind loads.
Traditional hinged operation combined with modern, narrow-stile aluminum profiles offers a classic aesthetic with contemporary performance. These systems utilize heavy-duty butt hinges or continuous gear hinges to support the glass weight. The aluminum profiles feature internal chambers designed to anchor the hinge screws securely, preventing tear-out over time.
Evaluating hinge capacity and swing clearances is necessary during the design phase. Outswing configurations offer superior wind resistance, as wind pressure pushes the door tighter against the weather seals. Inswing doors require careful sill design to manage water runoff. Both configurations demand adequate floor space to accommodate the swing arc without obstructing traffic flow.
Extrusion quality dictates the structural lifespan of the door. Commercial-grade extrusions feature thicker walls and reinforced internal chambers designed to handle high traffic and heavy glass loads. Standard residential-grade aluminum often utilizes thinner walls to reduce costs, making it susceptible to bending and hardware failure under stress. Specifying the correct wall thickness is critical for oversized openings.
Extrusion thickness directly prevents deflection and hardware tear-out. When heavy doors swing or slide, the momentum transfers immense force to the hinges and rollers. Thin aluminum walls will fatigue and eventually fail, causing the door to sag and drag. Robust, multi-chambered profiles provide the necessary anchoring depth for heavy-duty fasteners, ensuring the hardware remains secure.
Glazing options significantly impact thermal performance. Double-pane insulated glass units (IGUs) are the standard, featuring two lites of glass separated by a spacer. Triple-pane IGUs add a third lite and a second insulating cavity, drastically improving the U-factor. The choice between double and triple glazing depends on the severity of the local climate and the strictness of energy codes.
Advanced technologies mitigate heat transfer within the IGU. Argon or Krypton gas fills replace standard air in the cavity, reducing convective heat transfer. Warm-edge spacers replace highly conductive aluminum spacers, reducing condensation at the glass perimeter. Specific Low-E (low-emissivity) coatings reflect infrared heat while allowing visible light to pass, optimizing both winter heat retention and summer heat rejection.
Building codes mandate safety glazing in all doors. Clear tempered glass is the standard safety option; it undergoes a rapid heating and cooling process that increases its strength. When broken, it shatters into small, blunt pebbles rather than dangerous shards. However, tempered glass offers limited security against forced entry.
Laminated glass provides superior security, sound dampening, and impact resistance. It consists of two lites of glass bonded together with a tough plastic interlayer (typically PVB or SGP). If the glass breaks, the interlayer holds the shards in place, maintaining the building envelope. Commercial storefronts and high-end homes in coastal regions frequently require specialized impact-rated laminated glazing to meet stringent hurricane codes.
The surface finish protects the aluminum substrate from oxidation and determines the visual aesthetic. Choosing the right finish depends on the project's budget, location, and required durability.
| Finish Type | Process Description | Durability & Resistance | Best Application |
|---|---|---|---|
| Anodizing | Electrochemical process that thickens the natural oxide layer. Integrates with the metal. | Excellent scratch resistance. Cannot peel or flake. Limited color options. | High-traffic commercial areas, modern residential designs. |
| Powder Coating | Dry powder applied electrostatically and cured under heat to form a hard skin. | Good impact resistance. Vast color variety. Susceptible to chalking under extreme UV. | Standard residential and commercial projects inland. |
| PVDF (Liquid) | Resin-based liquid coating (fluoropolymer) baked onto the aluminum. | Premium UV resistance, excellent color retention, high resistance to salt spray. | Coastal environments, high-rise buildings, extreme weather zones. |
Locking mechanisms must secure the building envelope against both forced entry and severe weather. Multipoint locking systems engage the frame at several points simultaneously, distributing the locking force along the stile. This is critical for high-wind resistance, preventing the door from bowing and breaking the weather seal. Standard commercial deadbolts offer basic security but lack the structural integration of multipoint systems.
Commercial storefront installations require specific hardware to manage high traffic and ensure life safety. Panic hardware (crash bars) allows for rapid egress during emergencies. Heavy-duty overhead concealed closers manage the door's swing, preventing damage from wind gusts and ensuring the door latches securely after each use. These components must integrate seamlessly with the aluminum profiles.
ADA accessibility compliance dictates threshold heights and opening force limits. Flush sills provide barrier-free access but complicate water management. Weather-rated high-dam sills offer superior water resistance but may require ramps to meet ADA height restrictions. Furthermore, the door hardware must operate smoothly, ensuring the force required to open the door remains within mandated limits for accessibility.
The critical nature of header design cannot be ignored. Aluminum door frames are not load-bearing structures. The building's structural header must carry the weight of the wall and roof above the opening. If the header deflects (sags) under load, it transfers that weight directly onto the door frame. This causes the frame to rack, resulting in binding doors, failed weather seals, and ultimately, shattered glass. We require a maximum header deflection of L/720 for large sliding systems.
Proper water management systems are essential to prevent interior water damage. The installation must include a continuous flashing membrane that integrates the door frame with the building's weather-resistant barrier. Subsills act as a secondary drainage plane beneath the door track, collecting any water that bypasses the primary seals and directing it outward through engineered weep holes.
Performance verification ensures the installed product meets the specified criteria. Buyers must look for industry-standard certifications. AAMA (American Architectural Manufacturers Association) ratings verify structural and air/water performance. NFRC (National Fenestration Rating Council) labels certify thermal performance metrics like U-factor and SHGC. Miami-Dade County product approvals or Florida Building Code (FBC) certifications are mandatory for verifying impact resistance in hurricane zones.
A: Anodizing is an electrochemical process that thickens the aluminum's natural oxide layer, creating a highly scratch-resistant, metallic finish that cannot peel. Powder coating applies a dry powder that is baked into a hard, durable skin, offering a vast array of colors but sitting on top of the metal rather than integrating with it.
A: Large panels are susceptible to bowing under heavy wind loads. Multi-point locks secure the door at the top, middle, and bottom simultaneously. This distributed locking force pulls the entire panel tight against the weatherstripping, preventing air and water infiltration while increasing security.
A: Aluminum is highly conductive. A thermal break involves splitting the interior and exterior aluminum extrusions and joining them with a low-conductivity material, typically a rigid polyamide strut. This barrier prevents exterior cold or heat from transferring through the metal frame into the building interior.
A: A DP rating measures a door assembly's resistance to wind, water, and structural loads. It indicates the maximum pressure the unit can withstand before failing. Higher DP ratings are required in coastal areas and high-wind zones to ensure the doors do not blow in or leak during severe storms.
A: Flush tracks provide a seamless transition but are inherently less water-resistant than stepped sills. To make them weather-tight, they require sophisticated, engineered sub-sill drainage systems beneath the floor level to capture and route water away from the interior. They are best used in protected areas.
