The architectural shift toward expansive glass, indoor-outdoor living, and minimalist sightlines has made metal-framed fenestration a standard in contemporary residential design. Homeowners and builders often struggle to balance aesthetic desires, such as ultra-slim profiles, with structural integrity, strict energy codes, and long-term weatherproofing. Systematically evaluating frame engineering, thermal performance, and hardware specifications is necessary to select modern aluminum doors that deliver on both aesthetics and daily operational reliability without overspending. You have to look past the showroom appeal and dig into the extrusion profiles, the glass packages, and the installation requirements. A beautiful door that leaks air or binds on its track becomes a massive liability. We need to approach this selection process by looking at the hard data: wind load ratings, thermal break materials, and structural header requirements. This ensures the final installation performs exactly as intended under real-world conditions.
Establishing baseline requirements for sightlines versus structural demands is the first step in door selection. Ultra-narrow frame thicknesses look spectacular on paper but must withstand high wind loads and support heavy glass panels in the field. Engineers calculate these loads to ensure the frames do not deflect under pressure. You must match your aesthetic vision with the physical realities of your building site. High-exposure areas demand more robust profiles to maintain structural integrity over time. When we frame out a rough opening for a massive multi-slide system, the deflection limits of the header above dictate everything. If you push for a frame that is too thin for the required glass weight, the system will eventually sag, causing the rollers to grind and the weatherstripping to fail.
We often see designs calling for minimal vertical stiles. While achievable, this requires upgrading the internal reinforcement of the extrusion. You cannot cheat physics. The glass acts as a sail, catching wind pressure that transfers directly to the aluminum frame. If the frame lacks the necessary moment of inertia, it bows. This bowing breaks the weather seal and allows water infiltration. Therefore, reviewing the manufacturer's structural test reports for the specific size and configuration you intend to install is a mandatory step.
Defining U-factor and Solar Heat Gain Coefficient (SHGC) targets depends entirely on regional climate zones and local building codes. Aluminum has high thermal conductivity, meaning it transfers heat and cold easily. Modern manufacturing solves this through advanced thermal breaks. You must select frames and glazing that meet or exceed local energy requirements to ensure interior comfort and reduce HVAC loads. In northern climates, a low U-factor is the priority to keep interior heat from escaping. In southern, sun-drenched regions, a low SHGC is necessary to block solar radiation from turning the living room into a greenhouse.
The thermal break is the unsung hero here. Older aluminum frames were continuous pieces of metal from inside to outside. When it got cold outside, the inside frame got cold, leading to condensation and frost on the interior metal. Today, we use polyamide struts to physically separate the interior and exterior extrusions. This stops the thermal bridge. When evaluating different systems, look at the width of the thermal break. A wider strut generally provides better insulation. Pair this with a high-performance glass package, and you can achieve energy ratings that rival or beat traditional wood or vinyl systems.
Assessing how the door will be used daily determines the appropriate threshold type and hardware durability. A primary patio entrance requires heavy-duty rollers and a weather-resistant sill. Secondary access points might prioritize flush thresholds for seamless transitions. High-traffic areas demand commercial-grade hinges and locking mechanisms to withstand constant operation without premature wear. Think about a family with kids and dogs constantly running in and out. A delicate, ultra-low-profile track might look great, but it will fill with dirt and pet hair, requiring constant cleaning to keep the panels moving smoothly.
For heavy use, we specify raised sills with robust weatherstripping. They provide a physical barrier against wind-driven rain and debris. If the design absolutely requires a flush sill to blend the interior floor with the exterior patio, you have to engineer a comprehensive drainage system beneath the track. This involves custom sill pans, weep holes, and a grated trench drain on the exterior. You are trading operational simplicity for aesthetic continuity, which means the hardware and the installation must be flawless to prevent water damage.
Leveraging aluminum's low weight combined with high tensile strength enables oversized glass panels. These large panels remain easy to operate and place less stress on the home's structural framing than heavy steel alternatives. This specific material advantage allows architects to design massive openings that flood interiors with natural light while maintaining effortless daily functionality. A panel that is ten feet tall and six feet wide holds an enormous piece of glass. If that frame were made of steel, the sheer weight would require specialized motorized hardware just to move it.
Aluminum keeps the dead load manageable. This means we can use precision-engineered stainless steel rollers that allow a homeowner to open a massive sliding panel with one hand. The structural framing of the house also benefits. Less dead weight on the header means less potential for long-term deflection. This strength-to-weight ratio is why aluminum dominates the large-format fenestration market. It provides the structural rigidity needed to hold heavy double or triple-pane glass without becoming too heavy to operate manually.

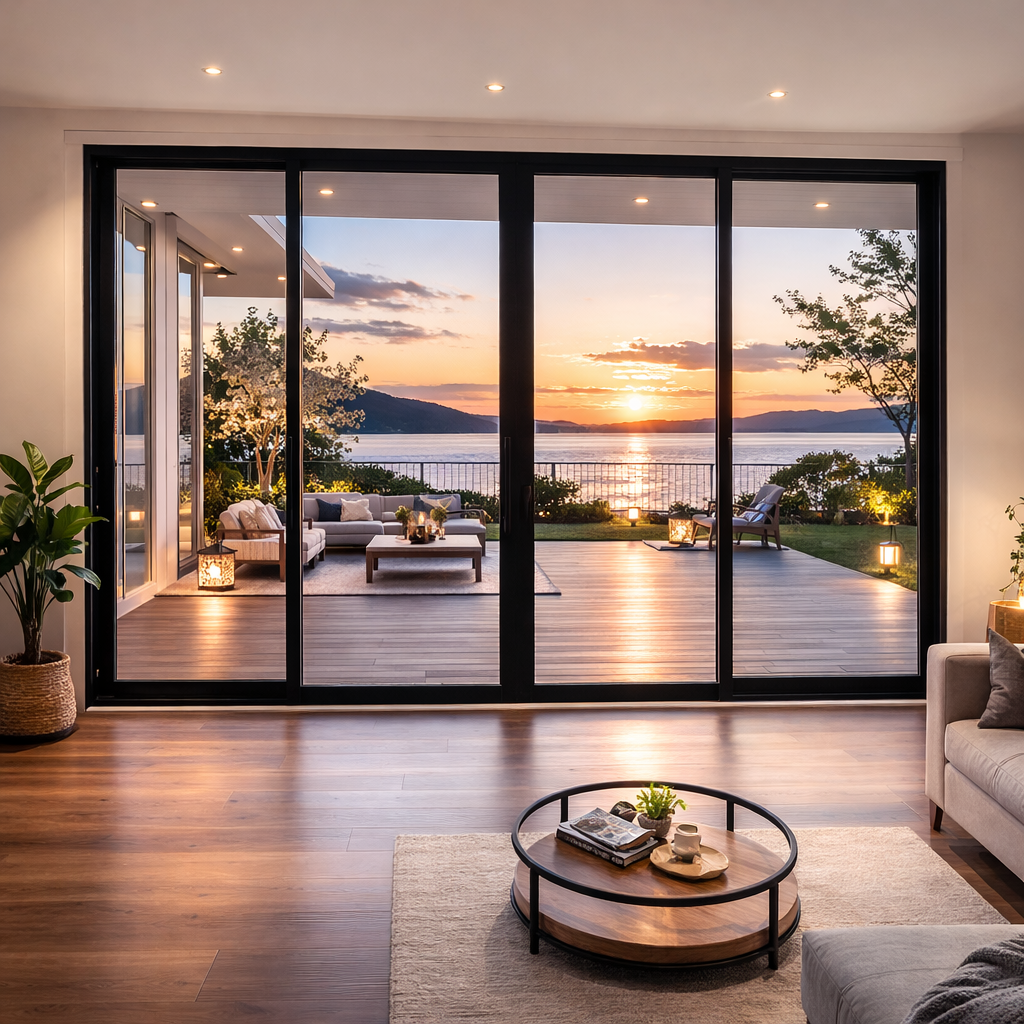

Standard sliding systems feature two or three panels on a single track where one or more panels bypass each other. They are best for balconies, patios, and terraces looking for a reliable solution with a smooth operational footprint. The main drawback is that this configuration limits the physical opening to roughly half or three-quarters of the total frame width. You always have at least one fixed panel taking up space. However, they are highly reliable because the mechanics are straightforward. The rollers sit on a raised track, and the panels simply glide back and forth.
When specifying standard sliders, pay attention to the roller assemblies. We look for tandem stainless steel rollers with sealed precision bearings. Cheap nylon rollers will flatten out over time under the weight of heavy glass, causing the door to drag. The track itself should have a replaceable stainless steel cap. Aluminum tracks can wear down from the constant friction of the rollers, but a stainless cap ensures decades of smooth operation.
These systems utilize multiple panels that slide and stack or pocket completely into walls. Lift-and-slide hardware drops the panel directly onto the track for a superior weather seal when closed. They are excellent for maximizing unobstructed views and creating seamless indoor-outdoor transitions. However, they require significant wall depth for pockets, and the complex tracks require regular debris clearance. A four-panel multi-slide system needs a track that is four lanes wide. That is a massive footprint on the floor.
The lift-and-slide mechanism is a game-changer for weatherproofing. When you turn the handle, a carriage system lifts the entire panel off the weatherstripping, allowing it to roll effortlessly. When you close it and turn the handle back, the panel drops down, compressing the heavy-duty rubber gaskets against the sill and the frame. This creates a seal that standard sliders simply cannot match. It is the only way we recommend doing massive sliding systems in high-wind or coastal environments.
Bi-fold doors consist of panels that fold accordion-style to one or both sides of the opening. They are best for opening up to 90% of the aperture without needing deep wall pockets. Drawbacks include stacked panels intruding on interior or exterior patio space. Additionally, the multiple hinges increase maintenance points across the system. Every connection between panels is a potential point of failure or air leakage if not adjusted perfectly.
The weight of a bi-fold system is typically top-hung. This means the structural header above the door carries the entire load of the glass and frames. If that header deflects even a quarter of an inch, the panels will bind, and the door will not open. We always require a structural engineer to size the header specifically for top-hung bi-folds. The bottom track is mostly for guidance, not weight-bearing. You also have to consider the swing space. When the panels fold open, they need room to stack, which can eat into usable patio or living room space.
Pivot systems use large single panels rotating on a top and bottom pivot box rather than traditional side hinges. They are best for dramatic, oversized entryways utilizing custom aluminum doors. These doors are difficult to fully weather-seal compared to traditional hinged doors and require substantial floor clearance to operate properly. Because they pivot on an axis inset from the frame, a portion of the door swings inside while the other portion swings outside.
The main challenge with pivot doors is the lack of a continuous stop around the perimeter. A standard hinged door closes against a frame stop, compressing the weatherstripping. A pivot door has to swing through the frame, meaning it relies on sweep seals and brush gaskets to stop air and water. In a protected entryway with a large overhang, this is fine. In a fully exposed location facing driving rain, a pivot door will likely leak. We reserve these for specific architectural statements where weather exposure is mitigated by the building design.
French doors offer traditional swing operation utilizing modern, narrow-stile aluminum profiles. They are best suited for standard patios, side entries, or Juliet balconies where limited space restricts sliding options. They provide excellent weather sealing and classic functionality upgraded with contemporary materials. A good aluminum French door will have a multi-point locking system that engages the frame at the top, bottom, and middle, pulling the panel tight against the weatherstripping.
We use these frequently when replacing older wood doors. The aluminum frames can be made much thinner than wood, increasing the visible glass area. You get the traditional operation but with a modern, clean look. The hinges are critical here. Heavy glass requires heavy-duty, adjustable hinges. Over time, a heavy door panel can sag slightly. Adjustable hinges allow a technician to tweak the alignment without having to remove the door or re-drill the frame.
Polyurethane or polyamide barriers separate the interior and exterior aluminum extrusions. This separation stops thermal bridging and manages extreme temperature fluctuations without frame warping. Without this critical component, exterior aluminum doors will sweat in cold weather and transfer intense heat during summer months. The structural integrity of the door relies on how these two aluminum halves are joined to the thermal strut. Manufacturers use a process called knurling and rolling to mechanically lock the aluminum into the polyamide.
If this rolling process is not precise, the frame can lose its shear strength. When wind hits the door, the exterior half of the frame tries to move independently of the interior half. A high-quality thermal break assembly prevents this shear movement, ensuring the door remains rigid. We always check the manufacturer's specifications for the shear strength of their thermal break assemblies, especially for oversized panels in high-wind zones.
Evaluating dual versus triple glazing is essential for modern applications. Triple glazing offers superior insulation for extreme climates, while dual glazing suffices for moderate zones. Low-E coatings and inert gas fills like Argon or Krypton drastically improve HVAC efficiency by reflecting heat. Selecting tinted glass helps with solar heat and glare control. Frosted glass provides necessary privacy for entryways or bathrooms. Acoustic laminated glass is highly recommended for high-noise urban environments to block exterior sound transmission.
The glass package is where you fine-tune the performance of the door. The aluminum frame holds it together, but the glass does the heavy lifting for energy efficiency. We look at the spacer bar between the panes of glass. Older windows used aluminum spacers, which conducted heat right at the edge of the glass, causing condensation. Modern high-performance units use warm-edge spacers made of silicone or structural foam. This small detail significantly improves the overall U-factor of the door assembly. Furthermore, the thickness of the glass itself must be engineered for the wind load. Large panels often require tempered or laminated glass that is substantially thicker than standard window glass.
Evaluating multi-point locking systems is crucial for forced-entry resistance. Three-point or five-point locks secure the panel at multiple vertical locations. The natural physical strength of aluminum frames acts as a severe deterrent against physical breaches compared to wood or vinyl. Assessing the load-bearing capacity of stainless steel tandem rollers ensures sliding systems operate smoothly for decades. A heavy door is only as good as the hardware that moves it and locks it.
We specify European-style multi-point locks with shoot bolts that extend into the top header and bottom sill. This not only provides excellent security but also pulls the door panel tight against the weatherstripping across its entire height. For sliding doors, the locking mechanism should feature anti-lift pins. These prevent an intruder from simply using a pry bar to lift the sliding panel off its track from the outside. The handles and escutcheons should be solid brass or stainless steel, not plated zinc, to withstand daily use and environmental exposure.
Aluminum provides the modern, industrial aesthetic of steel at a fraction of the weight. It inherently resists rust, making it ideal for wet climates. Steel can achieve even narrower sightlines due to its higher tensile strength, but it requires intensive maintenance to prevent corrosion over time. If a steel frame gets scratched down to the bare metal, it will begin to rust immediately. Aluminum, on the other hand, forms a protective oxide layer when exposed to air, preventing further degradation.
The weight difference is massive. A steel door requires heavy-duty structural framing around the rough opening just to support the hinges. Aluminum allows for the same visual impact without requiring the builder to over-engineer the surrounding walls. Furthermore, thermally broken steel doors are incredibly complex to manufacture, making them significantly more expensive than high-performance aluminum equivalents.
Aluminum eliminates the warping, rotting, and frequent repainting cycles associated with wood. It offers a significantly lower maintenance burden and superior dimensional stability under extreme temperature fluctuations. Wood doors require constant upkeep. If the paint or varnish fails, moisture gets into the wood, causing it to swell and bind in the frame. Eventually, it rots. Aluminum remains dimensionally stable regardless of humidity or temperature changes.
Fiberglass is durable but lacks the sleek, metallic finish and ultra-slim profiles that aluminum extrusions can achieve. Fiberglass frames are typically thicker, mimicking the look of traditional wood windows. If the architectural goal is a minimalist, contemporary design with maximum glass area, fiberglass simply cannot match the narrow sightlines of an engineered aluminum profile.
When planning your project, break down the primary value drivers. Size, custom colors, specialized glass, and motorized operation all influence the final specification. Investing in high-quality aluminum doors yields a long-term return on investment through increased property value and drastically reduced maintenance requirements. You have to look at the lifespan of the product. A cheap vinyl door might last ten years before the hardware fails or the frame warps. A properly specified aluminum door will outlast the roof on the house.
Motorization is becoming increasingly common for massive multi-slide systems. If you are planning for motorized operation, you must coordinate with the electrician early in the framing stage to run power to the header. The motors are typically concealed within the top track or the wall pocket. Retrofitting a motor after the drywall is finished is a nightmare. Plan the infrastructure early to accommodate the specific hardware requirements of the door system.
| Material | Maintenance Level | Structural Strength | Sightline Profile | Thermal Stability |
|---|---|---|---|---|
| Aluminum | Low | High | Ultra-Slim | Excellent (with thermal break) |
| Steel | High | Very High | Minimalist | Moderate |
| Wood | High | Medium | Thick | Poor (susceptible to warping) |
| Fiberglass | Low | Medium | Moderate | Good |
Large spans of heavy glass require engineered headers to prevent deflection. If a header sags even a fraction of an inch, it can crush the door frame or bind the sliding tracks. Structural engineers must calculate the exact load requirements before installation begins to ensure smooth, long-term operation. We see this failure constantly on job sites where the framer used standard lumber for a twenty-foot opening. Over time, the wood creeps and sags under the weight of the roof and the floor above.
For large aluminum door systems, we almost always specify steel I-beams or engineered glulam beams for the header. The manufacturer will provide a maximum allowable deflection tolerance, usually something like L/720 or a maximum of 1/8 inch over the entire span. The structural engineer must design the header to meet this strict tolerance. If the header deflects more than the allowable limit, the door panels will get stuck, and the glass could shatter under the pressure.
Custom-fabricated sill pans, weep holes, and sub-sill drainage are absolute necessities to prevent water intrusion. This is especially critical with flush-track systems that lack a traditional physical barrier against driving rain. Proper water management directs moisture away from the interior subfloor, preventing costly structural damage. You cannot rely on caulking to keep water out of a door system. Caulking eventually fails.
We use a redundant drainage approach. First, a custom sheet metal sill pan is installed in the rough opening before the door frame goes in. This pan has a back dam and end dams, and it slopes toward the exterior. If water gets past the door frame, it hits the pan and drains out. Second, the door frame itself has engineered weep holes that channel water out of the tracks. Finally, we use high-quality flashing tapes to integrate the sill pan and the door frame into the building's weather-resistant barrier. This creates a continuous drainage plane that protects the framing.
Standard general contractors often lack the specialized suction equipment, laser-leveling tools, and manufacturer-specific training required for oversized exterior systems. Certified installers understand the precise tolerances needed for heavy panels. Relying on untrained crews frequently leads to operational failures, voided warranties, and severe water leaks. Installing a massive multi-slide door is not like hanging a standard pre-hung front door. It requires precision alignment.
The sill must be perfectly level. We use rotary laser levels to shoot the sill across the entire opening. If the sill is out of level by even a sixteenth of an inch, the heavy panels will roll downhill on their own or bind in the tracks. The jambs must be perfectly plumb, and the frame must be perfectly square. Certified installers know exactly where to place the shims to support the weight of the frame without bowing the extrusions. They also know how to properly glaze the heavy panels into the frame on-site, using specialized glass cups and lifting equipment.
A: Raw aluminum conducts heat, but modern thermally broken frames paired with Low-E glass meet or exceed strict energy codes. The polyamide barrier stops thermal transfer completely, preventing interior condensation and reducing HVAC loads.
A: Standard sizes are readily available, but custom oversized panels require specific engineering. High-end multi-slide systems are premium investments that demand precise structural headers and specialized heavy-duty hardware to handle the increased glass weight.
A: Aluminum does not rust; it oxidizes. Anodizing and high-performance AAMA 2605 powder coating protect the metal from degrading, ensuring longevity and structural integrity even in harsh, salt-heavy coastal areas.
A: Engineering limits dictate size, but panels can often reach 10 to 12 feet in height. This depends heavily on local wind load requirements, the structural header capacity, and the hardware's maximum weight rating.
A: High-quality aluminum frames boast a 30-plus year lifespan. However, moving parts like stainless steel rollers, multi-point lock mechanisms, and rubber weatherstripping may need replacement before the frame itself degrades.
A: Flush sills trade seamless transitions for reduced water resistance. They require deep exterior overhangs, custom sill pans, and integrated sub-sill drainage channels to prevent interior flooding during heavy, wind-driven rain.
