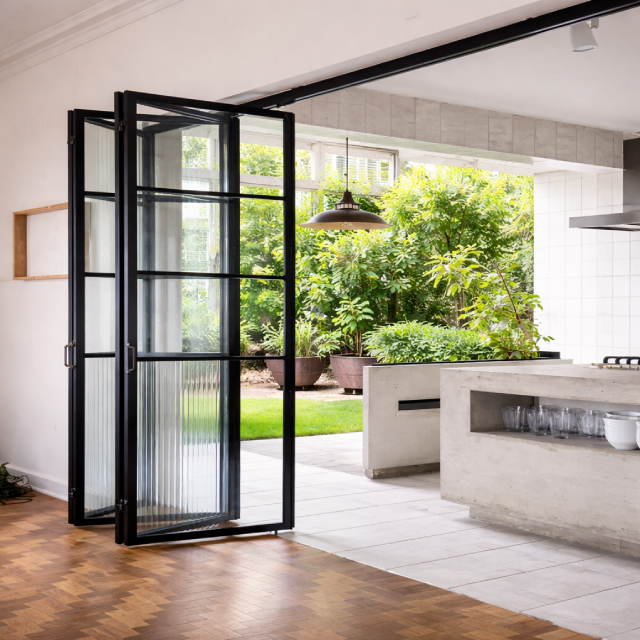

The architectural shift toward seamless indoor-outdoor living makes wide-span openings standard in premium residential and commercial builds. Spanning distances over 15 feet introduces significant engineering challenges. Standard sliding or hinged systems fail at scale due to excessive weight, frame warping, and compromised weather seals. Wide openings require systems that support massive glass loads while maintaining effortless operation and strict thermal efficiency. This guide provides a technical evaluation framework for selecting aluminum bifold doors. We focus on structural requirements, thermal performance, hardware specifications, and installation realities to ensure long-term reliability. You need to know exactly what structural headers, track systems, and glazing packages will prevent deflection and water ingress. We break down the exact specifications required to keep these massive moving walls operating smoothly year after year.
Parameters for what constitutes a wide opening typically exceed 12 to 15 feet. As the span increases, panel count directly impacts structural load. Each additional panel adds significant weight, requiring robust framing and track systems to distribute the load effectively. Understanding the relationship between opening width and panel configuration is the first step in designing a functional system. When you push past 20 feet, the dead load of the glass alone can exceed a thousand pounds. This requires a fundamental shift in how the surrounding wall is framed. You cannot simply drop a standard header over a 25-foot opening and expect the doors to slide. The framing must account for the stacked weight of the panels when the doors are fully open, which concentrates the load on one side of the opening.
The requirement for minimal header deflection is often limited to 1/8 inch or less over the entire span. If the header sags even slightly, the upper track compresses the door panels, causing binding and operational failure. Structural engineers must calculate the dead load of the aluminum bifold doors and design a header capable of maintaining strict deflection tolerances. In the field, we often see engineered lumber (LVL or glulam) or steel I-beams specified for these headers. The framing crew must install these headers perfectly level. Any crown in the beam must be oriented correctly, and the connections to the king studs or steel columns must be rigid enough to prevent any lateral movement under wind load.
Evaluating wind load and structural performance requirements is necessary based on geographic location, elevation, and local building codes. DP ratings indicate a door's ability to withstand positive and negative wind pressures, as well as water infiltration. High-rise buildings or coastal properties demand significantly higher DP ratings to ensure structural stability during severe weather events. A DP rating of 50 means the door can withstand a wind pressure of 50 pounds per square foot, which roughly correlates to a 137 mph wind. You must verify the local code requirements before specifying the door system. Installing a low-DP door in a hurricane zone will result in blown-out glass and catastrophic water damage.
Analysis of material strength-to-weight ratios clearly favors aluminum. Vinyl warps under heavy glass loads and extreme temperatures, making it unsuitable for wide spans. Wood requires excessive maintenance and is susceptible to moisture damage. Extruded aluminum provides the necessary rigidity to support massive glass panels without warping, establishing it as the standard for wide spans. When you are dealing with panels that are 10 feet tall and 3 feet wide, the frame material must be exceptionally stiff. Aluminum extrusions can be engineered with internal webbing that maximizes strength while keeping the overall weight manageable. This allows for narrower sightlines, maximizing the glass area and the view.
| Material | Strength-to-Weight Ratio | Maintenance Requirement | Suitability for Wide Spans (>15ft) |
|---|---|---|---|
| Extruded Aluminum | Excellent | Low | Highly Recommended |
| Solid Wood | Moderate | High (Painting/Sealing) | Limited (Prone to sagging) |
| Vinyl (PVC) | Poor | Low | Not Recommended |
| Fiberglass | Good | Low | Acceptable (Limited profiles) |
Operational trade-offs exist between different door types. Bifold doors offer up to 90% clear opening space, creating a truly unobstructed transition between indoor and outdoor environments. Multi-slide systems require deep wall pockets or stacked panels that obstruct views and consume valuable floor space. If the architectural goal is to completely open a wall to a patio or deck, bifolds are the superior choice. They fold neatly to the side, whereas a multi-slide system will always leave at least one panel width of obstruction unless you build a complex and expensive pocketing system into the adjacent wall.
Continuous polyamide struts separate the interior and exterior aluminum extrusions, preventing thermal bridging. This technology significantly impacts the U-factor and Solar Heat Gain Coefficient (SHGC), ensuring the system meets stringent energy code compliance. Effective thermal breaks are vital for maintaining comfortable indoor temperatures near large glass surfaces. Without a thermal break, the aluminum frame acts as a highly efficient conductor, pulling heat out of the building in winter and radiating heat into the building in summer. The polyamide strut creates a physical barrier that stops this energy transfer. When reviewing specifications, look for systems with wide thermal struts (at least 24mm) for optimal performance.
Evaluating double-pane versus triple-pane insulated glass units (IGUs) is essential for optimizing thermal performance. Low-E coatings and argon gas fills play a role in managing climate-specific thermal loads. For urban or high-noise environments, acoustic considerations, measured by STC ratings, guide the selection of specialized laminated glass packages for custom patio doors. The glass makes up the vast majority of the door's surface area, so the IGU specification dictates the overall performance of the system. In cold climates, a triple-pane IGU with dual Low-E coatings and argon fill is often necessary to meet energy codes. In hot climates, a double-pane IGU with a strong solar control Low-E coating on the number two surface is usually sufficient.
Top-hung systems offer benefits for smooth operation and debris clearance, offset by the requirement for heavy-duty structural headers. Bottom-rolling systems are ideal for retrofits where header support is limited, transferring the weight to the floor track. Evaluating stainless steel versus polymer rollers determines wear resistance and load capacity over time. Top-hung systems are generally preferred for new construction because they keep the complex roller mechanisms out of the dirt and moisture that inevitably collect in the bottom sill. However, if you are remodeling an existing space and cannot easily upgrade the header, a bottom-rolling system is the practical alternative. Always specify sealed stainless steel bearings for the rollers to prevent premature failure.
Powder coating versus anodized finishes present different aesthetic and durability profiles. AAMA 2604 and AAMA 2605 specifications dictate fade and chalk resistance standards. Marine-grade pre-treatments are mandatory for coastal installations prone to salt-spray corrosion, ensuring the finish remains intact in harsh environments. Anodizing actually changes the surface chemistry of the aluminum, creating an extremely hard, scratch-resistant finish. Powder coating applies a baked-on paint layer that offers a wider range of colors. If the project is within a mile of the ocean, you must specify an AAMA 2605 powder coat with a chrome-free marine pre-treatment, or the salt air will pit and destroy the finish within a few years.
European-style multi-point locking mechanisms secure the panels at multiple frame connection points. Heavy-duty shootbolts and interlocking profiles resist forced entry across wide spans. Impact-rated glass options provide additional security and are often required by code in storm-prone regions. A standard single-point latch is entirely inadequate for a door system that might be 20 feet wide. The multi-point lock engages hooks or bolts at the top, bottom, and middle of the active panel simultaneously. The intermediate panels are secured with concealed shootbolts that drive deep into the head and sill tracks. This creates a rigid, unified wall of glass and metal that is highly resistant to prying or forced entry.
Understanding manufacturer limits on panel width, typically up to 39 inches, and height, up to 120 inches or more, dictates the number of panels required. Pushing these limits requires specialized engineering to ensure the panels remain operable and structurally sound under wind loads. Taller and wider panels mean fewer vertical sightlines, which architects generally prefer. However, larger panels are heavier and harder to maneuver. A 10-foot tall, 3-foot wide panel with double glazing weighs over 150 pounds. The hardware must be rated for this specific weight, and the installation crew must be prepared to handle these massive units safely.
Space planning considerations dictate the choice between inswing and outswing configurations. Outswing is standard for weather resistance and interior space preservation. Inswing is utilized when exterior clearance is restricted, though it requires careful management of interior floor space. Outswing doors are inherently more weather-resistant because wind pressure pushes the door panels tighter against the weatherstripping. Inswing doors rely entirely on the locking mechanism to maintain the seal against wind pressure. If you specify an inswing system, you must ensure the interior floor area remains clear of furniture to allow the doors to fold open.
Integrating a single active panel allows for everyday use without opening the entire bifold system. This traffic door operates independently, providing convenient access while maintaining the structural integrity and weather seal of the larger system. This is a critical feature for any bifold door that serves as a primary entry or exit point. Without a traffic door, you have to unlock and fold back at least two panels just to let the dog out. The traffic door functions exactly like a standard swing door, complete with a lever handle and a keyed cylinder.
Engineering considerations for corner bifold systems that meet at a 90-degree angle without a structural support post create an entirely unobstructed corner opening. This requires massive cantilevered structural support above the opening to carry the roof load. The framing required for a postless corner is complex and expensive. The structural engineer must design a steel moment frame or a heavy cantilevered beam system to support the roof structure above the corner. The door tracks meet at a 90-degree angle, and the panels fold away from the corner, leaving a completely open space. This is a high-end architectural feature that requires precise coordination between the architect, engineer, and framing contractor.
Addressing insect control and solar heat gain for large openings is achieved through wide-span retractable screens and integrated blind systems. These solutions must be engineered to span the same width as the doors without sagging or binding. A standard sliding screen door will not work on a 20-foot opening. You need a pleated or motorized retractable screen system that rolls up into a vertical cassette mounted on the side jamb. These screens use tensioned cables to keep the mesh taut across the wide span. Integrated blinds, which are sealed between the panes of glass in the IGU, offer a maintenance-free shading solution that does not interfere with the folding action of the doors.
High-performance thresholds designed with a raised lip block wind-driven rain. These are necessary for fully exposed exterior applications where water infiltration is a primary concern. The raised profile provides a physical barrier against the elements. The rebated sill creates a step-over, usually about 1.5 to 2 inches high. The door panels close against this raised lip, compressing the weatherstripping and creating a tight seal. If the door is exposed to direct rain and wind, this is the only sill option that will reliably prevent water from entering the building.
Designed for seamless transitions and ADA compliance, flush sills eliminate tripping hazards. They create a continuous floor plane between the interior and exterior, enhancing the visual connection between spaces. The track is recessed into the floor, so the top of the track is flush with the finished floor level. This looks fantastic and is necessary for wheelchair access, but it severely compromises the weather resistance of the door system.
The inherent risk of water ingress with flush sills necessitates integrated exterior drainage systems, such as trench drains, to mitigate this risk. Careful consideration of exposure and overhangs is required when specifying low-profile sills. You cannot install a flush sill on an exposed wall facing prevailing winds and expect it to stay dry inside. If you must use a flush sill, you must install a high-capacity trench drain immediately exterior to the track, and the exterior patio must slope away from the doors at a minimum of 1/4 inch per foot.
| Sill Configuration | Water Penetration Resistance | ADA Compliance | Required Drainage Infrastructure |
|---|---|---|---|
| Rebated (High-Performance) | Excellent (Up to 12 PSF) | No (Creates a step) | Standard weep holes in track |
| Low-Profile (Saddle) | Moderate | Sometimes (Depends on height) | Exterior slope required |
| Flush (Recessed) | Poor | Yes | Mandatory exterior trench drain |
The necessity of consulting a structural engineer cannot be overstated. They must specify steel or engineered lumber headers capable of supporting top-hung systems and maintaining strict deflection limits under load. Do not rely on the framing contractor to guess the header size. The engineer must provide stamped drawings detailing the header material, size, and connection details. If the header deflects after the doors are installed, the upper track will pinch the rollers, making the doors impossible to open. Fixing this requires removing the doors, tearing open the wall, and replacing the header.
The zero-tolerance reality of installing these systems demands perfection. Out-of-plumb rough openings lead to dragging panels, broken seals, and voided warranties. The frame must be perfectly square and level before the panels are installed. We use laser levels to ensure the sill is dead flat across the entire span. If the sill is out of level by even 1/16 of an inch over 10 feet, the panels will not align correctly when closed, and the multi-point locks will not engage. Shimming the track correctly is a tedious but absolutely necessary process.
Utilizing manufacturer-certified installers ensures proper flashing, waterproofing, and alignment. This mitigates the risk of post-installation operational failure and guarantees the system performs as engineered. Installing folding glass doors is not a job for a general carpenter. The flashing details around the sill pan are complex and must be executed perfectly to prevent water from rotting the subfloor. Certified installers have been trained by the manufacturer on the specific assembly and adjustment procedures for that exact door system.
Aluminum bifold doors provide the structural rigidity and thermal performance required to execute wide-span architectural openings successfully. The success of the installation depends entirely on proper specification and precise execution in the field.
A: Maximum widths vary by manufacturer, but systems can span 30 to 40 feet by utilizing multiple panels. Panel widths are typically limited to around 39 inches each to ensure smooth operation and structural stability under wind loads.
A: Top-hung systems offer smoother operation and keep the bottom track clear of debris, but require substantial structural headers. Bottom-rolling systems are better for retrofits where header support is limited, as the weight rests on the floor.
A: Yes, consulting a structural engineer is highly recommended, especially for top-hung systems. They ensure the header can support the dead load of the doors without exceeding strict deflection limits, which causes binding.
A: Thermal breaks use continuous polyamide struts to separate the interior and exterior aluminum extrusions. This prevents heat and cold from transferring through the highly conductive metal frame, improving energy efficiency.
A: Flush sills carry a higher risk of water ingress compared to rebated sills. They require extensive exterior drainage systems, like trench drains, and significant overhangs to mitigate water intrusion effectively.
A: Coastal areas require marine-grade pre-treatments and high-performance finishes meeting AAMA 2605 specifications. These finishes provide superior resistance to salt-spray corrosion, fading, and chalking in harsh environments.
A: They are highly secure when equipped with European-style multi-point locking mechanisms, heavy-duty shootbolts, and interlocking profiles. Impact-rated glass can further enhance security against both intruders and severe weather.
