The architectural demand for expansive daylighting often directly conflicts with stringent energy codes and the structural limitations of traditional framing materials like wood or vinyl. Achieving maximum natural light requires larger glass panes and slimmer frames. This introduces risks related to thermal bridging, structural deflection under wind loads, and long-term weatherproofing degradation. Specifying an aluminum glass window resolves the strength-to-weight dilemma. You must execute a rigorous evaluation of thermal breaks, glazing specifications, and installation realities. We see projects fail when teams ignore the thermal conductivity of metal frames. You need to ensure the final build meets aesthetic, security, and performance criteria without compromising the building envelope. Proper specification bridges the gap between architectural vision and structural reality.
Structural integrity dictates the maximum allowable glass surface area without compromising the building envelope. When you push for larger daylight openings, the framing material must handle immense dead loads. Glass is incredibly heavy. A standard one-inch insulated glass unit weighs roughly six pounds per square foot. Weak frames will sag, bow, or fail under this weight. The success of expansive daylighting relies entirely on the frame's ability to remain rigid while occupying minimal visual space. You cannot achieve massive spans with materials that deflect under their own weight.
Aluminum resists warping, twisting, and expansion cycles better than most alternatives. This high strength-to-weight ratio allows frames to support massive glass weights with minimal profile thickness. You can design larger spans without needing bulky reinforcements. The metal maintains its structural shape under extreme stress. This inherent rigidity ensures that the window operates smoothly and maintains its weather seal over decades. We rely on this material when structural engineers demand strict deflection limits, typically L/175, for large commercial and residential openings.
Compare aluminum frame depths and widths against vinyl and timber. Vinyl requires thick profiles and internal steel stiffeners to achieve basic structural stability. Timber frames are inherently bulky and require constant maintenance. Aluminum offers ultra-slim sightlines. Reducing the opaque frame area directly correlates to measurable increases in daylight harvesting. This satisfies modern, minimalist design aesthetics. You get more glass and less frame, creating a seamless connection to the outdoors. The visual impact of a two-inch aluminum sightline versus a four-inch vinyl sightline is massive when multiplied across a large facade.
Maximizing the glass-to-frame ratio reduces active daytime electrical loads. By displacing artificial light with natural daylight, you lower monthly energy consumption. Spaces feel brighter and more inviting. This daylight harvesting strategy is a core component of sustainable building design. It transforms how a space functions during daylight hours, minimizing the need to flip a switch. Proper orientation and glazing selection ensure this light is usable and not blinding.
Material performance in high-rise or coastal applications is critical. Wind load deflection is a primary failure point for weaker materials. Aluminum excels in these high-stress environments. The rigid profiles resist bending under severe positive and negative wind pressures. This prevents the glass from cracking or popping out of the frame. You maintain a secure, weather-tight envelope even during extreme weather events. Coastal building codes often mandate specific design pressures that only heavy-duty extruded aluminum can meet.
| Material | Strength-to-Weight | Sightline Profile | Deflection Resistance |
|---|---|---|---|
| Aluminum | Excellent | Ultra-Slim (2" - 3") | High |
| Vinyl | Poor | Thick (3.5" - 5") | Low (Requires steel reinforcement) |
| Wood | Moderate | Thick (4" - 6") | Moderate |
| Fiberglass | Good | Moderate (3" - 4") | High |

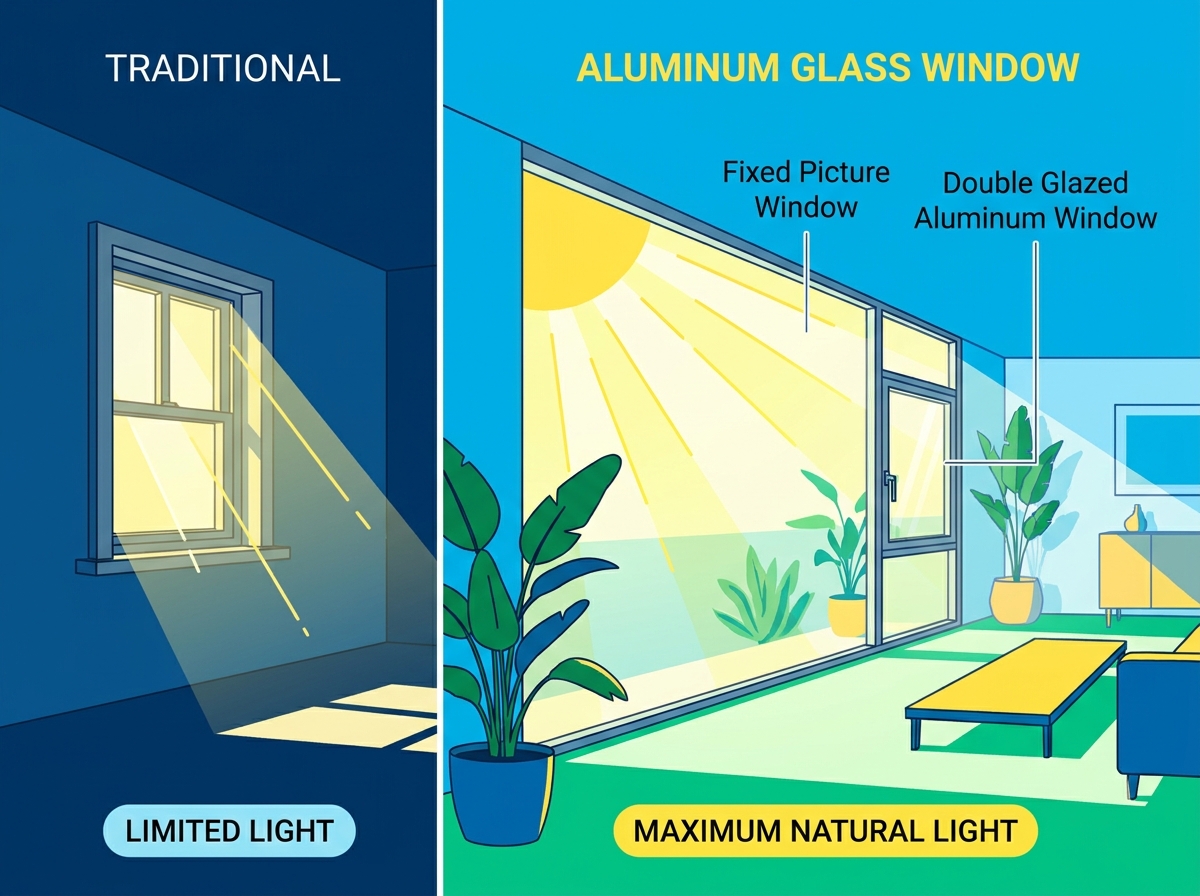

Utilizing a fixed picture window eliminates the need for operable hardware and overlapping sashes. This offers the absolute maximum unobstructed light transmission. Without the bulk of operable components, the frame remains as slim as structurally possible. Strategic placement is key for passive solar heating and daylighting. Consider clerestory applications to push light deep into a room. Floor-to-ceiling spans create dramatic architectural focal points while flooding the interior with sunlight. Fixed units are the workhorses of daylighting strategies.
Specifying a custom glass window is necessary for non-standard architectural openings. Trapezoidal, oversized, or corner-wrap configurations demand precise engineering. Moving away from standard modular sizing introduces engineering limitations and lead-time considerations. Each custom unit requires specific load calculations. The glass thickness and frame depth must be tailored to the unique geometry to ensure structural stability and weatherproofing. You cannot simply scale up a standard extrusion for a massive custom shape without verifying the wind load data.
You must frame the decision between natural light maximization and the necessity of natural ventilation. Fixed units offer the best daylighting. Operable units like casements or awnings provide essential airflow. Balancing daylight harvesting with ventilation manages indoor air quality and humidity levels. This keeps the building interior dry and fresh. Operable aluminum frames impact overall sightline thickness. They require heavier profiles to house hinges, locks, and weatherstripping, slightly reducing the total glass area compared to fixed profiles.
Aluminum has an inherent flaw: high thermal conductivity. Legacy, non-thermally broken frames fail modern energy audits. They act as a bridge, transferring exterior cold or heat directly into the interior space. This leads to massive energy loss and uncomfortable indoor climates. Without intervention, an aluminum frame undermines the insulating value of the glass it holds. You will feel the cold radiating off a solid aluminum frame in the winter.
Modern engineering solves this with thermal break technology. Polyamide struts separate the interior and exterior aluminum extrusions. This halts thermal bridging. The strut acts as an insulating barrier, preventing heat transfer through the metal. This technology is non-negotiable for meeting contemporary energy codes. It transforms a highly conductive material into a high-performance framing solution. We always verify the width of the thermal strut; wider struts generally yield better U-factors.
A double glazed aluminum window is the baseline requirement for balancing expansive natural light with climate control. Single-pane glass is obsolete for conditioned spaces. Argon or krypton gas fills between the panes slow heat transfer. Warm-edge spacers prevent perimeter condensation by insulating the glass edge. The insulating properties of double glazing combine with minimized artificial lighting needs to lower monthly heating and cooling bills. The spacer material is critical; aluminum spacers create a cold edge, while silicone or composite spacers maintain edge temperatures.
Selecting the right Low-E coatings is crucial. You want high Visible Light Transmittance (VLT) while rejecting infrared heat. This manages the Solar Heat Gain Coefficient (SHGC) and U-Factor. Advanced coatings allow sunlight to illuminate the room without turning it into a greenhouse. The Light-to-Solar Gain ratio helps you evaluate how efficiently a glass unit transmits light versus heat. We specify double-silver or triple-silver Low-E coatings depending on the climate zone and solar exposure of the elevation.
| Glazing Type | U-Factor (Typical) | SHGC (Typical) | VLT (Typical) |
|---|---|---|---|
| Clear Double Pane | 0.48 | 0.70 | 0.79 |
| Double Pane with Low-E (Argon) | 0.28 | 0.30 | 0.65 |
| Triple Pane with Low-E (Argon) | 0.18 | 0.25 | 0.55 |
Aluminum offers inherent material strength over vinyl and wood. This provides significant security benefits. Slim-profile aluminum frames accommodate multi-point locking systems easily. They support heavy, impact-resistant security glazing without structural deflection. Intruders find it exceptionally difficult to pry or break these rigid frames. You achieve peace of mind without sacrificing modern aesthetics. When installing laminated security glass, the frame must handle the increased weight without the hinges sagging over time.
Compare anodized finishes versus powder coating. Both offer excellent UV resistance and prevent chalking. Anodizing integrates with the metal surface, offering extreme durability. Powder coating provides a vast array of color options. For coastal applications, specific marine-grade warranties are necessary to combat saltwater corrosion. Proper finish selection ensures the frames look pristine for decades with simple cleaning. We recommend AAMA 2605 compliant finishes for any exterior application exposed to harsh sunlight.
Environmental factors like high indoor humidity and extreme external cold can cause condensation. If the interior frame surface drops below the dew point, water forms. Proper HVAC integration manages indoor humidity. High-quality thermal breaks mitigate the risk by keeping the interior aluminum surface warm. Addressing these factors prevents mold growth and water damage around the window openings. You must ensure the installation includes proper perimeter insulation to prevent cold air from bypassing the frame entirely.
Large expanses of glass impact Sound Transmission Class (STC) ratings. Standard glass transmits noise easily. The density of aluminum profiles combined with asymmetric double glazing provides robust sound dampening. Laminated glass further reduces exterior noise penetration. You can maintain expansive views and natural light while keeping the interior environment quiet and comfortable. Using two different thicknesses of glass in the insulated unit breaks up sound waves more effectively than symmetrical panes.
Architects and builders need a framework to weigh aesthetic desires against local energy code mandates. Ultra-slim profiles look incredible but must meet strict U-factor requirements. Codes like Title 24 or Passive House standards dictate performance baselines. You must balance the visual goal of maximum glass with the technical reality of thermal compliance. Do not specify a frame profile so thin that it cannot house the required thermal strut width.
Look for specific credentials in a supplier. AAMA certifications and NFRC ratings are essential. Demand transparent testing data for air and water infiltration. Verify structural wind-load ratings for your specific geographic location. A reputable manufacturer provides comprehensive technical submittals, proving their systems meet or exceed industry standards. Review the shop drawings carefully to confirm the extrusion wall thickness matches the structural requirements.
Poor installation compromises even the best windows. Specialized flashing and panning systems are necessary for large-format aluminum windows. You must use experienced glazing contractors. They understand the expansion tolerances and sealing requirements of heavy architectural glass. Flawed installation leads to water leaks, air drafts, and voided warranties. The rough opening must be perfectly plumb, level, and square.
An aluminum glass window remains the premier choice for maximizing natural light. This holds true provided the specification includes rigorous thermal management. Prioritize fixed picture windows for pure light. Mandate double glazing and thermal breaks for energy compliance. Select high-security aluminum profiles for peace of mind. Reserve custom geometries for high-impact architectural focal points.
A: Yes. Aluminum has a much higher strength-to-weight ratio than vinyl. This allows manufacturers to create much slimmer frame profiles. A slimmer frame means less opaque material and a larger total glass surface area, which directly increases the amount of natural light entering the space.
A: They are highly efficient only if specified correctly. Because aluminum conducts heat, modern windows must include polyamide thermal breaks to stop energy transfer. Combined with Low-E double glazing and warm-edge spacers, they easily meet strict energy code compliance and help lower heating and cooling bills.
A: No, they often enhance it. The structural rigidity of aluminum prevents the frames from easily bending or warping under force. This strength allows for the integration of heavy-duty multi-point locking hardware and thick, security-grade laminated glass without causing the frame to sag.
A: Maximum sizes depend on standard manufacturing limits, local wind load engineering, and glass weight constraints. While some architectural systems can span over 10 feet in a single pane, these require specialized heavy-duty aluminum mullions and thicker glass to prevent dangerous deflection under wind pressure.
A: Condensation occurs when warm indoor air hits a cold surface. A thermally broken aluminum window uses a polyamide strut to separate the cold exterior metal from the interior metal. Along with a warm-edge spacer between the glass panes, this keeps the interior surfaces above the dew point.
A: Yes, but it requires careful planning. You must account for the structural requirements and precise opening tolerances of the existing framing. Retrofitting large aluminum systems also presents flashing and waterproofing challenges, demanding experienced installers to ensure the new custom unit is completely weather-tight.
A: Architectural aluminum windows typically last 30 to 40 years or more. Their lifespan depends heavily on the finish type. High-quality anodized finishes or marine-grade powder coatings resist UV degradation and corrosion exceptionally well, even in harsh environmental exposures, requiring very little maintenance over decades.
