Architects and builders face a constant challenge on the job site: maximizing interior daylight without compromising structural integrity, security, or the thermal envelope. Traditional framing materials like wood and vinyl require thick, bulky profiles to support the heavy weight of large glass panes. This inherently reduces the Visible Light Transmittance (VLT) area. It also introduces long-term maintenance liabilities, such as warping, rot, or thermal degradation over time.

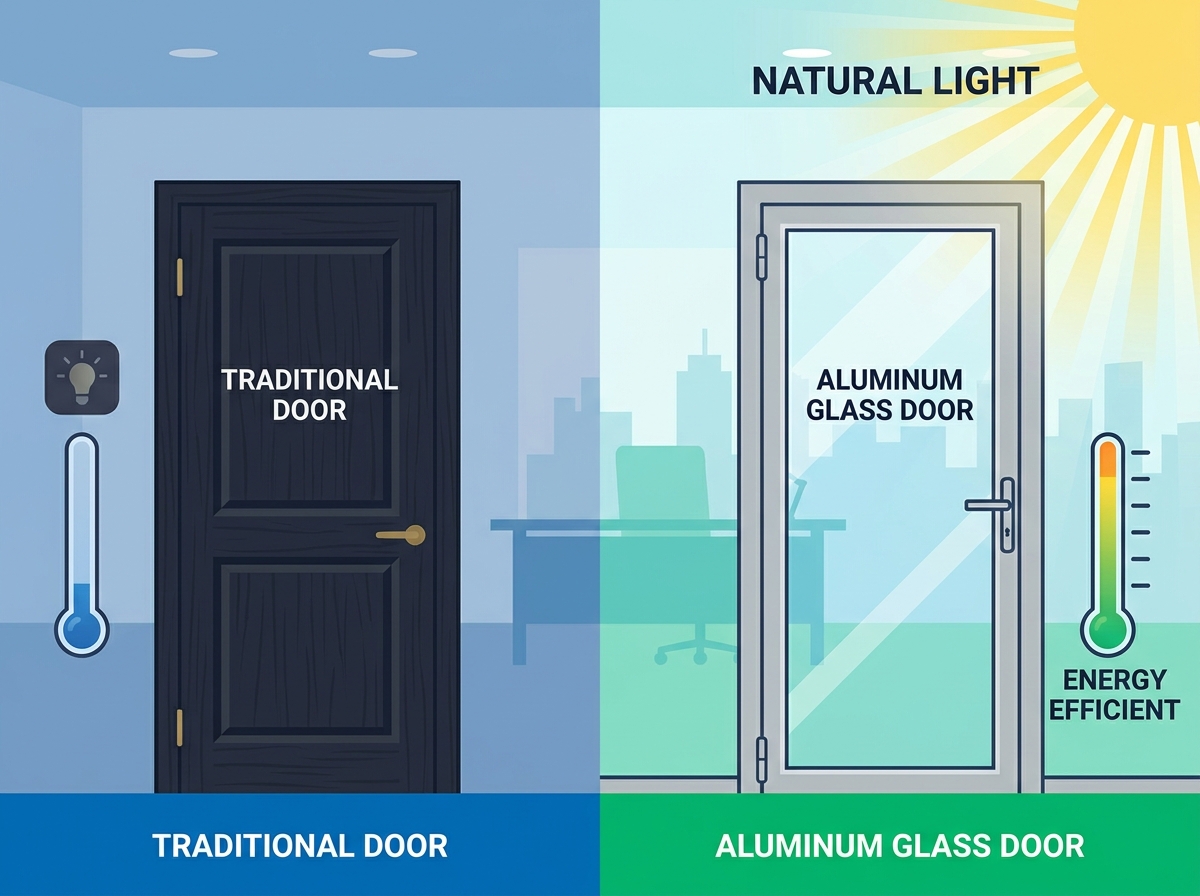

Upgrading to an aluminum door with window configuration solves the strength-to-weight ratio limitation. This material allows for expansive glass panels with minimal sightlines, flooding interiors with natural light. Buyers must carefully evaluate thermal breaks, glazing specifications, and installation requirements before procurement. Proper specification ensures the system performs optimally in specific climate zones while maintaining rigid structural tolerances.
Tensile strength dictates how much frame material you need to hold a pane of glass securely. Wood and vinyl have lower structural rigidity. Their frames must be wider and thicker to prevent the door from sagging under the weight of the glazing. Aluminum possesses a significantly higher strength-to-weight ratio. This structural advantage allows manufacturers to engineer narrower stiles and rails.
Narrower frames directly translate to a larger glazing area. When the frame takes up less physical space within the rough opening, more sunlight penetrates the interior. In architectural terms, the visible frame around the glass is known as the sightline. Slim sightlines are the primary success criteria for evaluating frame thickness in modern glass doors. A high-quality aluminum system achieves sightlines as narrow as an inch or two. This maximizes interior brightness and offers unobstructed views of the outdoors.
| Material | Tensile Strength (Yield) | Average Sightline Thickness | Max Panel Size Capability |
|---|---|---|---|
| Extruded Aluminum | ~35,000 psi | 1.5" - 2.5" | Up to 12' tall |
| Wood (Douglas Fir) | ~6,000 psi | 4.0" - 6.0" | Up to 8' tall (without mid-rails) |
| Vinyl (uPVC) | ~6,500 psi | 3.5" - 5.0" | Up to 7' tall (requires steel reinforcement) |
Modern building codes and energy standards require heavy double and triple-pane Insulated Glass Units (IGUs). These units carry massive dead loads. Standard 1/4-inch glass weighs about 3.2 pounds per square foot. A single 5-foot by 10-foot triple-pane sliding door panel easily exceeds 400 pounds. Traditional materials struggle under this load. They often require mid-rail supports or thicker vertical mullions that obstruct natural light.
Aluminum extrusions support these massive weights without sagging or bowing. The rigidity of the metal ensures the door panel remains perfectly square. This load-bearing capacity allows architects to design expansive walls of glass without compromising the structural integrity of the moving panels.
Historically, aluminum had one major vulnerability: high thermal conductivity. Metal transfers heat rapidly. Older aluminum frames felt freezing to the touch in winter and hot in summer. This often led to interior condensation and moisture damage on adjacent drywall. Modern engineering solved this through the introduction of thermal breaks.
A thermal break is a continuous barrier between the inside and outside aluminum extrusions. Manufacturers use polyamide struts to physically isolate the interior frame from the exterior frame. Polyamide is a highly durable, non-conductive composite material. It prevents heat energy from traveling through the metal. When evaluating energy efficient glass doors, you must verify the presence and thickness of this polyamide thermal break. Look for systems that meet or exceed local U-factor requirements. A U-factor of 0.30 or lower generally indicates excellent thermal resistance.
The frame is only half of the thermal equation. You must properly specify the glass itself. High-performance IGUs utilize Low-E (low-emissivity) coatings. These microscopic metallic layers reflect interior heat back into the room during winter. They also block solar heat from entering during summer. Manufacturers fill the space between the glass panes with dense inert gases, such as argon or krypton. These gases slow thermal transfer better than standard air. Warm-edge spacers sit around the perimeter of the glass to prevent condensation at the edges.
Selecting the right glass requires balancing the Solar Heat Gain Coefficient (SHGC) with Visible Light Transmittance (VLT).
Material longevity heavily influences the long-term value of any architectural component. Wood doors are highly susceptible to moisture. They absorb water, leading to swelling, rot, and eventual decay. Vinyl doors resist rot but suffer from UV degradation. They become brittle and crack after years of intense sun exposure.
Aluminum is inherently resistant to rust and does not absorb moisture. To further enhance durability, aluminum frames receive factory-applied finishes. Anodizing creates a protective oxide layer integrated into the metal. Powder coating applies a dry powder cured under heat to form a tough, resilient skin. These finishes provide exceptional protection against the elements. Aluminum excels in high-humidity areas, coastal regions, or environments with high salt exposure where other materials quickly fail.
Extreme temperature fluctuations cause building materials to expand and contract. Vinyl expands significantly under heat. This causes the door frame to warp or bind within its tracks. Wood swells in high humidity and shrinks in dry conditions. This lack of dimensional stability leads to doors that stick, fail to latch properly, or require constant seasonal adjustments.
Aluminum maintains excellent dimensional stability across extreme temperature ranges. It does not swell, warp, or twist. This structural stability ensures the door remains perfectly aligned within its frame over decades of use. Consequently, the weatherstripping maintains a tight seal against drafts. The moving hardware experiences significantly less wear and tear. Heavy-duty rollers, hinges, and multi-point locking mechanisms operate effortlessly for the lifespan of the building.
Multi-panel aluminum glass doors act as structural conduits for natural light. They seamlessly merge indoor and outdoor living spaces. Bifold doors fold away in an accordion style, opening up the entire wall to the exterior. Multi-slide systems feature large panels that glide past one another. They often stack neatly or disappear entirely into wall pockets.
These systems scale easily for wide structural openings. However, they require careful technical planning. Bottom-rolling systems place the weight of the doors on the floor track. This configuration is generally easier to install and requires less header support. Top-hung systems suspend the doors from the upper track. This provides smoother operation and allows for a flush floor threshold. Top-hung systems demand substantial structural header reinforcements. The header must carry the suspended dead load safely without deflecting more than L/720 (length divided by 720). Any deflection beyond this limit will cause the door panels to bind and fail.
For standard entryways or secondary patio access points, pivot and hinged configurations offer distinct advantages. Pivot doors rotate on a vertical axis located top and bottom, rather than relying on side hinges. This allows for massive, single-panel doors that make a dramatic architectural statement. They require less swing space than a traditional hinged door of the same width.
Hinged French doors remain a classic choice. They offer excellent weather-sealing capabilities due to their compression gaskets. When selecting between these variations, consider the operational clearances required in the room. Evaluate the expected foot traffic and the specific weather exposure of the doorway. Outswing French doors perform better in high-wind areas because wind pressure pushes the door tighter against the weatherstripping.
Premium aluminum systems require a higher upfront procurement cost compared to builder-grade vinyl or basic wood alternatives. The precision engineering, thermal break technology, and high-performance glazing contribute to this initial investment.
The break-even point becomes clear when calculating long-term returns. Energy savings from improved heating and cooling efficiency offset utility bills. The elimination of routine maintenance costs keeps ongoing expenses near zero. You do not need to repaint wood or replace warped vinyl. The extended replacement cycle of aluminum means the doors will likely outlast alternative materials by decades.
The rigidity that makes aluminum so durable also makes it unforgiving during installation. Aluminum frames do not bend, flex, or accommodate structural settling. The rough opening must be perfectly plumb, level, and square.
If installed by contractors inexperienced with architectural-grade systems, you face a high risk of operational failure. Improper shimming leads to thermal bridging, where heat bypasses the insulation. Poor sill pan flashing results in water infiltration around the perimeter. Precision installation is an absolute requirement. Installers must use laser levels and high-density shims to ensure the frame sits perfectly within the opening.
A: Modern aluminum frames utilize polyamide thermal breaks that physically separate the interior and exterior metal. This prevents heat transfer. When combined with double or triple-pane Low-E glazing and argon gas fills, they effectively trap interior heat and meet strict winter energy codes.
A: Aluminum has a superior strength-to-weight ratio, allowing frames to be significantly narrower than wood or vinyl. This reduction in sightline thickness increases the visible glass area by 15 to 20 percent, allowing substantially more natural light to enter the interior space.
A: Yes. The inherent rigidity and strength of extruded aluminum make it highly resistant to physical impact. When paired with multi-point locking systems and tempered or laminated safety glass, these doors provide exceptional security against forced entry attempts.
A: Maintenance is minimal. Clean the frames and tracks a few times a year with a mild, non-abrasive soap and water solution to remove dirt and debris. Lubricate hinges, rollers, and locking mechanisms annually with a silicone-based spray to ensure smooth operation.
A: No. Unlike wood, which swells with moisture, or vinyl, which expands under heat, aluminum possesses excellent dimensional stability. It does not absorb water and resists extreme temperature fluctuations, ensuring the door will not warp, swell, or bind in its frame.
A: Yes, retrofit installations are common. Because aluminum frames are rigid and unforgiving, you must carefully check the existing rough opening. It must be perfectly plumb, level, and square before installation to prevent operational issues or weather-sealing failures.
A: Aluminum naturally resists rust, making it excellent for coastal areas. To prevent pitting from salt spray, the frames must be treated with a marine-grade powder coating or a high-quality anodized finish. This provides a durable, protective barrier against corrosive elements.
