Specifying inadequate door framing materials often leads to hidden lifecycle penalties. Projects frequently suffer from premature warping, thermal failure, high installation labor, and relentless maintenance cycles. Architects, builders, and facility managers struggle to balance modern aesthetic demands with strict performance codes. Current designs require expansive glass and slim sightlines. Yet, these same openings must deliver robust energy efficiency, acoustic privacy, structural integrity, and long-term durability.
An objective evaluation reveals why the aluminum door frame has become the baseline standard for commercial and high-end residential applications. Modern extrusions solve historical performance gaps. We will examine structural realities, thermal advancements, acoustic performance, and overall lifecycle value to understand this shift in material preference. You need materials that perform on the job site and stand up to decades of heavy use.
Establishing baseline requirements is mandatory before selecting framing materials for exterior and high-traffic doors. Modern entry systems must survive rigorous cycle testing and resist extreme wind loads. They must also maintain strict ADA compliance for accessibility. Impact resistance remains a non-negotiable factor in hurricane-prone regions or high-security facilities. Meeting these diverse criteria requires a material capable of enduring constant physical stress without deformation.
Traditional materials often fall short under these demanding conditions. Wood offers classic aesthetics but remains highly susceptible to moisture infiltration, rot, and continuous maintenance. Steel provides immense security but introduces heavy dead loads and inevitable rust potential if the finish scratches. Vinyl works well for basic residential windows but lacks the structural rigidity needed for large doors. It often warps under thermal stress and shatters upon severe physical impact.
Acoustic and privacy standards now dictate material selection in modern construction. Sound transmission limits are key performance metrics for commercial office spaces, multi-family dwellings, and educational institutions. High Sound Transmission Class (STC) and Outdoor-Indoor Transmission Class (OITC) ratings ensure interior comfort. Achieving these ratings requires dense framing materials capable of holding heavy, specialized acoustic glazing without sagging over time.
Decision-makers must evaluate framing options across several core dimensions. Structural load capacity determines how large the glass panels can be. Weather and water resistance dictate the system's lifespan in harsh climates. Thermal dynamics impact energy code compliance and interior comfort. Acoustic attenuation ensures environmental quality, while security and aesthetic longevity protect the initial investment.
| Performance Metric | Aluminum | Wood | Steel | Vinyl |
|---|---|---|---|---|
| Structural Rigidity | High | Medium | Very High | Low |
| Moisture Resistance | Excellent | Poor | Moderate (Rust Risk) | Excellent |
| Thermal Expansion | Low | Moderate | Low | High |
| Maintenance Needs | Low | High | Medium | Low |
| Dead Load Weight | Low | Medium | High | Low |
When you evaluate these metrics on a real job site, the practical differences become obvious. A heavy steel frame requires specialized rigging and a larger crew just to set it in the rough opening. Wood frames demand immediate sealing and painting to prevent moisture absorption from ambient humidity. Vinyl frames flex too much when you try to install heavy commercial hardware. Aluminum strikes the necessary balance, offering the rigidity of steel without the punishing weight, and the weather resistance of vinyl without the structural weakness.
Aluminum possesses an exceptional strength-to-weight ratio. This inherent material property allows manufacturers to engineer lighter overall door systems without sacrificing yield strength. Lighter doors significantly reduce wear and tear on hinges, pivots, and operational hardware. This reduction in mechanical stress extends the lifespan of the entire entry system and minimizes emergency repair calls.
Supporting heavy glass door frames requires immense structural stability. Rigid aluminum extrusions prevent deflection when housing heavy double or triple-pane insulated glass units (IGUs). Large-format configurations, such as expansive sliding or folding walls, rely on this rigidity. Without it, the frame would bow under the weight of the glass, leading to operational failure and compromised weather seals.
The lightweight nature of aluminum drastically improves installation logistics. It reduces the overall building dead load, which simplifies structural engineering requirements. On-site labor, handling, and rigging efforts decrease compared to maneuvering heavy structural steel or solid timber frames. Smaller crews can often install large aluminum assemblies, accelerating project timelines and improving job site safety.
Dimensional stability guarantees long-term performance across extreme temperature fluctuations. Aluminum resists warping, swelling, and shrinking when exposed to intense sun or freezing cold. This stability ensures consistent weatherseal compression, keeping air and water out. It also provides a robust physical defense against forced entry or blunt impact, maintaining building security over decades of use.
Consider the mechanics of hanging a 400-pound glass panel. If the frame material deflects even a fraction of an inch, the door will drag on the threshold. The locking mechanisms will misalign. The weatherstripping will lose contact, creating air leaks. Aluminum extrusions are engineered with internal webbing and reinforced corners to handle these exact point loads. You can specify continuous geared hinges on an aluminum frame and know the material will hold the fasteners securely for the life of the building.

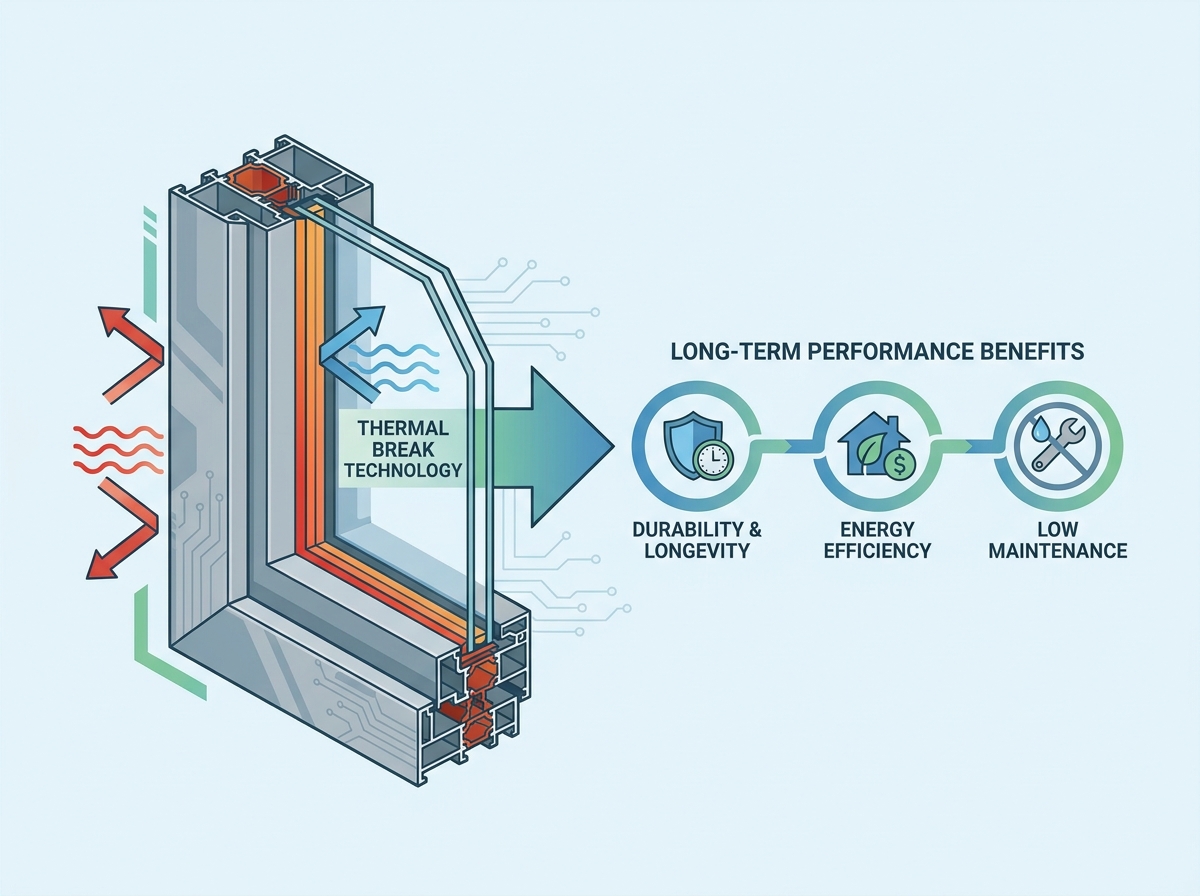

Historically, metal frames struggled with energy efficiency due to high thermal conductivity. The integration of thermal break door frames revolutionized the industry. A thermal break uses a polyamide strut or polyurethane pour-and-debridge system to physically separate the interior and exterior aluminum extrusions. This non-conductive barrier stops thermal bridging, preventing outside temperatures from transferring inside.
Thermally broken frames effectively mitigate interior condensation. When cold exterior metal meets warm, humid interior air, condensation forms rapidly. This moisture damages adjacent building materials, ruins drywall, and promotes toxic mold growth. By maintaining a warmer interior frame surface, thermal breaks eliminate this condensation risk entirely.
Specifying aluminum frames for harsh climates requires careful evaluation of energy metrics. The U-Factor measures the rate of heat transfer, while the Solar Heat Gain Coefficient (SHGC) measures solar radiation transmission. Advanced aluminum systems easily meet stringent energy codes by combining deep thermal breaks with high-performance low-E glazing. This combination ensures optimal performance for both harsh summer cooling and extreme winter heating environments.
In the field, you can physically feel the difference a thermal break makes. On a zero-degree day, the exterior face of the aluminum frame will be freezing, but the interior face remains at room temperature. This separation is achieved through precision manufacturing. The polyamide struts are mechanically crimped into the aluminum profiles, creating a composite assembly that retains the structural strength of solid metal while delivering the thermal performance of a non-conductor.
| Frame Type | Thermal Conductivity | Condensation Resistance | Typical U-Factor Range |
|---|---|---|---|
| Standard Aluminum | High | Low | 0.70 - 1.20 |
| Thermally Broken Aluminum | Low | High | 0.25 - 0.45 |
| Wood | Low | High | 0.30 - 0.50 |
Modern architectural trends heavily favor minimalist designs with maximum daylight openings. The structural rigidity of aluminum allows for ultra-narrow sightlines. Slim aluminum door profiles maximize the glass area without compromising the structural integrity of the opening. This capability makes aluminum the preferred choice for contemporary facades and expansive patio enclosures.
Noise mitigation is a primary concern in urban environments. Modern aluminum frames accommodate specialized glazing gaskets and internal dampening materials. They are engineered to hold thick, asymmetric acoustic glass units. This precise engineering achieves high Sound Transmission Class (STC) ratings, effectively blocking street noise and ensuring interior acoustic privacy.
Finishing technologies dictate the aesthetic longevity of the frame. Class I Anodized finishes penetrate the metal, offering extreme durability and resistance to scratching. AAMA 2605 Powder Coatings provide vibrant color options with exceptional UV resistance, preventing fading and chalking over time. Both options require minimal maintenance compared to painting or staining wood.
Aluminum extrusions offer unmatched manufacturing flexibility. Fabricators can easily create custom sizing and complex configurations. Integrated transoms, sidelites, and custom angles are standard industry practices. Furthermore, aluminum door systems integrate seamlessly with surrounding curtain wall or storefront systems, providing a unified architectural language across the building envelope.
When you are dealing with acoustic requirements, the frame is just as important as the glass. Sound travels through the path of least resistance. If you install STC 45 glass in a flimsy frame with poor weatherstripping, the sound will flank right around the glass. Aluminum frames allow for multi-point locking systems and dual EPDM gaskets that compress tightly, sealing off those flanking paths and delivering the acoustic performance the client expects.
Evaluating framing materials requires looking beyond the initial purchase order. While aluminum carries a higher upfront material cost than vinyl or standard wood, it generates substantial long-term savings. Facilities avoid the deferred costs of frequent painting, wood rot repairs, and premature hardware replacement. The durability of the frame ensures the door system remains operational for decades.
Labor and handling efficiencies further improve the project's financial outlook. Lightweight aluminum assemblies reduce installation time. They often eliminate the need for heavy-machinery rentals required for steel frames. Faster installation means less disruption to the job site and a quicker path to building enclosure.
Corrosion resistance is a defining characteristic of aluminum. The metal naturally forms a protective oxide layer when exposed to air. This layer prevents deep structural rusting. When treated with high-grade architectural finishes, aluminum performs exceptionally well in harsh environments, including coastal saltwater regions and heavy industrial zones.
Sustainability factors make aluminum an environmentally responsible choice. The material is 100% recyclable without any loss of its physical properties. Using recycled aluminum requires only a fraction of the energy needed to produce primary aluminum. Specifying high-recycled-content aluminum frames actively contributes to LEED certification points and green building initiatives.
On a commercial job site, time is money. The ability to tilt up a pre-glazed aluminum storefront section with a small crew saves days on the schedule. You do not have to wait for painters to finish the frames before turning the building over. You do not have to worry about the frames rusting out at the sill if the concrete holds moisture. The material simply performs, year after year, with nothing more than basic cleaning.
Dissimilar metal corrosion presents a significant risk during installation. Galvanic corrosion occurs when aluminum directly contacts carbon steel, copper, or certain chemically treated woods in the presence of moisture. Installers must specify and apply proper isolation techniques. Using bituminous coatings, dielectric separators, or non-conductive shims prevents this destructive chemical reaction.
Installation tolerances for heavy glass doors are incredibly strict. Plumb, level, and square alignments must be exact. Improper installation leads to uneven weight distribution and structural load transfer failures. This misalignment causes hinges to bind, weatherstripping to fail, and the door to drag. Precision during the rough opening preparation is mandatory.
The frame will outlast standard components. Therefore, specifying commercial-grade, heavy-duty hardware is necessary. Hinges, locks, and closers must match the multi-decade lifespan of the aluminum extrusion. Additionally, utilize easily replaceable EPDM weatherstripping. Gaskets will eventually degrade from UV exposure and friction; designing the system for easy gasket replacement ensures continuous weather protection.
I have seen countless doors fail not because of the frame, but because the installer used standard steel screws to anchor the aluminum frame into treated lumber. Within two years, galvanic corrosion eats away the aluminum around the fastener, and the door sags. You must use stainless steel fasteners or properly coated anchors. You must isolate the aluminum from the concrete sill with a proper membrane. These small field details determine whether the door lasts five years or fifty years.
A: A high-quality aluminum door frame can easily last 30 to 45 years or more. Their lifespan depends on the quality of the finish, the hardware used, and the environment. Because aluminum does not rot, warp, or structurally rust, it significantly outlasts wood and vinyl alternatives.
A: Yes, provided they are thermally broken. Modern aluminum frames use a polyamide strut to separate the interior and exterior metal. This thermal break stops cold transfer and prevents condensation, allowing them to meet strict energy codes even in freezing climates.
A: Standard aluminum frames are continuous pieces of metal that easily conduct heat and cold. Thermally broken frames feature a non-conductive barrier placed between the inner and outer aluminum profiles. This barrier drastically reduces thermal conductivity and improves overall energy efficiency.
A: Yes. Aluminum has an exceptionally high strength-to-weight ratio. Even with narrow sightlines, the rigid extrusions can support the heavy dead loads of triple-pane insulated glass units without sagging or deflecting over time.
A: Absolutely. When paired with acoustic glazing and proper internal dampening, aluminum frames achieve high STC ratings. Their structural rigidity allows them to hold thick, heavy acoustic glass tightly, preventing sound leakage and ensuring interior privacy.
