The increasing architectural demand for expansive, unobstructed views and modern sightlines has elevated the importance of material selection in commercial and high-end residential fenestration. Architects, builders, and property owners must balance the desire for narrow sightlines and heavy glazing with strict energy codes, long-term structural integrity, and lifecycle maintenance requirements. Moving beyond surface-level aesthetics requires objectively evaluating the technical specifications, operational trade-offs, and implementation realities of specifying exterior aluminum doors and frames over traditional steel, wood, or fiberglass alternatives. You need a framing system that handles massive dead loads while resisting environmental degradation. We will examine structural efficiency, thermal management, and installation precision to guide your next fenestration project, ensuring your material choices align with both structural engineering demands and architectural vision.
Establishing baseline criteria begins with environmental exposure. Coastal salinity, extreme temperature fluctuations, and specific wind load requirements dictate material performance limits. You must evaluate the site conditions before selecting a framing system. High-exposure areas demand materials capable of resisting rapid degradation. Aluminum provides a stable baseline for these challenging environments. When working on coastal properties, the salt spray can rapidly degrade standard steel frames, leading to structural failure within a few years. Aluminum naturally resists this degradation, making it the standard specification for marine environments. You also need to consider the daily temperature swings. Materials that expand and contract significantly will eventually break the weather seals, leading to water infiltration. Aluminum maintains excellent dimensional stability across a wide temperature range.
Project requirements also extend to the operational frequency of the doors. High-traffic commercial entrances require framing that can withstand thousands of cycles per month without sagging or hardware failure. The structural rigidity of the frame directly impacts the lifespan of the hinges, pivots, and closers. If the frame flexes under load, the hardware binds, leading to premature failure. Specifying the correct wall thickness for the aluminum extrusions ensures the frame remains rigid under continuous use.
Severe atmospheric conditions test the limits of any fenestration system. Heavy rain, high-velocity winds, and significant pressure differentials require robust framing. You need systems tested against stringent water penetration and structural deflection standards. Aluminum extrusions maintain their structural geometry under high wind loads. They prevent the bowing and flexing that often compromise weather seals in lesser materials. During hurricane-force winds, the framing must hold the impact-rated glazing securely in place. The bite of the frame—the depth to which the glass is captured—must be sufficient to prevent the glass from blowing out under negative pressure.
Water management is another critical aspect of weather resilience. Extruded aluminum frames can be engineered with complex internal drainage weeping systems. These internal channels capture water that bypasses the primary exterior seals and direct it back to the exterior before it can penetrate the building envelope. Wood and steel frames lack this internal drainage capability, relying entirely on surface sealants. When those sealants fail, water enters the wall cavity. Aluminum systems provide a secondary line of defense against water intrusion.
Modern designs often incorporate heavy, multi-pane glass door frames. Supporting these massive glazing units while maintaining operational fluidity over decades is a significant engineering challenge. The framing material must carry the dead load without transferring stress to the hinges or track systems. Aluminum provides the necessary rigidity to support triple-glazed or impact-rated units seamlessly. A standard insulated glass unit can weigh upwards of eight pounds per square foot. When you design a ten-foot-tall sliding door panel, the dead load becomes immense.
The aluminum extrusions must be engineered with internal reinforcing webs to handle these loads. The bottom rail of a sliding door, for example, must resist the downward force of the glass while transferring that load to the roller assemblies. If the bottom rail deflects, the rollers will bind on the track. Aluminum allows manufacturers to design specific profiles with thickened walls in high-stress areas, optimizing the strength-to-weight ratio. This engineering precision ensures that even the heaviest doors operate smoothly with minimal effort.
Material capabilities must align with local building codes and energy efficiency mandates. You must verify U-factor and Solar Heat Gain Coefficient (SHGC) requirements for your specific climate zone. Sustainability certifications, such as LEED, also influence material selection. Aluminum systems, when properly engineered, meet these strict regulatory demands while offering high recyclability. Building codes dictate not only energy performance but also structural requirements, such as design pressures for wind loads.
Navigating these codes requires a thorough understanding of fenestration testing standards. Products must be tested to AAMA/WDMA/CSA 101/I.S.2/A440 standards to verify their performance grades. Aluminum frames consistently achieve high performance grades due to their structural integrity. Furthermore, the recyclability of aluminum contributes significantly to green building initiatives. At the end of its lifecycle, aluminum can be recycled repeatedly without losing its structural properties, reducing the environmental impact of the building.
Analyzing the specific gravity of aluminum versus steel demonstrates a clear advantage. Lighter frames significantly reduce the dead load on building structures. This reduced weight directly impacts operational hardware longevity. Hinges, pivots, and track systems experience less daily wear and tear. Furthermore, the lightweight nature of aluminum reduces on-site labor requirements. Rigging needs and overall assembly times drop considerably compared to heavy steel installations. When a framing crew is installing a massive multi-panel sliding system, the weight of the individual components dictates the required equipment. Aluminum frames can often be maneuvered by hand, whereas steel frames require cranes or heavy lifting equipment.
The strength-to-weight ratio also allows for larger continuous spans without intermediate vertical mullions. Architects push for maximum glass area and minimal framing. Aluminum extrusions can be engineered with deep profiles that provide high moments of inertia, resisting wind loads over long spans while maintaining a narrow face width. This structural efficiency is unique to aluminum. Steel can achieve narrow sightlines but at a massive weight penalty. Wood requires bulky profiles to achieve the same structural spans.
Aluminum oxidation differs fundamentally from steel rust. Aluminum naturally forms a protective oxide layer that prevents deep structural degradation. This inherent characteristic makes it ideal for harsh environments. Advanced coating options further enhance this durability. Class I and Class II anodized finishes integrate directly with the metal surface. High-performance PVDF powder coatings offer exceptional UV resistance and color retention. These finishes eliminate the scraping, painting, and rust-mitigation cycles required by wood and steel.
The anodizing process is particularly beneficial for commercial applications. It is an electrochemical process that thickens the natural oxide layer, creating a surface that is extremely hard and resistant to abrasion. Unlike paint, an anodized finish cannot peel or flake off because it is part of the metal itself. For projects requiring specific color matching, PVDF coatings (often referred to by the trade name Kynar) provide a durable alternative. These resin-based coatings resist chalking and fading even under intense UV exposure, ensuring the building facade maintains its original appearance for decades.
The extrusion process allows manufacturers to engineer custom aluminum door profiles. These profiles achieve ultra-narrow sightlines without compromising structural rigidity. Expansive glass units bridge the gap between interior spaces and exterior views. This fosters a cohesive architectural flow. Modularity allows you to seamlessly combine entry doors, sidelights, and transoms into continuous, striking facades. The extrusion die can be cut to virtually any shape, allowing for intricate interlocking designs that improve weather sealing and structural connections.
This flexibility extends to the integration of hardware. Aluminum profiles can be extruded with internal channels designed specifically to accept multi-point locking mechanisms, concealed hinges, and integrated closer bodies. This internal routing keeps the hardware hidden from view, maintaining the clean, modern aesthetic demanded by contemporary architecture. Wood frames require extensive routing and mortising to achieve similar hardware integration, which weakens the frame. Aluminum profiles are designed from the ground up to accommodate these components without sacrificing strength.

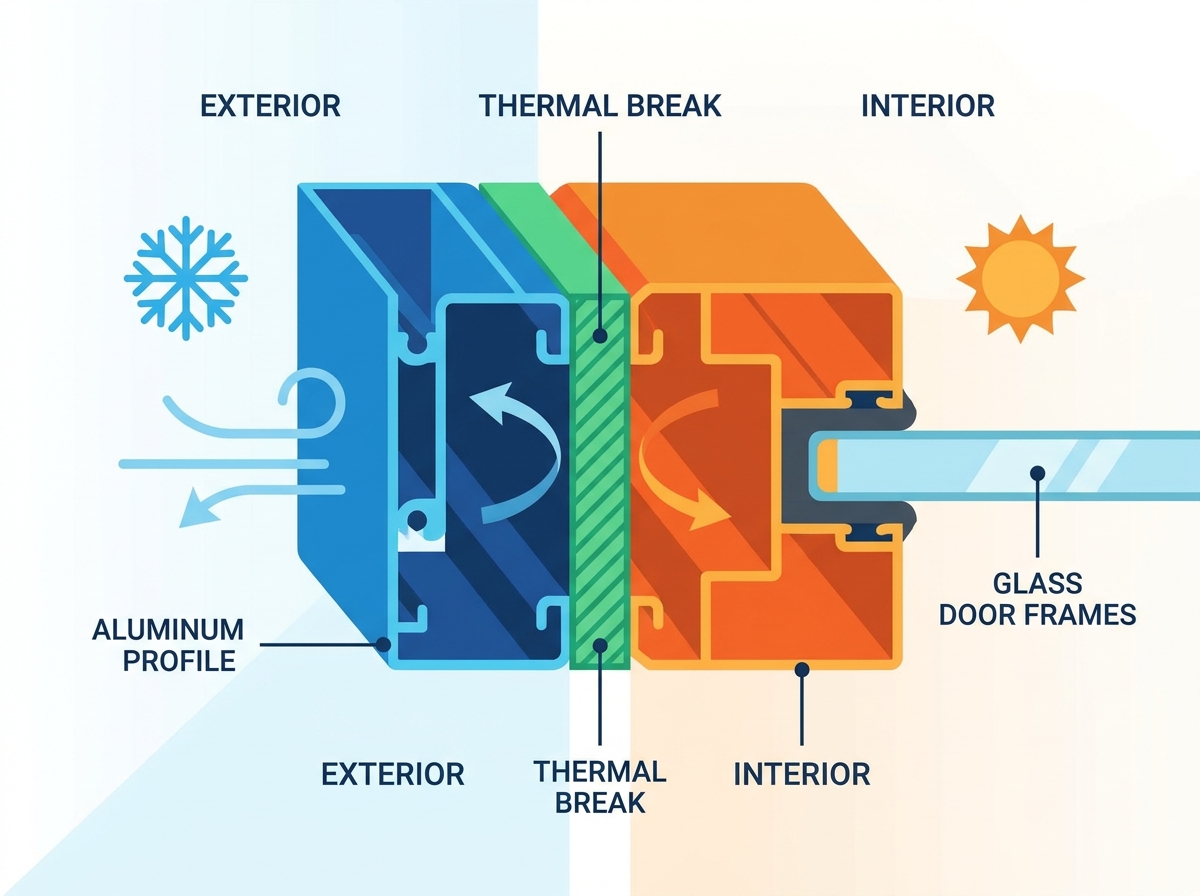

High thermal conductivity is the primary vulnerability of standard aluminum. Modern engineering solves this through mechanical separation. Polyamide or polyurethane thermal struts lock directly into the extrusion. This creates a physical barrier between the interior and exterior metal profiles. This separation prevents thermal bridging, condensation, and frost buildup in extreme climates. Thermal break door frames are essential for any conditioned space. Without this break, the aluminum frame acts as a highly efficient conduit, transferring heat out of the building in winter and into the building in summer.
The manufacturing process for these thermal breaks requires extreme precision. The interior and exterior aluminum profiles are extruded separately. A knurling machine then creates teeth in the pockets where the strut will sit. The polyamide strut is inserted, and a rolling machine crimps the aluminum tightly around the strut, creating a composite profile. This mechanical lock must be strong enough to transfer structural loads between the interior and exterior halves of the frame. Polyamide 6.6, reinforced with glass fibers, is the industry standard for these struts because its coefficient of thermal expansion closely matches that of aluminum, preventing the frame from warping during temperature changes.
Thermally broken frames pair directly with low-E insulated glass units (IGUs). Together, they achieve highly competitive U-factors required by modern energy codes. This combination is crucial for meeting passive house standards. Commercial energy compliance relies heavily on these engineered thermal barriers. They ensure the building envelope remains highly efficient without sacrificing the desired aesthetic. The U-factor measures the rate of heat transfer through the entire window or door assembly, including the frame and the glass.
To achieve the lowest possible U-factors, manufacturers often utilize wider thermal struts, increasing the physical distance between the interior and exterior metal. They may also insert foam insulation into the hollow cavities of the aluminum extrusion to further reduce convective heat transfer within the frame. When combined with triple-pane glazing and argon gas fills, these advanced aluminum systems can meet the most stringent energy codes in North America, proving that you do not have to compromise on sightlines to achieve exceptional thermal performance.
| Material Characteristic | Thermally Broken Aluminum | Custom Architectural Steel | Solid Wood | Pultruded Fiberglass |
|---|---|---|---|---|
| Structural Rigidity | High (Excellent strength-to-weight) | Very High (Heavy dead load) | Moderate (Requires bulky profiles) | Moderate (Can flex under high wind) |
| Corrosion Resistance | Excellent (Natural oxide layer) | Poor (Requires constant coating maintenance) | Poor (Susceptible to rot and moisture) | Excellent (Impervious to moisture) |
| Dimensional Stability | Excellent (Unaffected by humidity) | Excellent (Unaffected by humidity) | Poor (Swells and shrinks with moisture) | Good (Low thermal expansion) |
| Sightline Capabilities | Ultra-Narrow | Ultra-Narrow | Wide | Moderate |
| Customization | Very High (Custom extrusion dies) | High (Welded assemblies) | High (Milled profiles) | Low (Limited by pultrusion molds) |
Aluminum generally offers lower upfront costs and faster fabrication times than custom architectural steel. Steel requires rigorous maintenance to prevent rust, especially in coastal environments. Aluminum remains inherently corrosion-resistant. Advanced aluminum profiles closely mimic the narrow sightlines of steel at a fraction of the weight. The weight difference is a critical factor during installation. Steel doors often require specialized structural headers to support their immense weight, adding complexity to the framing stage. Aluminum systems integrate more easily into standard wood or light-gauge steel framing.
Furthermore, the thermal performance of steel is notoriously difficult to manage. While thermally broken steel systems exist, they are exceptionally expensive and complex to manufacture. Aluminum thermal break technology is mature, widely available, and highly effective. For projects demanding the industrial aesthetic of steel, manufacturers offer aluminum profiles with simulated putty glazes and applied muntins that replicate the look of historic steel windows without the associated thermal and maintenance drawbacks.
Wood is highly susceptible to warping, swelling, and rotting. Moisture and temperature changes constantly threaten its dimensional stability. Aluminum remains perfectly dimensionally stable regardless of humidity. Wood requires continuous lifecycle maintenance, including staining and sealing, to maintain weatherproofing. Aluminum requires only basic cleaning. When a wood door swells during a humid summer, it binds in the frame, requiring planing and adjustment. Aluminum doors operate consistently year-round.
Wood also struggles to support the weight of modern triple-pane glazing without utilizing excessively wide stiles and rails. This reduces the visible glass area and blocks the view. Aluminum's superior strength allows for narrow stiles even when supporting heavy glass. While wood offers excellent natural thermal insulation, the maintenance burden and dimensional instability make it a poor choice for large exterior openings exposed to the elements.
Fiberglass relies on pultrusion molds, which limits custom architectural shapes and sizes. The aluminum extrusion process is highly customizable. Aluminum provides superior rigidity for oversized, heavy glass units. Fiberglass may flex or bow under high wind loads when supporting massive panes. The pultrusion process pulls fiberglass rovings through a resin bath and a heated die. This process is efficient for high-volume, standard-size windows but lacks the flexibility required for custom architectural doors.
Fiberglass frames also present challenges with hardware integration. The material does not hold screws as securely as aluminum, often requiring specialized inserts or backing plates to mount heavy hinges and closers. Aluminum extrusions can be designed with thickened screw bosses that provide exceptional pull-out strength for hardware fasteners. For high-end residential and commercial projects requiring bespoke sizes and configurations, aluminum remains the superior choice.
Accelerated corrosion occurs when aluminum contacts dissimilar metals in the presence of moisture. Carbon steel fasteners or copper flashing act as catalysts for this reaction. You must implement strict mitigation tactics during installation. Specify stainless steel fasteners for all connections. Use dielectric separators and protective bituminous coatings to isolate the aluminum frame from surrounding reactive materials. Galvanic corrosion is a common failure point in poorly executed installations. When aluminum is placed directly against pressure-treated lumber, the copper-based preservatives in the wood will rapidly corrode the aluminum.
To prevent this, installers must apply a barrier membrane, such as a self-adhering flashing tape, between the aluminum frame and the rough opening. Additionally, any shims used to plumb and level the frame should be made of high-density plastic rather than wood. When attaching the frame to structural steel, neoprene isolation pads must be used to break the electrical connection between the two metals. Attention to these details during the installation phase ensures the long-term durability of the framing system.
Rigid aluminum frames require perfectly plumb, level, and square rough openings. There is little room for error during framing. You must manage structural deflection carefully. Ensure the building header does not transfer dead loads directly onto the door frame. Load transfer will bind the operational hardware and impede door function. A standard aluminum sliding door system requires the sill to be perfectly level across its entire span. A deviation of even an eighth of an inch can cause the heavy panels to roll unevenly or fail to latch properly.
Installers must use laser levels and high-quality shims to establish a perfect base before setting the frame. Furthermore, the structural header above the door must be engineered to deflect no more than L/360 or a maximum of 1/4 inch under full live and dead loads. If the header sags and rests on the aluminum frame, it will crush the thermal struts and lock the door panels in place. A deflection channel or slip joint must be incorporated at the head of the frame to accommodate any movement in the building structure without transferring stress to the fenestration.
Custom extrusions and specialized anodized finishes require careful procurement planning. You must navigate longer lead times for highly customized profiles. Factor thermal strut integration and custom color matching into your project timelines early. Proactive scheduling prevents costly delays during the dry-in phase of construction. Standard aluminum profiles in stock colors can often be procured quickly, but architectural projects rarely rely on standard configurations.
When specifying custom extrusion dies, you must account for the time required to cut the die, run initial samples, and approve the profile before full production begins. Custom PVDF color matching also adds weeks to the schedule. The general contractor must release the fenestration order months before the rough openings are framed. Coordinating the delivery of the frames with the installation of the weather barrier is critical to maintaining the construction schedule and ensuring the building is dried in efficiently.
Exterior aluminum systems represent a highly balanced investment for demanding architectural projects. They deliver modern aesthetics, high structural integrity, and minimal lifecycle maintenance. Aluminum serves as the optimal specification for oversized openings, coastal environments, and commercial applications where steel is cost-prohibitive and wood is functionally inadequate. To move forward effectively, take the following actions:
A: Yes, provided they utilize thermal breaks. These engineered barriers prevent heat transfer, allowing aluminum systems to meet strict modern energy codes when paired with high-performance glazing.
A: With proper installation and high-quality anodized or powder-coated finishes, exterior aluminum doors can easily last 30 to 40 years with minimal structural degradation.
A: A thermal break is a non-conductive material, typically a polyamide strut, placed between the interior and exterior halves of an aluminum frame to stop thermal bridging and prevent condensation.
A: No. Unlike steel, aluminum does not contain iron and cannot rust. It naturally forms a protective oxide layer, making it highly resistant to corrosion, even in damp or coastal environments.
A: The most common architectural finishes are Class I and Class II Clear, Bronze, and Black anodized. These electrochemical processes integrate the finish with the metal itself for superior durability.
A: Absolutely. Aluminum’s structural rigidity makes it the ideal framing material for heavy, multi-pane, or impact-rated glass, supporting expansive architectural designs without warping.
