The architectural demand for expansive, uninterrupted glazing creates significant structural and thermal challenges for building envelopes. Standard framing materials like vinyl and wood lack the tensile strength to support heavy, large-format glass without resorting to thick, sightline-obstructing profiles. Attempting to use weaker materials for massive glass installations risks long-term structural deflection, air infiltration, and eventual seal failure.
Modern aluminum window frames engineered with thermal breaks for heavy commercial and high-end residential applications solve this load-bearing dilemma. They provide the necessary rigidity to handle extreme weight while maintaining slim profiles. This guide evaluates the structural, thermal, and practical viability of specifying aluminum frame windows for oversized glazing projects.
Large-format glazing introduces immense dead loads from the weight of the glass itself, alongside dynamic wind loads that push and pull against the building envelope. Standard materials bow or twist under these forces. The inherent rigidity of aluminum window frames prevents this deflection. Keeping the frame perfectly straight is critical to preventing stress fractures in the glass and protecting the seals of insulating glass units (IGUs).
Frame stiffness directly impacts structural seal integrity over time. When a frame resists bending under high wind loads, it ensures uniform compression of gaskets. This continuous, even pressure prevents drafts and water ingress, maintaining a weather-tight barrier even during severe storms. We often see structural failures in the field when contractors attempt to push vinyl beyond its structural limits. Aluminum alloys, specifically 6063-T5 or 6061-T6, offer the yield strength required to keep massive glass lites stationary.
| Material | Tensile Strength (Approx.) | Deflection Risk (Large Glass) | Profile Thickness Required |
|---|---|---|---|
| Aluminum (6063-T5) | 27,000 psi | Low | Minimal (Slim) |
| Vinyl (PVC) | 6,500 psi | High | Thick / Bulky |
| Wood (Pine/Fir) | 8,000 psi | Medium | Thick |
Aluminum is a low-density, high-strength metal. This unique combination allows manufacturers to engineer profiles that are exceptionally thin yet capable of holding heavy, multi-pane glass. Compared to wood or vinyl, which require bulky frames to achieve similar strength, aluminum maximizes the glass area.
These ultra-slim custom window profiles deliver significant daylighting benefits. By increasing the frame-to-glass ratio, aluminum systems allow deeper natural light penetration into interior spaces. This reduces the reliance on artificial lighting and creates a seamless visual connection to the outdoors. When installing these systems, field crews follow specific protocols to ensure the slim frames are anchored correctly:

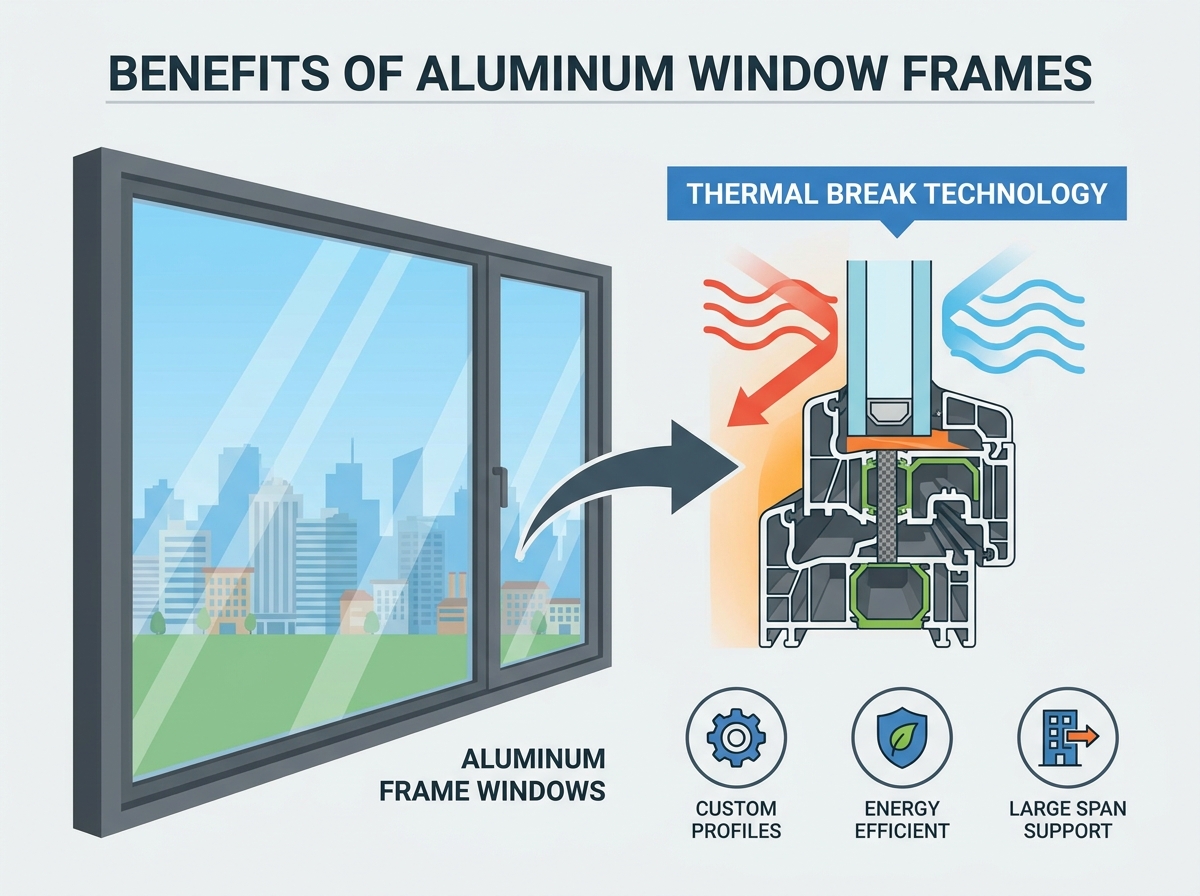

Raw aluminum is highly conductive, meaning it easily transfers heat and cold. Modern systems overcome this through thermal break frames. A thermal break is a continuous barrier, typically made from reinforced polyamide struts or polyurethane pours, placed between the interior and exterior metal extrusions.
These structural insulators sever the conductive pathway. By physically separating the outside metal from the inside metal, thermal breaks effectively prevent interior condensation and drastically mitigate heat loss during winter and heat gain during summer. The polyamide struts are mechanically crimped into the aluminum extrusions, creating a composite profile that retains the structural strength of the metal while offering the insulation properties of the polymer.
Materials expand and contract at different rates when exposed to temperature shifts. Aluminum has a much lower coefficient of thermal expansion than vinyl. Importantly, aluminum expands and contracts at a rate very similar to glass.
Because aluminum frame windows and the glass they hold move together under extreme temperature shifts, there is significantly less shear stress placed on perimeter sealants and IGUs. This cohesive movement prevents premature seal failure and extends the lifespan of the entire window unit. In climates with massive temperature swings between day and night, this dimensional stability is what keeps the building envelope sealed.
To meet stringent modern energy codes, thermally broken aluminum frames must be paired with high-performance glazing. This typically involves low-E coatings, argon or krypton gas fills, and double or triple-pane configurations.
When properly specified, these systems achieve excellent U-factors and Solar Heat Gain Coefficients (SHGC). The combination of thermal breaks and advanced glass significantly reduces HVAC loads. Building inspectors look for NFRC labels on these units to verify compliance with local energy codes.
| Frame Type | Glass Configuration | Estimated U-Factor | Condensation Resistance |
|---|---|---|---|
| Standard Aluminum | Clear Double Pane | 0.60 - 0.70 | Poor |
| Thermally Broken Aluminum | Low-E Double Pane, Argon | 0.30 - 0.35 | Good |
| Thermally Broken Aluminum | Low-E Triple Pane, Argon | 0.20 - 0.25 | Excellent |
Aluminum performs exceptionally well in high wind load zones. Its rigidity makes it the preferred choice for hurricane-rated impact windows and tall building applications where wind pressures are severe. Furthermore, aluminum maintains its dimensional stability across extreme temperature gradients. It will not warp, expand, or contract like PVC, ensuring smooth operation and tight seals year-round. Coastal installations rely heavily on aluminum's ability to withstand driving rain and high-velocity winds without compromising the structural opening.
Aluminum possesses natural moisture resistance and is immune to rust, rot, and pest degradation. For architectural applications, finishes enhance this durability. Class I Anodized finishes provide a hardened, wear-resistant surface, while high-performance PVDF (Kynar) powder coatings offer exceptional color retention and resistance to UV degradation and chemical exposure. Meeting AAMA 2605 standards ensures the finish will resist chalking and fading for decades, even in harsh sun exposure.
Aluminum is highly sustainable due to its infinite recyclability. It can be melted down and repurposed repeatedly without any loss of its mechanical properties. Specifying recycled-content aluminum profiles contributes to LEED credits and significantly reduces the overall embodied carbon of the building envelope. The scrap generated during the extrusion and fabrication process is immediately fed back into the supply chain.
The extrusion process allows aluminum to be formed into complex geometries. This capability is essential for engineering custom window profiles that integrate seamlessly with curtain walls and meet highly specific architectural demands. Aesthetic flexibility is also a major advantage. Manufacturers offer precise color matching, dual-finish options allowing different colors on the interior and exterior, and seamless integration of heavy-duty hardware.
Architects frequently specify custom dies to create unique mullion shapes or integrated sunshades. The tooling cost for a custom aluminum extrusion is relatively low compared to other manufacturing processes, making bespoke designs accessible for mid-to-large scale projects.
While vinyl may have a lower initial material cost, it degrades, warps, and loses structural integrity under heavy glass loads and extreme heat. Wood offers excellent insulation but requires high lifecycle maintenance to prevent rot and weathering. Aluminum offers a durable, set-and-forget solution. Its exceptional longevity and minimal maintenance requirements make it the standard for commercial and high-end residential builds.
Steel offers massive strength and a distinct industrial aesthetic but comes with significant weight penalties and the constant risk of rust. Aluminum serves as a highly effective, much lighter alternative. It achieves similar narrow sightlines and industrial looks without the heavy weight or corrosion concerns associated with steel framing. Installers prefer aluminum because it is easier to handle on-site and does not require field welding or complex rust-prevention treatments during installation.
Oversized structural openings demand precise installation. Improper flashing, weeping, and water management lead to severe leaks. Installers must adhere to strict tolerances. It is critical to isolate aluminum from dissimilar metals and masonry using bituminous coatings or dielectric separators to prevent galvanic corrosion. If raw aluminum touches carbon steel or wet concrete, the resulting chemical reaction will rapidly degrade the frame.
Procuring large, specialized window systems requires careful planning. Custom extrusions, specialized architectural finishes, and oversized glass units cannot be sourced overnight. Project managers must account for extended lead times and align procurement schedules early to avoid costly construction delays. Coordinating the delivery of massive glass lites with the completion of the aluminum frames requires tight logistical control.
Aluminum window frames provide the structural integrity required for oversized glazing while maintaining the narrow sightlines demanded by modern architecture. Their ability to handle massive wind and dead loads without deflecting ensures the long-term performance of the building envelope.
A: When properly specified and installed, aluminum window systems typically deliver a service life of 20 to 25 years or more. Longevity depends heavily on the quality of the factory finish, proper installation, and the maintenance of the thermal break frames.
A: While raw aluminum is highly conductive, modern systems are very efficient. By utilizing polyamide thermal break frames and high-performance low-E glass, these windows easily meet stringent modern energy codes and reduce HVAC loads.
A: Yes. Aluminum’s high tensile strength makes it one of the few framing materials capable of supporting the extreme weight of large triple-pane insulating glass units without sagging or deflecting over time.
A: A thermal break is a continuous insulating barrier, typically made of reinforced polyamide, placed between the inner and outer aluminum profiles. It stops thermal bridging, preventing heat transfer and interior condensation.
A: Custom extrusions require specific tooling, engineering approvals, and specialized manufacturing runs. This process can add several weeks to procurement schedules compared to ordering standard, off-the-shelf window systems.
A: Older, non-thermally broken aluminum windows often caused condensation. However, modern systems with integrated thermal breaks keep the interior frame temperature above the dew point, effectively eliminating condensation issues.
A: Aluminum has a much lower coefficient of thermal expansion than vinyl. It expands and contracts at a rate very similar to glass, which keeps perimeter seals tight and minimizes stress on the building envelope during temperature shifts.
