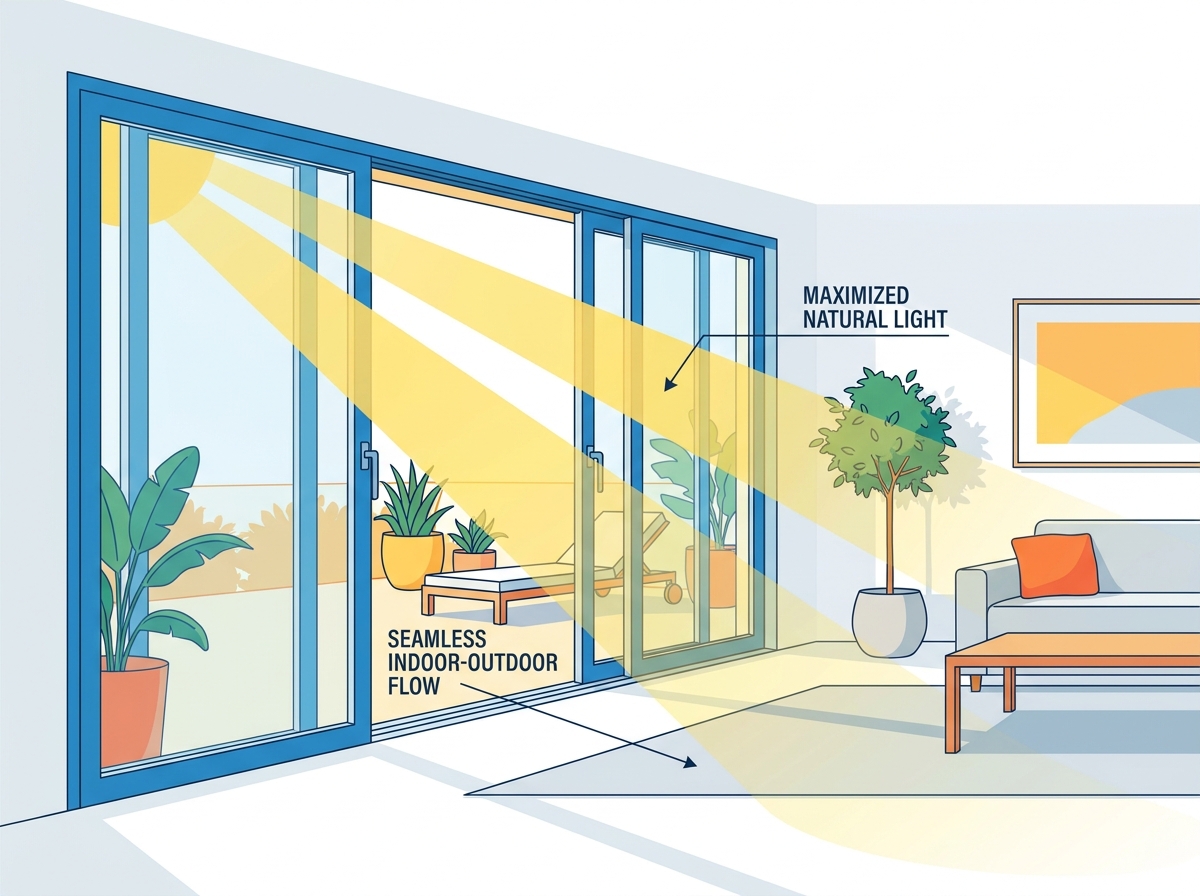

The architectural demand for seamless indoor-outdoor living makes expansive glazing a primary objective in modern residential and commercial design. Connecting key living zones directly to gardens, patios, or terraces improves spatial flow, perceived square footage, and occupant comfort. Maximizing natural light requires larger glass panels. This introduces significant weight, structural deflection risks, and potential energy efficiency liabilities if you specify the wrong framing material. Framing choices dictate the maximum allowable glass area. This guide examines why aluminum patio doors serve as the structural standard for maximizing daylight. We will look at how to evaluate system performance and the realities of specifying these units for high-end builds. You need to understand the engineering behind these systems to avoid costly site failures and ensure long-term operability.
To maximize natural light, a door system must support the heaviest possible glass with the thinnest possible frame. Modern energy codes often require double or triple-paned insulated glass units (IGUs). These heavy panels demand a frame that will not buckle under pressure. Aluminum provides the necessary tensile strength to handle this load while maintaining a minimalist profile. Compared to uPVC and timber, aluminum allows extrusions to be remarkably thin. Some minimalist systems feature sightlines under one inch. This structural capability yields up to 20% more visible glass area than standard materials, directly increasing the amount of daylight entering the interior space.
Insulated glass units at scale carry immense weight. Panels exceeding 60 square feet put extraordinary stress on the surrounding frame and rolling hardware. A standard 6x10 foot double-glazed panel can easily weigh over 400 pounds. Aluminum prevents frame sagging, warping, or operational failure under extreme weight. The rigidity of the metal ensures that the tracks remain perfectly aligned. This allows massive panels to glide smoothly on their stainless steel rollers. Wood frames warp under heavy loads. Vinyl lacks the sheer strength to hold oversized glass without thick, bulky steel reinforcements that block natural light.
Thermal stress tests the dimensional stability of any building material. Aluminum exhibits a very low thermal expansion coefficient compared to vinyl and wood. It resists rotting, warping, swelling, and shrinking when exposed to intense sunlight or freezing temperatures. This stability ensures long-term operational performance. It preserves the structural seals holding massive glass sheets. When frames expand and contract excessively, the structural silicone and EPDM gaskets fail. This leads to air leaks and moisture intrusion that plague lesser materials over time.
We see the difference clearly on the job site. When you frame a rough opening for a massive multi-panel system, the tolerances are incredibly tight. You might have a quarter-inch of shim space across a 20-foot span. If the door frame material moves with temperature changes, the panels will bind. Aluminum stays put. Once you set it plumb, level, and square, it holds that position.
| Material | Tensile Strength | Sightline Potential | Thermal Expansion | Max Panel Size Support |
|---|---|---|---|---|
| Aluminum | High (approx. 45,000 psi) | Ultra-Narrow (< 1 inch) | Low | Excellent (100+ sq ft) |
| Wood | Moderate | Wide (3-5 inches) | Moderate (Moisture dependent) | Good (Requires thick stiles) |
| Vinyl (uPVC) | Low | Very Wide (Requires steel core) | High | Poor (Prone to sagging) |
A common historical objection to aluminum is its thermal conductivity. Metal transfers heat and cold easily. Modern engineering solves this through thermal strut technology. Polyamide breaks separate the interior and exterior extrusions of the frame. This creates a thermal barrier that stops energy transfer. When evaluating aluminum glass patio doors, specifiers must review U-factors and Solar Heat Gain Coefficients (SHGC). Highly glazed elevations require systems that keep interiors comfortable without overworking HVAC systems. You want a U-factor of 0.30 or lower for most northern climates.
Expansive glass walls face significant environmental stress. This is especially true in coastal or high-exposure environments. Structural deflection limits under high wind loads are critical safety metrics. Design Pressure (DP) ratings and Performance Grades (PG) indicate a system's ability to withstand wind and rain. High-performance aluminum frames maintain their structural integrity during severe weather. They ensure the large glass panels do not flex dangerously or blow out. A DP50 rating means the door can withstand wind speeds of roughly 137 mph without structural failure or water penetration.
Exterior noise ruins the tranquility of a well-lit space. Acoustic control relies heavily on glass specifications. Laminated glass or acoustic PVB interlayers dampen sound transmission. When combined with rigid aluminum frames and high-quality weatherstripping, these thick glass units effectively mitigate exterior noise. The result is an interior environment that benefits from massive amounts of natural light without suffering from street noise or environmental disturbances. We often specify dissimilar glass thicknesses in the IGU (like a 1/4-inch pane paired with a 3/16-inch pane) to break up different sound wave frequencies.
Water management is another critical performance metric. Flush sills look great, but they require serious drainage engineering. The track must incorporate weep holes and a sloped sub-sill pan. If you have a driving rain hitting 200 square feet of glass, that water sheets down rapidly. The sill must capture and divert that volume before it breaches the interior finish floor. We always install a custom-fabricated stainless steel or heavy-duty PVC sill pan under the aluminum track.
| Glass Type | Primary Benefit | Light Transmittance | Acoustic Control (STC) |
|---|---|---|---|
| Standard Dual Pane (Clear) | Baseline insulation | High (approx. 80%) | Standard (28-32) |
| Dual Pane with Low-E & Argon | Thermal efficiency | Moderate-High (70%) | Standard (28-32) |
| Laminated Acoustic Glass | Noise reduction & Security | Moderate (65-70%) | High (35-40+) |
| Triple Pane Low-E | Extreme cold climates | Moderate (60-65%) | High (33-38) |
Moving heavy, large-format glass requires specialized hardware. Lift-and-slide mechanisms physically lift the door panel off the weatherstripping when you turn the handle. This creates frictionless movement. It allows for massive individual panel sizes, which maximizes unbroken natural light. You can move a 600-pound panel with one hand. When you lock it, the panel drops back down, compressing the gaskets for an airtight seal. This is the gold standard for oversized units.
Multi-slide configurations operate differently. They feature panels that stack neatly against one another or disappear entirely into a wall pocket. This creates a completely unobstructed opening, merging indoor and outdoor spaces seamlessly. However, standard multi-slides drag across the weatherstripping. This limits the maximum practical weight and size of the panels compared to lift-and-slide systems. If you want a 20-foot opening to vanish into the wall, pocketing multi-slides are the way to go.
Choosing between sliding patio door systems and bi-folding options involves light-yield trade-offs. Bi-folds offer 100% opening capacity by folding away completely. However, they introduce more vertical frame stiles when closed. Every hinge point is a vertical line that interrupts the view and blocks some light. Sliding systems offer fewer vertical interruptions. They utilize wider individual panels, optimizing light transmission when the doors remain shut during inclement weather or extreme heat.
Frameless sliding systems represent the pinnacle of minimalist design. The outer frame is fully recessed into the building's floor, walls, and ceiling. Only the vertical meeting stiles remain visible. These structurally glazed systems require meticulous engineering. The surrounding structure must carry the load perfectly, as the door frame itself is hidden. This configuration delivers the absolute maximum amount of daylight possible. You are essentially looking at a moving wall of glass.
Finish options determine the long-term durability and aesthetic appeal of large door systems. Architectural-grade powder coating (AAMA 2604 or 2605) provides exceptional resistance to UV degradation, chalking, and salt spray. Anodized finishes offer a metallic look that penetrates the aluminum surface. This makes it highly resistant to scratches and corrosion. Maintaining the aesthetic integrity of the frame is crucial when it surrounds a massive light source that naturally draws the eye.
Frame color significantly impacts how light interacts with the interior space. Classic white frames bounce light inward, creating a brighter, more welcoming atmosphere. Dark charcoal or anodized black finishes create dramatic, high-contrast frames that act like a picture frame for the outdoor view. Gloss levels also matter. Matte finishes diffuse light and reduce interior glare. High-gloss finishes can create distracting reflections on bright days.
Specifying custom patio doors requires balancing aesthetic desires with structural realities. You must consider the hardware finishes as well. Stainless steel multipoint locking hardware resists corrosion and provides the necessary security for large ground-floor openings. The lack of maintenance—no painting or sealing required—makes aluminum a highly practical choice for long-term architectural success.
We also look at the glazing bead profiles. Square, flat glazing beads offer a contemporary, clean look that maximizes the visible glass area. Beveled or ornate beads mimic traditional wood doors but can slightly reduce the light opening. For modern builds focused on daylighting, we always specify the lowest-profile square bead available.
Oversized glass systems introduce significant implementation risks. Structural deflection from above is a primary concern. The building's weight must not crush the operable tracks. Oversized aluminum systems require zero-deflection headers. We often utilize steel I-beams or heavy engineered lumber (LVLs) to ensure the doors glide smoothly over their lifespan. The industry standard deflection limit for these headers is L/720. Any sagging in the header will immediately compromise the door's operation and void the manufacturer's warranty.
Creating a seamless indoor-outdoor transition requires a flush-sill installation. This introduces complex drainage requirements. Large surface areas of glass shed massive amounts of water during rainstorms. Integrated sub-sill drainage pans are mandatory to mitigate water intrusion risks. The water must be channeled away from the interior floor efficiently. We typically drop the rough floor framing by two to three inches to accommodate the sill pan and the recessed track.
Ordering custom configurations involves extended lead times, often reaching 12 to 16 weeks. Site handling logistics also require careful planning. Oversized panels cannot be moved by hand. Specialized glazing equipment is necessary to safely maneuver and install the heavy glass units without causing damage to the frames or the building site.
A: Yes. Modern systems utilize advanced polyamide thermal breaks that separate the interior and exterior frames, stopping heat transfer. When paired with low-E glass and argon gas fills, they easily meet strict energy codes in cold climates.
A: Aluminum is significantly stronger than vinyl. This strength allows for much narrower frame profiles and larger glass-to-frame ratios. Consequently, aluminum systems allow substantially more natural light into the home than bulky vinyl frames.
A: Industry-standard maximums for custom aluminum panels often reach 10 to 12 feet in height and 6 to 8 feet in width per panel. The exact maximum depends on the specific hardware and structural engineering of the building.
A: Older, non-thermally broken aluminum frames are prone to condensation. However, high-quality modern systems feature thermal struts that prevent the interior frame from reaching the dew point, mitigating condensation risks entirely.
A: No. Aluminum has superior thermal stability and a very low expansion rate compared to vinyl and wood. This prevents the frames from sticking, warping, or developing air leaks during extreme seasonal temperature shifts.
A: Yes, flush sills are a popular design choice for seamless transitions. However, they require meticulous planning and the installation of advanced sub-floor drainage systems to prevent exterior water from entering the interior space.
