The architectural shift toward adaptable, open-plan living requires fenestration solutions capable of bridging indoor and outdoor environments without compromising structural integrity or climate control. Specifying doors for large, non-standard openings often forces a compromise between maximizing clear space, maintaining slim sightlines, and ensuring long-term weather resistance. Traditional wood or vinyl systems frequently fail to meet the load-bearing or durability requirements of expansive spans. When structural headers deflect or materials warp under thermal stress, the entire system binds, leading to costly callbacks and operational failure. Analyzing how aluminum folding doors address these specific architectural challenges provides a technical evaluation of their structural capabilities, thermal performance, and long-term value compared to alternative materials. By examining extrusion profiles, thermal break integration, and track load distribution, builders and architects can specify systems that deliver seamless spatial transitions while maintaining rigorous energy code compliance.
Modern indoor-outdoor transitions require unobstructed views, ease of operation, and strict climate isolation when closed. Standard sliders restrict spatial flow by overlapping panels, permanently blocking half the opening. Vinyl and timber systems struggle under the weight of oversized glass. They warp or sag over time, compromising weather seals and track alignment. When a timber frame absorbs moisture, it swells, causing the door panels to drag along the bottom track. Vinyl frames lack the rigidity needed for large spans, often requiring bulky steel reinforcements that ruin the minimalist aesthetic desired in modern architecture.
Bespoke sizing accommodates unique architectural layouts. Standard off-the-shelf sizes fail in retrofits and expansive modern builds where rough openings rarely match factory defaults. Specifying custom patio doors ensures precise integration into complex floor plans. You can adjust panel widths, heights, and track depths to match the exact structural constraints of the building. Commercial infrastructure modernization relies heavily on these adaptable systems. High-end commercial spaces, office boardrooms, and storefronts utilize them to partition zones dynamically. Indoor-outdoor restaurant dining areas maximize seating capacity and airflow during favorable weather, then seal tightly against the elements when conditions deteriorate.
The success criteria for these installations go beyond simple aesthetics. The system must operate smoothly with minimal force, even when individual panels weigh upwards of 200 pounds. The hardware, including hinges, multipoint locks, and bottom rollers, must withstand thousands of cycles without degrading. Furthermore, the weatherstripping must maintain a continuous compression seal to prevent air infiltration and water ingress during severe storms. Achieving this level of performance requires materials engineered for exact tolerances and long-term dimensional stability.
Consider the structural demands of a 20-foot wide opening. A standard sliding door would require massive, heavy panels that are difficult to move and still leave a significant portion of the opening blocked. A folding system, however, distributes the weight across multiple hinged panels that stack neatly to one side. This configuration demands a top-hung track system supported by a robust structural header, or a bottom-rolling system where the sill bears the dead load. The choice between top-hung and bottom-rolling depends entirely on the building's structural framework and the allowable deflection limits of the header.

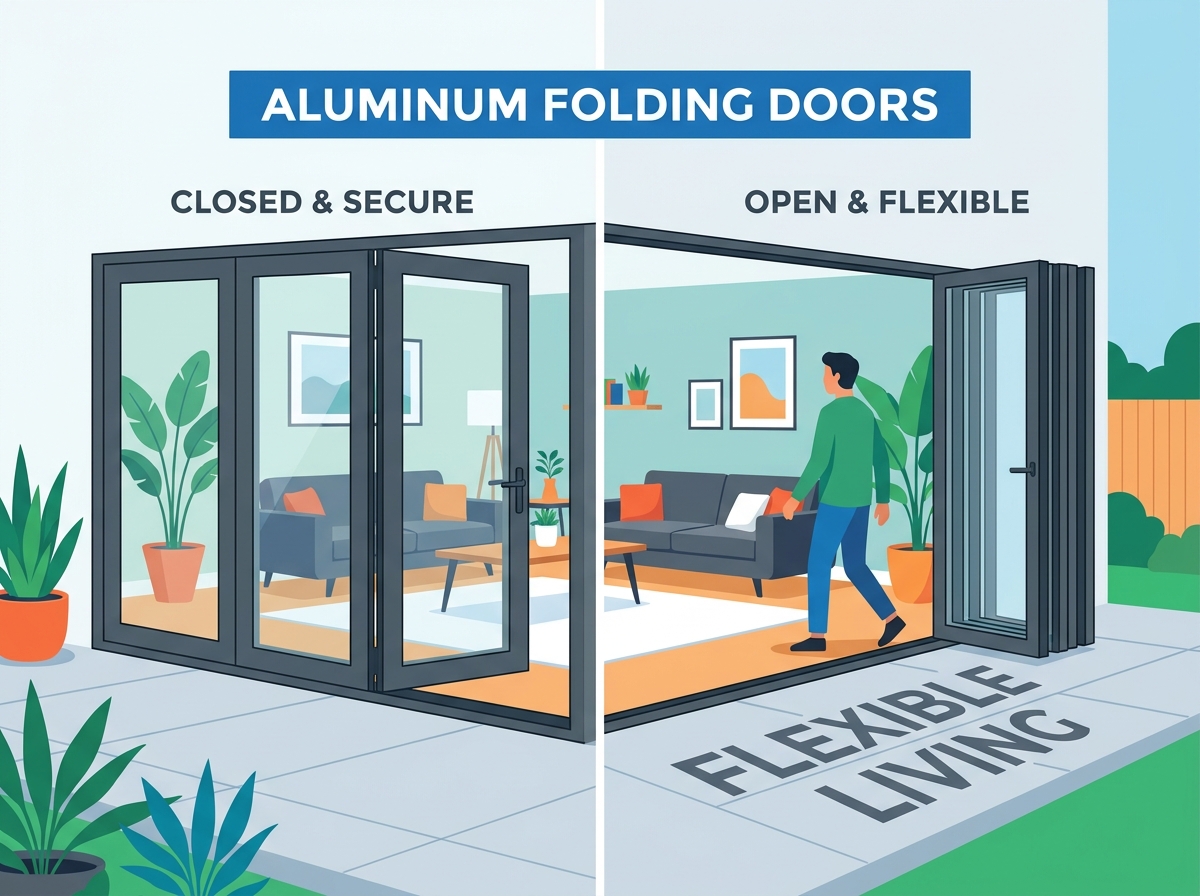

The accordion-style folding mechanism transforms room utility. Up to 90% of the aperture remains unobstructed when fully open. This fundamental shift in spatial flow merges interior living areas with exterior decks or patios. Massive glass-to-frame ratios maintain a continuous visual connection. They maximize natural daylighting even when folding glass doors are fully closed. The slim sightlines achieved with aluminum extrusions mean less frame and more glass, providing expansive, uninterrupted views.
Structural flexibility accommodates unusually sized openings. Engineers can design segmented curved layouts and zero-post corner configurations. These 90-degree bifold systems eliminate corner support pillars, creating a striking architectural feature. When the doors open, the entire corner of the building disappears, seamlessly blending the interior with the exterior landscape. This requires meticulous engineering to ensure the cantilevered roof structure above the corner can support the loads without sagging.
Aluminum possesses exceptional tensile strength. It supports heavier, double- or triple-glazed panels while maintaining minimal frame profiles. Extruded aluminum resists warping, expanding, or contracting under extreme temperature fluctuations. This dimensional stability ensures consistent track alignment and effortless operation over decades of use. Unlike wood, which expands in high humidity, or vinyl, which becomes brittle in freezing temperatures, aluminum maintains its structural integrity across all climate zones.
The load-bearing capabilities of aluminum allow for taller and wider individual panels. While wood or vinyl panels might be restricted to 3 feet in width and 8 feet in height, aluminum panels can often reach 4 feet wide and 10 to 12 feet tall. This reduces the total number of panels required for a given opening, further minimizing vertical sightlines and maximizing the glass area. The hardware integrated into these aluminum frames is equally robust, featuring stainless steel multi-point locking mechanisms and heavy-duty carriage rollers designed to handle the increased panel weight.
To fully leverage these spatial benefits, the installation must account for the specific folding configuration. Systems can fold inward or outward, stack to the left, right, or split in the middle. Outward folding systems are generally preferred for exterior applications, as they do not encroach on interior floor space and provide better weather resistance against wind-driven rain. The track design must also accommodate the chosen configuration, ensuring smooth transitions as the panels glide and fold into their stacked position.
Material selection dictates maintenance lifecycles and structural longevity. Powder-coated aluminum offers a low-maintenance reality. Wood requires frequent sealing and painting to prevent rot and moisture damage. Vinyl faces severe UV degradation risks, becoming brittle and discolored under intense sunlight. Aluminum excels in high-moisture and coastal environments. Marine-grade finishes prevent oxidation and resist salt spray corrosion.
Ultra-wide spans demand high structural integrity. Aluminum represents the only viable material for massive openings without requiring excessively bulky supporting frames. Wood and vinyl require thicker profiles to support the same glass weight, reducing the transparent viewing area. When specifying fenestration for a 30-foot opening, the structural limitations of wood and vinyl become immediately apparent. Wood frames would need to be exceptionally thick, obstructing the view and adding immense weight to the system. Vinyl frames would require extensive steel reinforcement, complicating the manufacturing process and increasing the risk of thermal bowing.
| Material | Structural Strength | Maintenance Level | Weather Resistance | Sightline Profile | Thermal Expansion |
|---|---|---|---|---|---|
| Aluminum | High (Supports ultra-wide spans) | Low (Occasional cleaning) | Excellent (Corrosion resistant) | Slim / Minimalist | Low |
| Wood | Moderate (Prone to sagging) | High (Requires frequent sealing) | Moderate (Vulnerable to moisture) | Thick / Bulky | Moderate (Moisture dependent) |
| Vinyl | Low (Requires steel reinforcement) | Low (Easy to wipe down) | Poor (UV degradation risk) | Thick | High |
The dimensional stability of aluminum directly impacts the performance of the weather seals. Because aluminum does not warp or twist, the compression seals maintain consistent contact along the entire perimeter of the frame. Wood frames, as they warp over time, create gaps in the weatherstripping, leading to drafts and water leaks. Vinyl frames, subject to significant thermal expansion and contraction, can cause the seals to bind or tear, requiring frequent replacement.
Furthermore, the finishing options for aluminum far exceed those available for wood or vinyl. Aluminum can be anodized or powder-coated in virtually any color, allowing for precise matching with existing architectural elements. These finishes are highly durable, resisting scratches, fading, and chalking. Wood requires ongoing maintenance to preserve its finish, while vinyl is typically limited to a few standard colors that cannot be easily painted or altered.
Older aluminum systems suffered from conductive heat transfer. Modern engineering eliminates this cold frame issue. Polyamide structural thermal breaks sit within the aluminum extrusion. They separate the interior and exterior metal profiles, preventing thermal bridging. This technology keeps interior surfaces comfortable regardless of outside temperatures. The thermal break acts as an insulator, stopping the flow of heat or cold through the highly conductive aluminum frame.
Glazing specifications dictate energy code compliance. High-performance units utilize Low-E coatings, argon gas fills, and triple glazing. These elements lower the U-factor and optimize the Solar Heat Gain Coefficient (SHGC). Multi-point locking systems, EPDM gaskets, and weather-rated tracks prevent wind-driven rain and air infiltration. Tight compression seals engage when the door locks, ensuring maximum ingress protection during severe weather events.
The depth of the thermal break directly correlates with the system's overall thermal performance. Wider polyamide strips provide better insulation, allowing the system to achieve lower U-factors. In extreme climates, manufacturers may insert insulating foam into the hollow chambers of the aluminum extrusion to further reduce heat transfer. This combination of thermal breaks, foam insulation, and high-performance glazing allows aluminum systems to meet or exceed the most stringent energy codes, including Passive House standards in some cases.
Weatherproofing extends beyond the frame and glazing. The design of the track and sill plays a critical role in managing water infiltration. Weather-rated rebated tracks feature a raised lip and integrated drainage channels. When wind-driven rain hits the door panels, the water runs down the face of the glass, into the track, and is channeled outside through weep holes. Proper installation of sill pans and flashing is essential to ensure this drainage system functions correctly and prevents water from penetrating the building envelope.
Air infiltration is another critical factor in environmental performance. Aluminum folding systems utilize multiple layers of weatherstripping, including Q-Lon seals and EPDM gaskets, to create an airtight barrier. When the multi-point locking system engages, it pulls the panels tightly against the frame, compressing the seals and eliminating drafts. This airtight construction not only improves energy efficiency but also enhances acoustic performance, reducing noise transmission from the outside environment.
Threshold selection impacts accessibility and weatherproofing. Flush tracks sit level with the finished floor. They provide seamless accessibility and work perfectly for interior room division. Weather-rated rebated tracks feature a raised lip. They are strictly necessary for exterior applications exposed to the elements, preventing water ingress. The choice between a flush track and a rebated track involves a trade-off between accessibility and weather resistance. Flush tracks offer a smooth, trip-free transition but provide minimal protection against wind and rain. Rebated tracks offer superior weatherproofing but create a small step at the threshold.
Panel configurations determine daily usability. Specifying an odd number of panels allows for a single active traffic door. This hinged panel provides quick access without opening the entire system. Aluminum bifold doors adapt across architectural styles. Designers specify glazing beads, hardware, and simulated divided lites to match traditional, industrial, transitional, or ultra-modern aesthetics. AAMA-certified powder coatings and anodized finishes offer immense durability. They resist scratching and fading while matching existing architectural elements perfectly.
The integration of a traffic door is highly recommended for primary entry points. It allows users to pass through the opening without unlatching and folding the entire panel assembly. This is particularly useful in residential applications where the doors lead to a frequently used patio or garden. The traffic door operates just like a standard swing door, complete with a lever handle and a multi-point locking mechanism for security.
Hardware selection also plays a significant role in the overall aesthetic. Manufacturers offer a range of handle styles, from minimalist flush pulls to robust lever handles, available in various finishes such as brushed stainless steel, matte black, or custom powder-coated colors. The hinges can be exposed for an industrial look or concealed within the frame for a clean, modern appearance. The choice of hardware should complement the architectural style of the building and the specific finish of the aluminum frames.
Simulated divided lites (SDLs) can be applied to the glass to create the appearance of traditional multi-pane windows. This allows aluminum folding systems to blend seamlessly with historic or traditional architecture while still providing the benefits of modern materials and engineering. The SDL bars are permanently adhered to the interior and exterior surfaces of the glass, with a spacer bar installed between the panes to complete the illusion of separate glass units.
Large-format fenestration requires rigorous structural support. Calculating dead loads and strict deflection limits is a critical necessity. The structural header must bear the entire weight of top-hung systems. Inadequate headers lead to sagging, binding, and eventual operational failure. Deflection must typically remain under L/720 to ensure smooth track movement. If the header deflects even a quarter of an inch under the weight of the doors or the roof load above, the top track will bow, causing the carriage rollers to bind and the panels to jam.
Installation demands zero-tolerance precision. Tracks and frames require exact leveling and plumb lines. Even minor deviations cause heavy panels to drag or fail to lock properly. Mitigating water intrusion risks requires proper sub-sill drainage systems. Installers must integrate sill pans and weep holes, especially when specifying low-profile thresholds in exterior applications. The sill pan acts as a secondary barrier, catching any water that bypasses the primary seals and directing it safely to the exterior.
The installation process begins with a thorough inspection of the rough opening. The framing must be square, plumb, and level. Any discrepancies must be corrected before the door frame is installed. The structural header must be verified to ensure it meets the manufacturer's deflection requirements. Once the rough opening is prepared, the sill pan is installed and properly flashed to the building's weather-resistant barrier.
The aluminum frame is then assembled and secured into the opening. The top track must be perfectly level to ensure the panels hang plumb and operate smoothly. The side jambs must be plumb to ensure the panels seal tightly against the frame when closed. Shims are used to adjust the frame and maintain the required tolerances. Once the frame is secure, the panels are hung on the carriage rollers and adjusted for height and alignment. The final step involves installing the hardware, adjusting the multi-point locks, and applying the perimeter sealant.
Proper maintenance is essential to ensure the long-term performance of the system. The bottom track must be kept clear of dirt, debris, and pet hair, which can interfere with the operation of the guide rollers. The stainless steel hardware, including hinges and locks, should be lubricated annually with a silicone-based spray. The powder-coated or anodized frames can be cleaned with a mild soap and water solution. Abrasive cleaners and harsh chemicals should be avoided, as they can damage the finish.
Follow these action-oriented steps for successful implementation:
A: Yes. Modern systems utilize polyamide thermal breaks within the frame and insulated glass units to prevent heat transfer. This advanced construction allows them to meet or exceed strict local energy codes.
A: Custom systems can span upwards of 40 to 50 feet, depending on the manufacturer and structural header capacity. Individual panels often reach up to 4 feet in width and 10 feet in height.
A: Yes. Aluminum's structural strength allows engineers to design zero-post 90-degree corners and segmented curved openings. These configurations match unique architectural floor plans seamlessly.
A: Yes. These doors are typically top-hung to ensure smooth operation. The structural header must support the substantial weight of the glass and frames with minimal deflection, often limited to L/720.
A: A flush track sits level with the floor for a seamless transition but offers minimal water resistance. A weathered rebated track features a raised lip and drainage system to protect against wind and rain.
A: Maintenance requires periodic cleaning of the bottom track to remove debris. You must lubricate the stainless steel rollers and hinges annually, and wash the powder-coated frames with mild soap and water.
A: They are highly secure. They feature multi-point locking systems integrated into the extrusions, internally glazed panels to prevent glass removal from the outside, and high-security shoot bolts on the folding stiles.
