When evaluating exterior upgrades, property owners often question if aluminum glass garage doors provide adequate thermal resistance alongside their modern aesthetic. The direct answer is that standard glass and metal assemblies are inherently less energy-efficient than solid, foam-injected steel or composite doors. Glass acts as a poor insulator, and aluminum functions as a highly conductive metal that transfers heat rapidly from the exterior to the interior. Without specific engineering modifications, these doors will leak heat in the winter and bake your garage in the summer.
However, modern manufacturing has transformed how these architectural doors perform in the field. By integrating heavy-duty thermal breaks, insulated frame extrusions, and advanced glazing technologies, manufacturers have narrowed the performance gap. You can now configure a glass door that meets the specific climate demands of your region without sacrificing the visual appeal. This breakdown covers the reality of thermal performance, the metrics that actually matter, and how to specify a door assembly that prevents extreme temperature swings in your space.

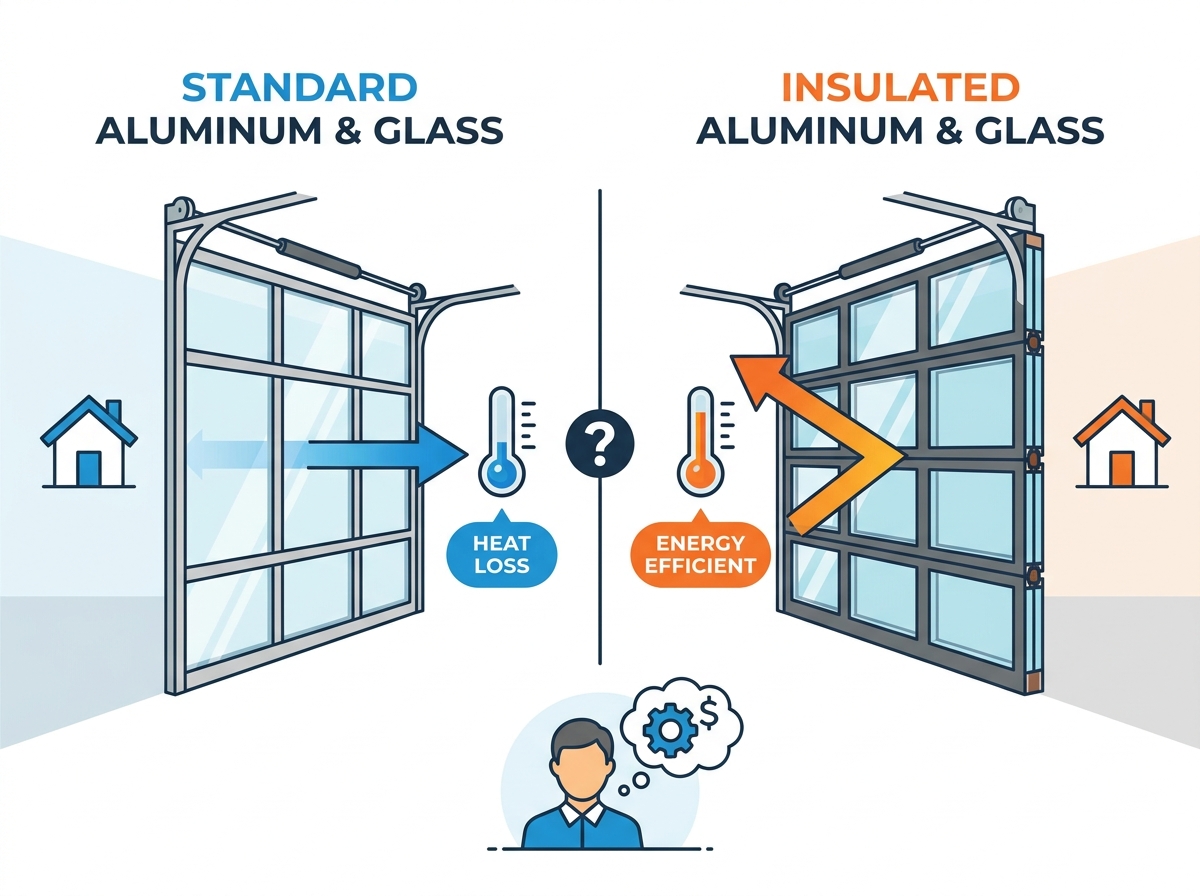

Standard glass garage doors prioritize light transmission and visual appeal over thermal retention. Unlike traditional steel doors packed with two inches of dense polyurethane foam, single-pane glass panels offer almost zero resistance to heat flow. Furthermore, standard aluminum frames act as massive thermal bridges. In winter, the freezing outside temperature travels quickly through the metal frame directly to the interior face of the door. In summer, the reverse happens, pulling ambient heat into the garage. Without specific thermal upgrades, a basic glass garage door results in severe temperature fluctuations inside the space, making it unsuitable for conditioned garages.
You cannot expect a glass door to match the R-18 or R-20 insulation values of a premium solid steel door. The physics of the materials simply do not allow it. However, you can achieve highly respectable thermal performance by upgrading to full view garage doors equipped with insulated glass units (IGUs) and thermally broken frames. A properly configured glass door achieves performance levels suitable for heated or cooled garages, keeping the space comfortable for use as a home office, gym, or active workshop. The goal is not to eliminate heat transfer entirely, but to manage it effectively enough to prevent extreme temperature swings and excessive HVAC loads.
Seasonal extremes expose the vulnerabilities of poorly specified garage doors immediately. During winter months in northern climates, a non-insulated glass door allows rapid heat loss. This often leads to condensation and frost buildup on the interior aluminum frame components, forcing heating systems to run constantly to maintain baseline temperatures. Conversely, in southern climates during the summer, clear single-pane glass acts exactly like a greenhouse. Solar radiation penetrates the glass, trapping heat inside the garage and driving up cooling loads for adjacent living spaces. Proper glazing and frame selection mitigate both the winter heat loss and the summer solar heat gain.
The garage door industry frequently advertises R-value, which measures a specific material's resistance to heat flow. Higher R-values indicate better insulation. However, R-value is primarily useful for solid, opaque materials like foam insulation boards. When evaluating glass doors, U-factor is the accurate metric you need to watch. U-factor measures the rate of heat transfer through an entire assembly, including the glass, the metal frame, the spacers, and the perimeter seals. A lower U-factor indicates better insulation. Because glass and aluminum interact differently with heat than solid foam, focusing on the U-factor provides a truer picture of how the door will perform in real-world weather conditions.
| Metric | What It Measures | Best Application | Ideal Score |
|---|---|---|---|
| R-Value | Thermal resistance of a specific material | Solid steel doors, foam insulation | Higher is better |
| U-Factor | Overall heat transfer of the entire assembly | Glass doors, windows, skylights | Lower is better |
| Solar Heat Gain Coefficient (SHGC) | Fraction of solar radiation admitted | Glass panels in hot climates | Lower is better for cooling |
Many buyers focus entirely on the glass when considering energy efficiency, completely ignoring the structural skeleton of the door. Aluminum is an excellent conductor of thermal energy. If the exterior face of the aluminum frame gets cold, that cold transfers directly through the solid metal to the interior face. This process, known as thermal bridging, accounts for a massive percentage of heat loss in full view doors. Even if you install the highest-rated insulated glass available, a standard continuous aluminum frame will bypass that insulation entirely, radiating cold or heat into your garage like a giant radiator.
Thermal transfer through materials is only half the equation; air leakage often causes more immediate temperature drops. Full view doors consist of multiple horizontal sections connected by heavy-duty hinges. Every joint between these sections, as well as the perimeter where the door meets the jambs and the concrete floor, represents a potential gap for air infiltration. High winds push cold air through inadequate section joints or worn bottom weather seals. Effective energy efficiency relies heavily on the quality, compression, and durability of the weatherstripping used throughout the door assembly.
To combat thermal bridging, premium insulated glass garage doors utilize thermally broken frames. A thermal break is a non-conductive material, typically a rigid polyurethane or polyamide strut, inserted between the exterior and interior halves of the aluminum frame during the extrusion process. This physical barrier stops the direct transfer of heat or cold through the metal. Additionally, the hollow cavities within the aluminum extrusions can be injected with high-density polyurethane foam, further reducing heat flow and adding significant structural rigidity to the door sections to prevent sagging over time.
The glass you select dictates the majority of the door's performance. Moving away from basic single-pane glass is mandatory for any conditioned space.
Upgrading the perimeter seals is necessary for maximizing the efficiency of the door assembly. Standard vinyl seals stiffen and crack in extreme cold, losing their ability to block drafts. Upgrading to premium EPDM rubber or silicone weatherstripping ensures the seals remain flexible and maintain a tight compression against the door jambs and floor, regardless of outside temperatures. High-quality doors feature integrated weather seals between each horizontal door section to block wind-driven air and moisture from penetrating the joints.
In residential settings, the application dictates the required energy efficiency. For attached garages that share walls or ceilings with living spaces, thermal performance is a strict requirement. Heat loss in the garage directly impacts the heating and cooling loads of the adjacent rooms, forcing your home's HVAC system to work overtime. In these scenarios, thermally broken frames and Low-E double-pane glass are mandatory. For detached garages, workshops, or spaces converted into indoor-outdoor living areas, the focus shifts slightly toward maximizing natural light and ventilation, though insulation remains important for year-round comfort.
Commercial applications often prioritize durability, light, and operational flow over strict thermal retention. Restaurants, breweries, and cafes frequently use glass garage doors to merge indoor dining spaces with outdoor patios. In these environments, the doors remain open during business hours, making extreme insulation less critical than smooth operation and aesthetic appeal. However, for commercial auto shops or retail storefronts where climate control is necessary for inventory or employee comfort, specifying high-performance insulated glazing is essential to manage overhead utility expenses.
Designing a door for specific regional climates requires careful selection of components. In hot, southern climates like Texas or Florida, the primary enemy is solar heat gain. Doors in these regions must feature heavy tinting, reflective coatings, or Low-E glass to block UV rays and prevent the garage from becoming an oven. In cold, northern climates, the focus shifts to retaining interior heat. Thermally broken frames, argon-filled IGUs, and cold-weather-rated EPDM bottom seals are non-negotiable to prevent drafts and interior frosting.
| Climate Zone | Primary Challenge | Recommended Frame | Recommended Glazing |
|---|---|---|---|
| Northern / Cold | Heat loss, frame frosting | Thermally broken, foam-filled | Double-pane, Low-E, Argon gas |
| Southern / Hot | Solar heat gain, UV damage | Standard or thermally broken | Tinted, reflective, Low-E coating |
| Coastal / Humid | Corrosion, high winds | Heavy-duty aluminum, reinforced | Impact-rated laminated glass |
Property owners must prepare for the upfront premium associated with high-performance glass doors. A standard uninsulated steel door is relatively inexpensive to manufacture and ship. In contrast, precision-extruded aluminum frames, custom-cut insulated glass units, and specialized thermal break technology require significant manufacturing resources and careful handling. Adding custom powder-coated finishes or specialized glass tints further increases the initial investment. Understanding this premium is necessary when setting project budgets and comparing bids from different contractors.
Determining the return on investment for energy-efficient glass doors involves evaluating localized utility rates and garage usage. If the garage is heated or cooled continuously, upgrading to thermally broken frames and Low-E glass yields measurable reductions in monthly utility bills. Over the lifespan of the door, these savings offset the initial premium. However, if the garage is unconditioned and merely serves as vehicle storage, the energy savings remain negligible. In unconditioned spaces, the investment in thermal upgrades should be viewed primarily as a structural and aesthetic enhancement rather than a financial payback mechanism.
For projects where the aesthetic of glass is desired but the budget or extreme climate prohibits a full view door, alternative compromises exist. Many manufacturers offer standard insulated steel doors with extensive window insert options. You can specify a high-R-value steel door and run a continuous row of insulated glass windows along the top or middle sections. This approach provides natural light and a modern look while maintaining the superior thermal retention of a solid, foam-injected steel door at a lower overall cost.
When selecting an aluminum garage door supplier, demand transparency regarding thermal performance. Reputable manufacturers provide independent testing data rather than relying on marketing claims. Look for NFRC (National Fenestration Rating Council) labels or verified U-factor ratings for the entire door assembly, not just the center-of-glass ratings. This ensures you are comparing accurate data when evaluating different brands and models for your project.
Review the technical specifications closely before finalizing an order. Key details to verify include the wall thickness of the aluminum extrusions, the specific type of thermal break used, and the wind-load ratings for your specific geographic area. Ensure the supplier offers customizable glazing options, allowing you to specify the exact glass thickness, tint, and gas fills required for your climate zone. A supplier that only offers one type of glass is likely cutting corners on performance.
The most energy-efficient door on the market fails if installed incorrectly. Precise track alignment is required to ensure the door sections compress evenly against the perimeter weatherstripping. Improper spring tensioning causes the door to sag, creating air gaps at the header or floor. Partner with experienced, specialized technicians who understand the unique weight distribution and sealing requirements of heavy glass doors to guarantee optimal thermal performance.
Maximizing the efficiency of a glass garage door requires attention to detail during the specification and installation phases. Follow these steps to ensure your new door performs as expected:
A: Yes, if you use standard clear, single-pane glass. The glass acts like a greenhouse, trapping solar heat inside the space. To prevent this, you must specify Low-E coatings, tinted glass, or reflective glazing to block UV rays and manage solar heat gain effectively.
A: While technically possible on some models, it is rarely recommended. Glass panels are significantly heavier than solid steel or aluminum panels. Swapping them alters the door's weight, requiring a complete recalculation and replacement of the torsion springs and track hardware to operate safely.
A: A thermal break is a highly insulating material, usually polyurethane or polyamide, placed between the inner and outer layers of the aluminum frame. It physically separates the metal, stopping the direct transfer of cold or heat from the outside to the inside of the garage.
A: Modern glass doors use tempered glass, which is highly resistant to impact and shatters into small, blunt pieces if broken, reducing injury risk. For enhanced security, you can upgrade to laminated glass or frosted options that obscure the interior view from the street.
A: Wash the glass panels with a standard non-abrasive glass cleaner and a soft cloth. Clean the aluminum frames with mild soap and water. Inspect and lubricate the hinges, rollers, and tracks annually, and check the weatherstripping for signs of wear or cracking.
