When architects and homeowners begin the meticulous process of designing a highly energy-efficient building envelope, one of the most critical decisions they face is selecting the right fenestration materials. The debate between different framing materials has evolved significantly over the past few decades, driven by advancements in material science, stricter building codes, and a growing global emphasis on sustainable construction. At the center of this ongoing industry conversation is the choice between an aluminum window frame and a vinyl window frame. Both materials offer distinct advantages and present unique challenges when it comes to thermal performance, structural integrity, aesthetic versatility, and long-term durability. Understanding the complex interplay between these factors is essential for making an informed decision that aligns with the specific energy goals, architectural vision, and environmental demands of a given project.
The building envelope acts as the primary thermal barrier between the interior conditioned space and the fluctuating exterior environment. Windows, by their very nature, are often the most vulnerable points in this barrier. They are responsible for a significant portion of a building's heat loss in the winter and heat gain in the summer. Consequently, the thermal resistance of the window assembly—comprising both the glazing and the frame—is a paramount concern. Historically, the conversation around window energy efficiency focused heavily on the glass itself, leading to the widespread adoption of double-pane and triple-pane insulated glass units (IGUs), low-emissivity (Low-E) coatings, and inert gas fills like argon and krypton. However, as glazing technologies have approached their theoretical limits of thermal resistance, the focus has inevitably shifted to the framing materials. The frame constitutes a substantial percentage of the total window area, and its conductive properties can severely compromise the overall energy performance of the fenestration system if not properly addressed.

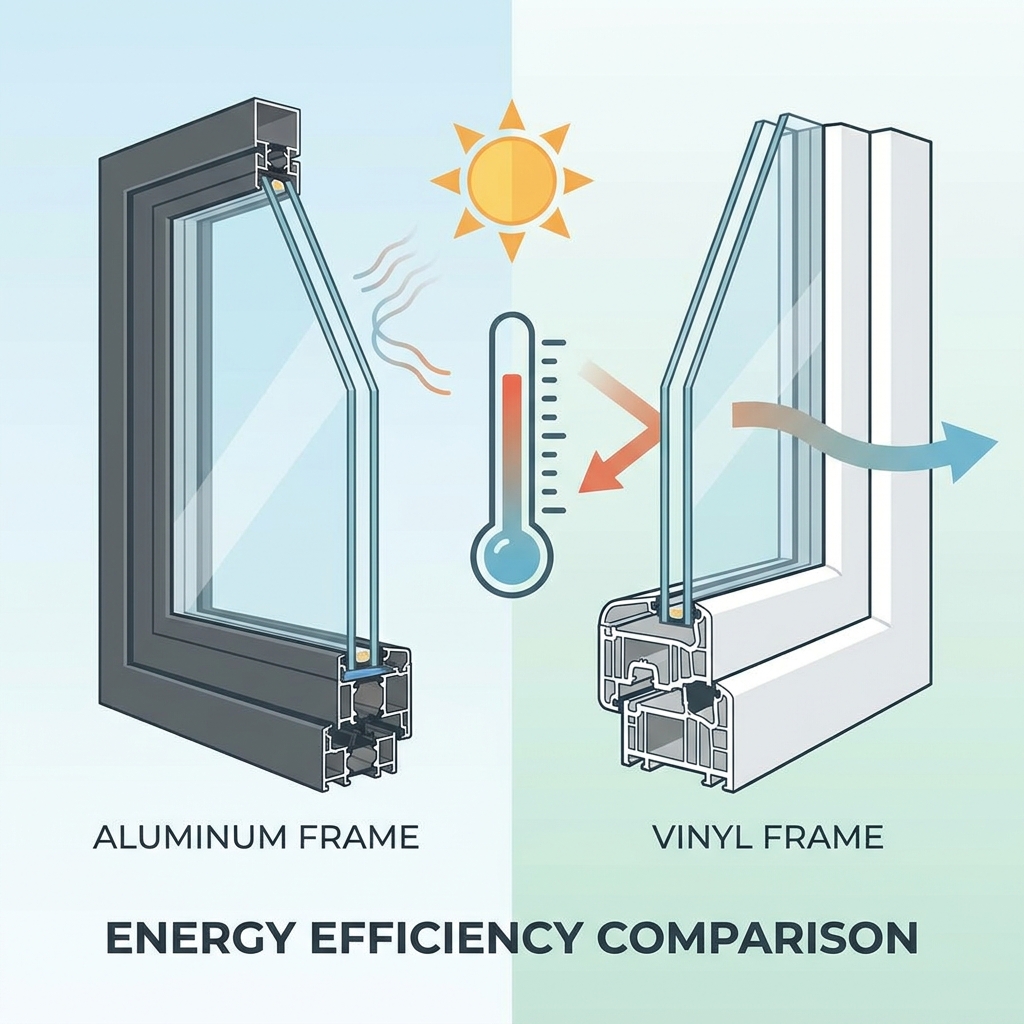

For decades, the aluminum window frame has been a staple in commercial and high-end residential construction. Its inherent structural strength, exceptional durability, and sleek, minimalist aesthetic have made it a favorite among architects seeking to create expansive walls of glass and maximize natural daylight. Aluminum is an abundant, lightweight, and highly malleable metal that can be extruded into complex profiles, allowing for precise engineering and seamless integration with various architectural styles. Unlike organic materials, aluminum does not warp, rot, swell, or degrade when exposed to moisture or ultraviolet radiation. This dimensional stability ensures that the window assembly maintains its structural integrity and airtightness over a long lifespan, even in harsh climates.
However, the traditional aluminum window frame faced a significant hurdle in the realm of energy efficiency: thermal conductivity. Aluminum is an excellent conductor of heat. In a cold climate, a solid aluminum frame acts as a thermal bridge, rapidly transferring valuable interior heat to the cold exterior. This not only results in higher heating costs but also creates cold interior surfaces that can lead to condensation, frost formation, and potential moisture damage to adjacent interior finishes. Conversely, in a hot climate, the frame conducts solar heat into the building, increasing the cooling load. For many years, this high thermal conductivity relegated aluminum windows to applications where structural strength and aesthetics outweighed energy performance concerns, or to mild climates where extreme temperature differentials were not a primary factor.
The fenestration industry recognized the need to marry the structural and aesthetic benefits of aluminum with improved thermal performance. The solution came in the form of thermal break technology. Modern high-performance aluminum window frames are now engineered with a structural insulating barrier—typically made of polyamide or polyurethane—inserted between the interior and exterior aluminum extrusions. This thermal break interrupts the continuous path of thermal conduction, drastically reducing the transfer of heat and cold through the frame. The introduction of the thermal break revolutionized the energy performance of aluminum windows, allowing them to compete effectively with, and in some cases surpass, the thermal efficiency of other framing materials, while retaining their superior strength and durability.
Vinyl, or unplasticized polyvinyl chloride (uPVC), emerged as a popular alternative to traditional wood and aluminum frames, primarily driven by its low cost, low maintenance requirements, and inherent thermal resistance. Unlike aluminum, vinyl is a poor conductor of heat. A standard vinyl frame naturally resists the transfer of thermal energy, making it an inherently energy-efficient material. To further enhance their thermal performance, vinyl window profiles are typically designed with multiple internal hollow chambers. These chambers trap air, which acts as an additional insulating layer, further reducing thermal transmittance. Some premium vinyl windows even feature chambers filled with insulating foam to maximize their energy efficiency.
The energy efficiency of vinyl windows has made them a dominant force in the residential replacement window market. They offer a cost-effective way for homeowners to upgrade their building envelope and reduce energy consumption. Furthermore, vinyl frames are highly resistant to moisture, meaning they will not rot or corrode, and they do not require painting or sealing, making them a virtually maintenance-free option. The color is typically extruded throughout the material, so scratches or minor surface damage are less noticeable than on painted or coated surfaces.
Despite their excellent thermal properties and low maintenance appeal, vinyl window frames have inherent limitations, particularly concerning structural strength and aesthetic versatility. Vinyl is a relatively flexible material, significantly weaker than aluminum. To support the heavy weight of insulated glass units, especially in large window configurations, vinyl frames must be manufactured with thicker, bulkier profiles. This increased frame thickness reduces the overall glass area, limiting the amount of natural light that can enter the space and obstructing views. For architects and homeowners seeking a modern, minimalist aesthetic with slim sightlines, the bulky appearance of vinyl frames is often a significant drawback.
Furthermore, vinyl is susceptible to thermal expansion and contraction. In environments with extreme temperature fluctuations, vinyl frames can expand and contract significantly. Over time, this movement can stress the window seals, potentially leading to air infiltration, water leaks, and a degradation of the window's overall energy performance. In very hot climates, lower-quality vinyl can even warp or distort under intense solar radiation. While internal steel or aluminum reinforcements can be added to vinyl profiles to improve their rigidity, this adds complexity and cost, and can sometimes compromise the thermal performance if the reinforcement acts as a thermal bridge within the frame.
When comparing an aluminum window frame to a vinyl counterpart, the structural superiority of aluminum becomes a decisive factor in many architectural applications. The high strength-to-weight ratio of aluminum allows for the creation of exceptionally large window units that would be impossible or impractical to achieve with vinyl. This structural integrity is particularly crucial in commercial buildings, high-rise residential towers, and custom architectural homes where expansive glazing is a defining design element. Aluminum frames can easily support the immense weight of triple-pane glazing or heavy, impact-resistant laminated glass without requiring excessively thick profiles.
This strength also translates to superior performance in extreme weather conditions. Buildings located in coastal areas prone to hurricanes or regions that experience severe storms require fenestration systems capable of withstanding extreme wind pressures and flying debris. Aluminum frames, when properly engineered and anchored, provide the necessary structural resilience to meet stringent building codes in these demanding environments. The dimensional stability of aluminum ensures that the window maintains its shape and airtightness even under intense wind loads, preventing structural failure and water infiltration.
One of the most celebrated aesthetic advantages of aluminum is its ability to be extruded into incredibly slim profiles. Because the material is inherently strong, less of it is needed to support the glass. This allows manufacturers to design custom window profiles that maximize the glass surface area, blurring the lines between indoor and outdoor spaces and flooding interiors with natural daylight. The sleek, narrow sightlines of aluminum frames are a hallmark of contemporary architecture, offering a clean, unobtrusive look that vinyl frames simply cannot replicate due to their need for bulkier structural support.

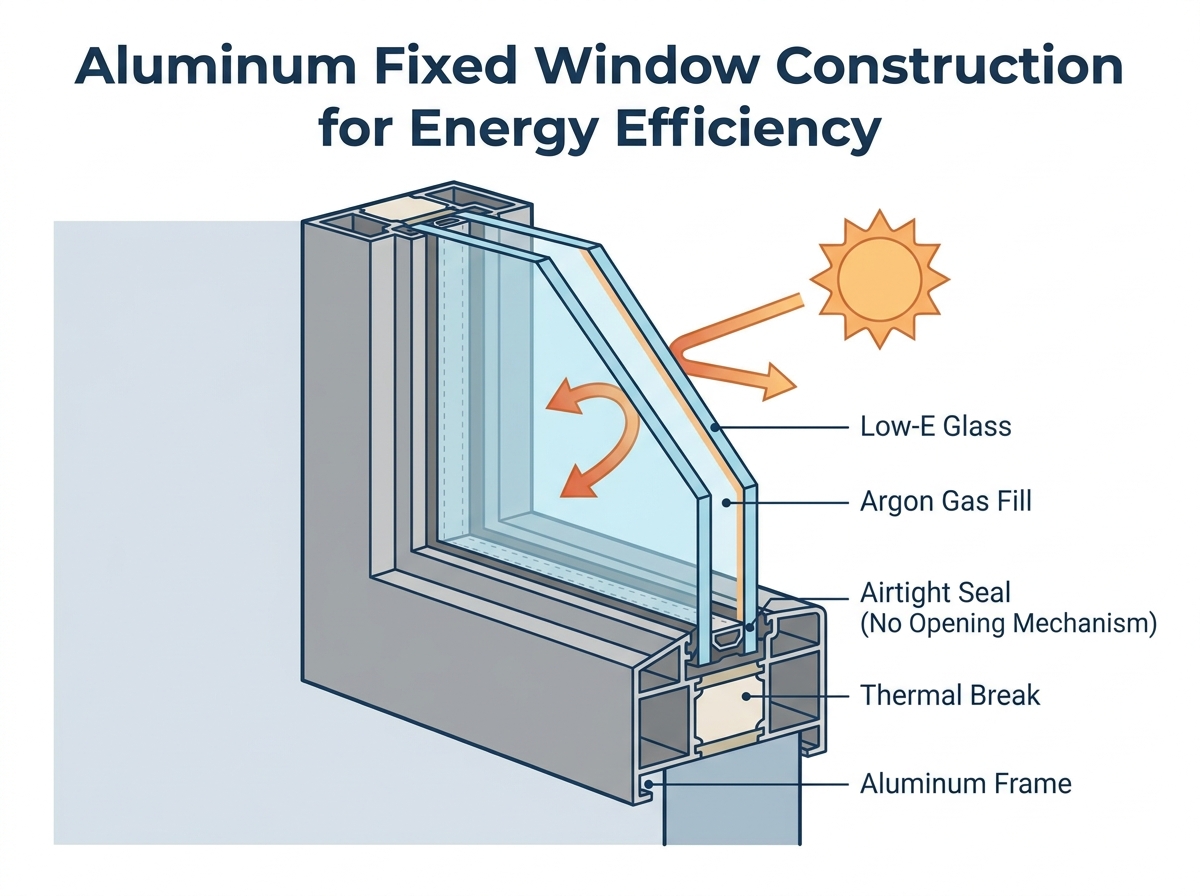

To fully appreciate the capabilities of modern aluminum fenestration, it is highly instructive to examine a specific, high-performance product engineered for demanding applications. The DAW Aluminium Fixed Window serves as an exemplary model of how advanced materials, precise engineering, and thermal optimization can converge to create a superior building component. Categorized under Fixed Windows, this product is designed specifically for situations where ventilation is not required, but where maximum natural light, exceptional thermal performance, and uncompromising structural integrity are paramount.
The foundation of the DAW Aluminium Fixed Window is its frame material, which utilizes Grade 6063-T5 Thermal Break Aluminum. The 6063-T5 alloy is renowned in the architectural industry for its excellent extrudability, high tensile strength, and superior surface finish quality. The "T5" designation indicates that the aluminum has been thermally treated and artificially aged to achieve optimal mechanical properties. Crucially, the integration of a thermal break within this robust aluminum profile addresses the traditional conductivity issues associated with metal frames. This thermal barrier effectively isolates the interior aluminum surface from the exterior environment, drastically reducing thermal transmittance and ensuring that the window contributes positively to the building's overall energy efficiency strategy.
The energy performance of the DAW Aluminium Fixed Window is further elevated by its sophisticated glazing options. The system is designed to accommodate Double or Triple Tempered Glass, as well as Laminated and Tinted options. To maximize thermal insulation, the windows utilize High-Performance Low-E (low-emissivity) glass. This specialized coating reflects interior heat back into the room during the winter while reflecting solar heat away during the summer, significantly reducing the reliance on artificial heating and cooling systems. Furthermore, the spaces between the glass panes are filled with Argon gas. Argon is denser than air, providing an additional layer of thermal resistance that minimizes conductive and convective heat transfer through the insulated glass unit.
A defining characteristic of the DAW Aluminium Fixed Window is its construction methodology. The glass is permanently glazed into the frame without any opening mechanism. By eliminating operable sashes, hinges, and complex locking hardware, the window creates a continuous, unbroken airtight seal. This permanent glazing completely prevents air infiltration, a major source of energy loss in operable windows. The absence of moving parts not only guarantees long-term airtightness but also significantly enhances security, providing exceptional forced entry resistance.
The rigorous engineering behind the DAW Aluminium Fixed Window translates into measurable performance metrics that meet the demands of complex architectural projects. Beyond thermal insulation, the combination of the robust 6063-T5 aluminum frame, specialized glazing, and permanent airtight seals results in exceptional acoustic performance. The window can achieve sound insulation ratings of up to 45 dB when equipped with the appropriate specialized glazing. This makes it an ideal solution for buildings located in noisy urban environments, near airports, or adjacent to busy highways, ensuring a quiet and comfortable interior acoustic environment.
Furthermore, the structural design of the DAW window incorporates structural glazing techniques engineered to withstand high wind pressures. The system boasts a Wind Pressure Resistance of Level 5+, indicating its capability to perform reliably in severe weather conditions. This high level of structural resilience makes the DAW Aluminium Fixed Window particularly suitable for high-rise buildings where wind loads increase exponentially with height, as well as for coastal areas prone to powerful storms and hurricanes.
The aesthetic versatility of the DAW Aluminium Fixed Window ensures that it can seamlessly integrate into a wide range of architectural styles. The slim-frame design maximizes the glass surface area, providing unobstructed views and abundant natural light. To complement various design palettes, the frames are available in a variety of standard finishes. These include highly durable Powder Coated finishes available in a wide spectrum of RAL colors, providing a tough, weather-resistant surface. Anodized finishes are also available, offering a sleek, metallic appearance that enhances the natural corrosion resistance of the aluminum. For projects requiring a warmer aesthetic, Wood Grain finishes provide the visual appeal of timber combined with the durability and low maintenance of aluminum.
The application range for these fixed windows is extensive. They are ideal for living rooms where expansive views are desired, commercial buildings requiring large, uninterrupted glazed facades, storefronts that demand high visibility and security, and modern office buildings focused on energy efficiency and natural daylighting. Additionally, their structural integrity and airtight design make them highly suitable for specialized architectural features such as skylights and expansive atriums, where performance and safety are critical.
When evaluating the total cost of ownership and the long-term value of a fenestration system, maintenance requirements play a significant role. Thermal break frames made of high-quality aluminum offer exceptional longevity with minimal upkeep. Unlike wood, which requires regular painting, staining, and sealing to prevent rot and decay, aluminum is virtually maintenance-free. The powder-coated or anodized finishes applied to the DAW Aluminium Fixed Window are highly resistant to fading, chalking, and peeling, ensuring that the frames retain their aesthetic appeal for decades.
The maintenance requirements for the DAW Aluminium Fixed Window are straightforward and primarily focus on the glazing. The system requires only occasional cleaning of the glass surface to maintain optimal clarity and light transmission. Because these are fixed windows without operable sashes, cleaning the exterior surfaces on upper floors or in high-rise applications requires specific approaches. Exterior cleaning in these scenarios typically necessitates the use of a squeegee with an extension pole for accessible areas, or the engagement of professional window cleaning services utilizing specialized access equipment for higher elevations. It is important to note the inherent limitations of this product category: these windows do not open and therefore do not provide any natural ventilation. They must be used in conjunction with operable windows or mechanical ventilation systems to ensure adequate indoor air quality.
The DAW Aluminium Fixed Window represents a pinnacle of modern fenestration engineering, offering an uncompromising blend of structural strength, thermal efficiency, and sleek aesthetics. By utilizing Grade 6063-T5 Thermal Break Aluminum, High-Performance Low-E glass with Argon gas fills, and a permanently glazed, airtight design, this window system delivers superior energy conservation, exceptional sound insulation up to 45 dB, and Level 5+ wind pressure resistance. While limited by its inability to provide ventilation, its slim profile maximizes natural light and forced entry resistance, making it an ideal, low-maintenance solution for high-rise buildings, coastal environments, commercial storefronts, and contemporary residential spaces seeking long-lasting performance and expansive architectural views.
