When architects, builders, and homeowners embark on the journey of designing or renovating a space, one of the most significant decisions they face is selecting the right fenestration systems to connect the indoors with the outdoors. Among the most popular choices in modern architecture is the aluminum sliding door, a system celebrated for its sleek lines, expansive glass areas, and space-saving operation. However, the debate between choosing an aluminum sliding door versus a bifold door is a common one, as both options offer distinct advantages depending on the specific spatial requirements, aesthetic goals, and performance expectations of the project. This comprehensive guide will explore the intricacies of these two door types, with a specific focus on the advanced engineering, verified specifications, and unparalleled performance of the DAW Aluminum Sliding Door.

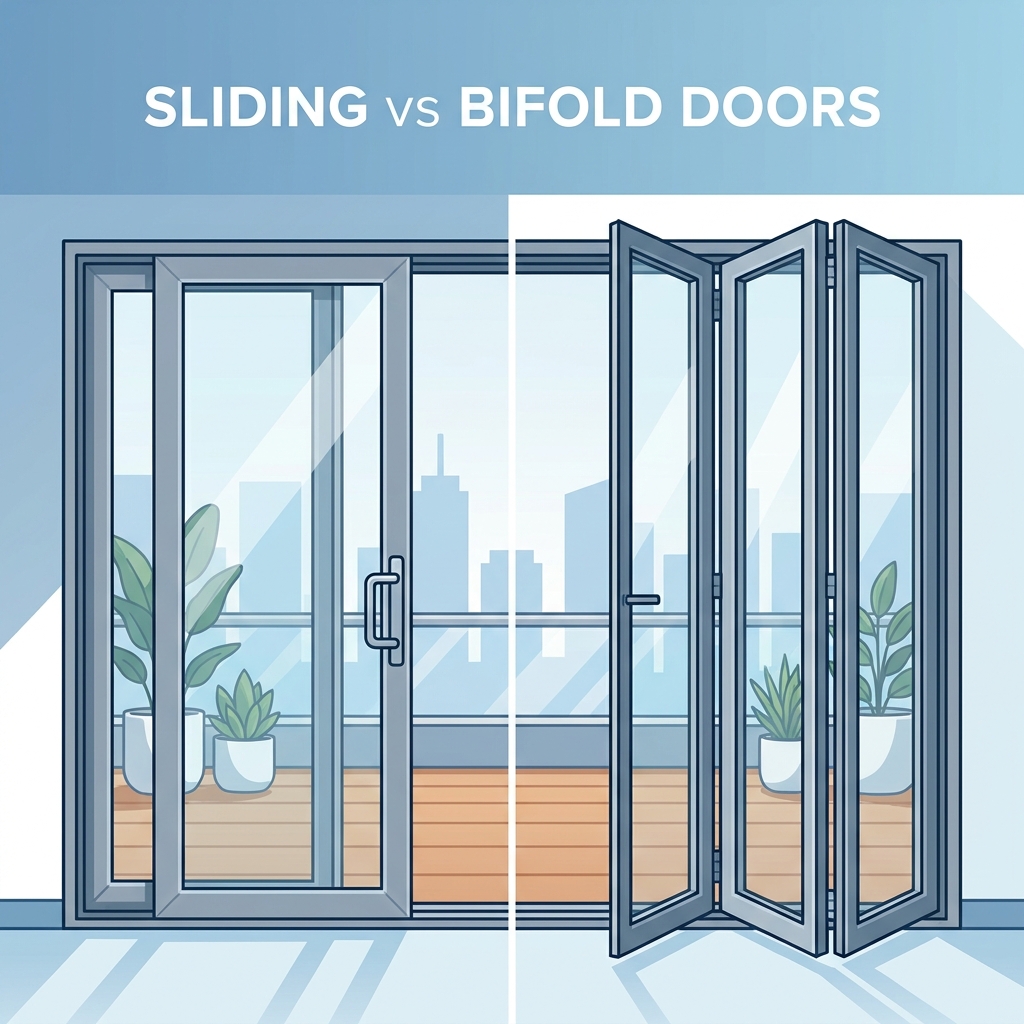

The architectural landscape has evolved significantly over the past few decades, moving towards designs that prioritize natural light, seamless indoor-outdoor transitions, and robust energy efficiency. In this context, the choice of patio doors becomes paramount. While bifold doors are known for their ability to fold away completely and create a wide, unobstructed opening, they require substantial clearance space either inside or outside the room to accommodate the folded panels. In contrast, sliding systems operate on horizontal tracks, meaning they do not encroach on valuable floor space. This fundamental difference in operation makes sliding systems particularly advantageous in areas where space optimization is crucial, such as balconies, compact patios, and high-traffic commercial environments like restaurants and cafes.
To truly understand the comparative advantages of these systems, one must delve into the mechanics, structural requirements, and daily usability of each. Bifold doors operate on a concertina principle, where multiple panels are hinged together and fold against one another as they glide along a top and bottom track. While this creates a stunning visual effect when fully opened, the multiple vertical frames (sightlines) can disrupt the view when the doors are closed. Furthermore, the hardware required to support the folding mechanism is complex and can be sensitive to debris in the tracks or slight structural settling over time.
On the other hand, the aluminum sliding door is engineered for simplicity, durability, and maximum visual clarity. Because the panels slide parallel to one another, they can be manufactured in much larger dimensions than typical bifold panels. For instance, the DAW Aluminum Sliding Door supports maximum panel dimensions of up to 6 feet wide and 12 feet tall. This capability allows for massive expanses of uninterrupted glass, providing panoramic views that bifold doors simply cannot match when closed. The sliding mechanism, particularly when equipped with high-quality hardware like adjustable tandem ball-bearing rollers, ensures smooth, effortless gliding even with heavy, oversized glass panels.
The preference for sliding systems in contemporary design is heavily influenced by the desire for minimalism. The DAW Aluminum Sliding Door exemplifies this with its robust yet slim profile design. Utilizing thermally broken 6060-T66 aluminum profiles, this door system achieves exceptional structural consistency and corrosion resistance. The 6060-T66 alloy is renowned in the architectural industry for its superior strength-to-weight ratio, allowing the frames to support massive insulated glass units without warping, bending, or compromising the smooth operation of the door over its lifespan.
When comparing the structural integrity of sliding systems to bifold systems, the sliding configuration inherently distributes weight more evenly across the bottom track. This is particularly important for high-performance sliding patio doors that incorporate heavy double or triple glazing for energy efficiency and acoustic insulation. The DAW system's frame thickness of 1.4mm provides the necessary rigidity to maintain perfectly square panels, which is critical for ensuring that the weather seals engage correctly and the multi-point locking systems align flawlessly every time the door is closed.
One of the historical criticisms of aluminum fenestration was its high thermal conductivity, which could lead to heat loss in winter and heat gain in summer. However, modern engineering has completely mitigated this issue through the use of thermal break technology. The DAW Aluminum Sliding Door features state-of-the-art thermal barrier technology, incorporating PA66 nylon heat sinks and warm-edge spacers. These components physically separate the interior aluminum profile from the exterior profile, drastically reducing energy transfer.
The PA66 nylon used in these thermal breaks is a highly durable, glass-fiber-reinforced polyamide that matches the thermal expansion coefficient of aluminum. This ensures that as the door is subjected to extreme temperature fluctuations—from scorching summer heat to freezing winter cold—the thermal break remains securely bonded to the aluminum, maintaining the structural integrity and insulating properties of the frame. When combined with the available glazing options, which include 5mm tempered glass, 1-inch dual-pane insulated units, or 5-9A-5 insulated double glazing, the DAW system provides formidable resistance to thermal bridging.
The choice of glass is just as critical as the frame when evaluating the overall performance of aluminum glass doors. The DAW system's ability to accommodate various glazing thicknesses allows architects and homeowners to tailor the door's performance to the specific climate and orientation of the building. The 1-inch dual-pane insulated units and the 5-9A-5 insulated double glazing configurations work in tandem with the warm-edge spacers to prevent condensation and minimize heat transfer. Warm-edge spacers replace traditional highly conductive aluminum spacers between the glass panes with materials that have lower thermal conductivity, further enhancing the edge-of-glass temperature and overall energy efficiency.
This meticulous attention to thermal performance is validated by the system's certifications. The DAW Aluminum Sliding Door is NFRC (National Fenestration Rating Council) and CSA certified. It is important to note that these certifications, along with Florida-approved options for high wind zones, apply to specific optional configurations. These credentials assure builders and homeowners that the product has undergone rigorous independent testing to verify its energy performance metrics, making it a reliable choice for sustainable building projects.
Beyond thermal efficiency, the comfort of an indoor environment is heavily dependent on acoustic insulation and protection from the elements. In urban environments, near busy highways, or in commercial settings like hotels and cafes, noise pollution can significantly degrade the quality of life or the customer experience. The DAW Aluminum Sliding Door excels in this area, boasting the capability to reduce outside noise from a disruptive 85dB down to a whisper-quiet 32dB.
This remarkable acoustic performance is achieved through a combination of the heavy-duty 6060-T66 aluminum profiles, the mass of the insulated glass units, and the precision-engineered sealing systems. The door uses high-quality EPDM (Ethylene Propylene Diene Monomer) or silicone weather seals. These materials are highly resistant to UV radiation, ozone, and extreme temperatures, ensuring they do not become brittle or shrink over time. The seals provide a tight, continuous barrier against drafts, moisture, and sound waves, creating a tranquil indoor sanctuary regardless of the exterior environment.
Security is a paramount concern for any exterior door system. Bifold doors, with their multiple hinge points and folding panels, present unique security challenges that require complex locking mechanisms. Sliding doors, by virtue of their design, offer a more straightforward but highly effective approach to security. The DAW Aluminum Sliding Door utilizes advanced multi-point locking systems that secure the active panel to the frame at several points simultaneously with the turn of a single handle.
Speaking of handles, the system is equipped with premium HOPPE latch handles, known globally for their ergonomic design, durability, and tamper resistance. The combination of the rigid 1.4mm thick aluminum frame, the multi-point locks, and the heavy tempered or insulated glass makes the DAW system exceptionally resistant to forced entry, providing peace of mind for both residential homeowners and commercial property managers.
The architectural versatility of the DAW Aluminum Sliding Door is evident in its wide range of configurations and aesthetic options. Unlike standard off-the-shelf products, these systems can be tailored to fit precise architectural visions. The doors are available in 2, 3, 4-panel, or multi-slide configurations, including operational patterns such as OX (one fixed, one operable), OXO (operable center, fixed sides), and OXXO (two operable center panels parting from the middle, flanked by fixed panels).
This flexibility makes them ideal for custom sliding doors projects where specific egress requirements or visual symmetries must be met. To further integrate the doors into the building's design, DAW offers an extensive array of finishes. Customers can choose from powder-coated finishes that comply with stringent AAMA 2604/2605 standards, ensuring long-lasting color retention and resistance to chalking and fading even in harsh UV environments. Alternatively, anodized finishes are available in Clear, Bronze, Black, and Kynar, providing a durable, metallic aesthetic that penetrates the surface of the aluminum for ultimate scratch resistance.
To maximize the utility of the sliding doors during pleasant weather, a variety of screen options are available to keep insects out while allowing fresh air to circulate. The DAW system offers screens made from fiberglass, fibermesh, aluminum, retractable designs, or heavy-duty 304 stainless steel mesh for added security and pet resistance. Additionally, for those seeking a traditional or transitional aesthetic, the doors can be fitted with between-the-glass grilles. Placing the grilles between the panes of the insulated glass unit not only achieves the desired divided-light look but also allows for much easier cleaning compared to surface-mounted muntins.
The system's compatibility extends beyond the doors themselves. The DAW Aluminum Sliding Door is fully compatible with coordinating sidelight and transom units. This allows architects to design expansive walls of glass that flood interior spaces with natural light, utilizing transoms above the doors to increase the overall height of the glazed area, or sidelights to expand the width, creating a truly monumental entrance or patio connection.
The logistics of transporting and installing large fenestration systems can be challenging. To address this, the DAW Aluminum Sliding Door is available with knockdown (KD) frames for on-site assembly. This is particularly advantageous for projects with difficult access, such as high-rise apartments or properties with narrow entryways, where transporting a fully assembled massive door frame would be impossible. The frames can be specified with or without nailing fins, accommodating both new construction and retrofit installation methods.

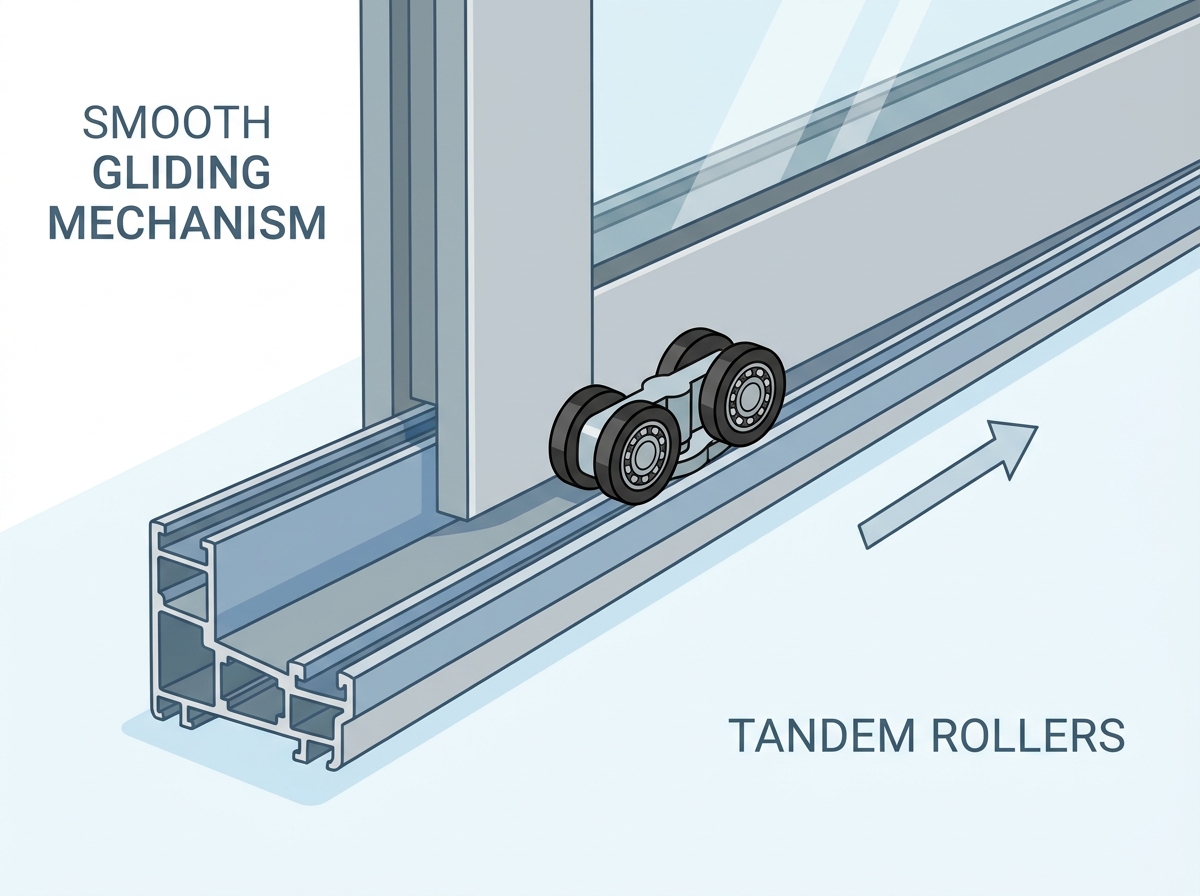

Maintenance of the DAW system is remarkably straightforward. The durable powder-coated or anodized finishes require only periodic cleaning with mild soap and water. The adjustable tandem ball-bearing rollers ensure that the heavy panels continue to glide effortlessly, and the between-the-glass grilles eliminate the tedious task of cleaning individual small panes of glass. The EPDM and silicone weather seals are designed for longevity, requiring minimal upkeep to maintain their weather-tight and acoustic properties.
When investing in premium architectural products, robust warranty and support structures are essential. The DAW Aluminum Sliding Door is backed by a comprehensive 10-year limited warranty that covers all components and glass, demonstrating the manufacturer's confidence in the longevity and reliability of their product. In the event that technical support is required, DAW provides 24/7 remote technical assistance to troubleshoot issues or guide installation processes.
Furthermore, on-site installation services are available in specific regions, such as Australia, ensuring that the doors are fitted perfectly by trained professionals. The product's compliance with international standards is rigorous. In addition to NFRC and CSA certifications for energy performance, the doors are AS2047 certified, which is the mandatory standard for windows and doors in Australia, testing for structural deflection, operating force, air infiltration, and water penetration. The availability of Florida-approved options further underscores the system's ability to withstand severe weather conditions, including high wind zones and potential debris impact.
The versatility, durability, and aesthetic appeal of the DAW Aluminum Sliding Door make it suitable for a vast array of applications. In the residential sector, these doors are the perfect solution for connecting living rooms to patios, enclosing balconies in high-rise apartments, or serving as the primary access point to backyard pool areas. Their ability to accommodate large glass panels maximizes views and natural light, which are highly sought-after features in modern home design.
In the commercial realm, the demands placed on door systems are significantly higher due to increased frequency of use and stricter safety and accessibility codes. The robust 1.4mm frame thickness, the heavy-duty tandem rollers, and the durable AAMA 2604/2605 powder-coated finishes make the DAW system exceptionally well-suited for commercial environments. Hotels utilize these doors to provide guests with luxurious balcony access, while restaurants and cafes use them to seamlessly blend indoor dining spaces with outdoor patios, enhancing the customer experience and maximizing usable floor space during favorable weather.
The acoustic insulation properties (reducing noise from 85dB to 32dB) are particularly beneficial in commercial settings located in bustling urban centers or near airports, allowing businesses to maintain a calm and comfortable interior atmosphere regardless of exterior noise levels. The multi-point locking systems and HOPPE latch handles provide the necessary security to protect commercial assets during non-business hours.
The DAW Aluminum Sliding Door represents a superior architectural solution that seamlessly blends robust structural engineering with elegant design, offering significant advantages in space utilization, thermal efficiency, and acoustic control. With its thermally broken 6060-T66 aluminum profiles, advanced PA66 nylon heat sinks, and capability to reduce noise from 85dB to 32dB, it delivers exceptional comfort and durability for both residential patios and high-traffic commercial environments. Supported by a 10-year limited warranty, versatile configurations up to 6 by 12 feet per panel, and rigorous certifications including NFRC, CSA, and AS2047, this sliding door system provides architects, builders, and property owners with a highly reliable, customizable, and visually stunning fenestration option that outpaces traditional bifold alternatives in practical daily operation and long-term value.
